Overview

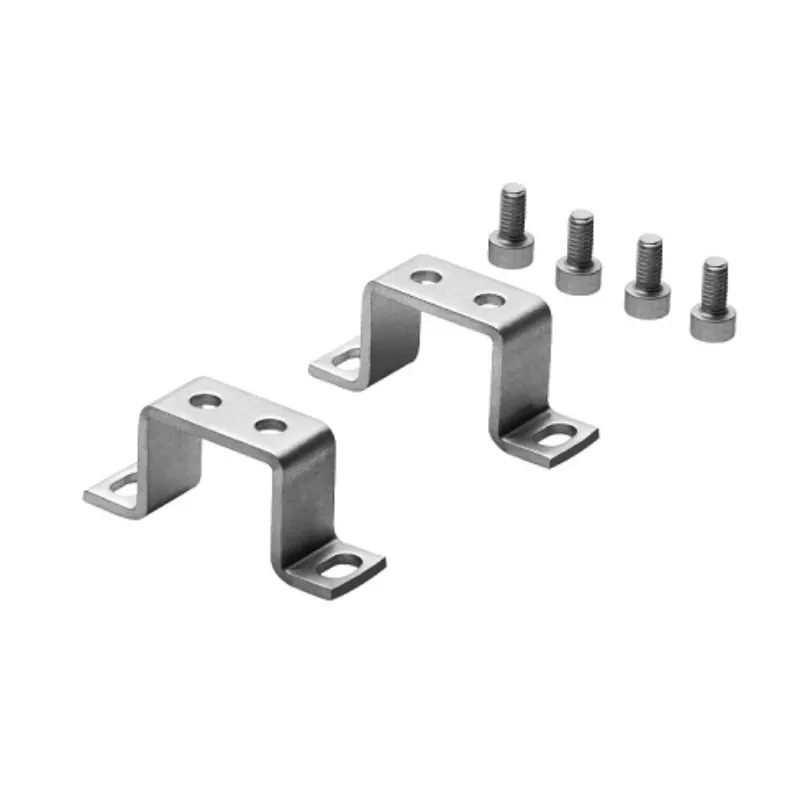

Mounting Brackets ：OHC-MINI OHC-MIDI OHC-MAXI
Dimension
Technical Specifications
| Model | Y30-10-M5 | Y40-4-1/8 | Y40-6-1/8 | Y40-10-1/8 | Y50-4-1/8 | Y50-6-1/8 | Y50-10-1/8 | Y50-6-1/4 | Y50-10-1/4 |
|---|---|---|---|---|---|---|---|---|---|
| Port size RC (PT) | M5 | 1/8 “ | 1/8 “ | 1/8 “ | 1/8 “ | 1/8 “ | 1/8 “ | 1/4 “ | 1/4 “ |
| Max.pressure | 1.0Mpa (10kgf/cm²) |
0.4Mpa (4kgf/cm²) |
0.6Mpa (6kgf/cm²) |
1.0Mpa (10kgf/cm²) |
0.4Mpa (4kgf/cm²) |
0.6Mpa (6kgf/cm²) |
1.0Mpa (10kgf/cm²) |
0.6Mpa (6kgf/cm²) |
1.0Mpa (10kgf/cm²) |
| Gauge panel dia.(mm) | 30 | 40 | 50 | ||||||
| Applicable model | AW1000 AR1000 |
AR2000/2500/3000 AW2000/3000 AFR1500/2000 AR1500/2000 |
SFR200/300/400 QTY-08/10/15,20,25 |
AR4000/5000 AW4000/5000 BR2000/3000/4000 BFR2000/4000 QTY-20/25/40/50 |
|||||
For more information, customization options, or to place an order, please contact our sales team. We’re here to help you find the perfect parts for your specific pneumatic system requirements.
