Overview

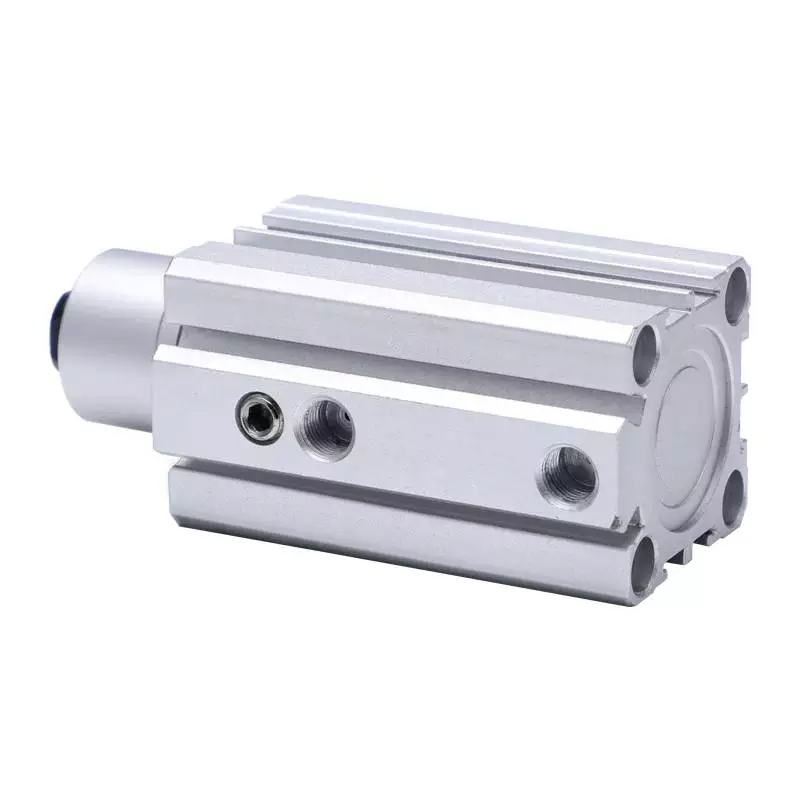

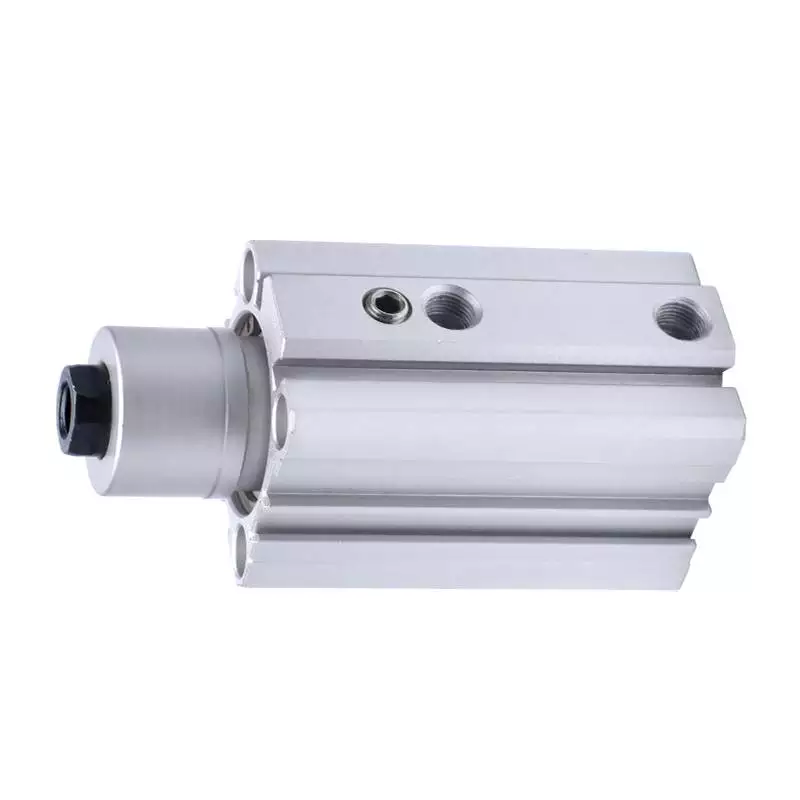

The Hered MK Series Rotary Clamp Cylinder is a versatile pneumatic actuator designed for precise rotational and linear clamping operations. Available in standard (MK) and heavy-duty (MK2) types, this series offers a range of bore sizes from 12mm to 63mm, catering to various industrial applications.
Key Features
- Double-acting operation for enhanced control
- 90° ±10° rotary angle with bi-directional rotation
- Bore sizes ranging from 12mm to 63mm
- Theoretical clamp force from 40N to 1400N at 0.5 MPa
- Non-lube design for reduced maintenance
- CE certified for quality assurance
Technical Specifications
| Parameter | Specification |
|---|---|
| Bore Sizes | 12, 16, 20, 25, 32, 40, 50, 63mm |
| Action | Double acting |
| Operating Pressure | 0.1 to 1.0 MPa |
| Temperature Range | -10°C to +70°C (No freezing) |
| Piston Speed | 50 to 200 mm/s |
| Lubrication | Non-lube |
Applications
The Hered MK Series Rotary Clamp Cylinder is ideal for:
- Automated assembly lines
- Material handling systems
- Robotic arm manipulation
- Packaging machinery
- Industrial clamping and positioning tasks
Installation Guidelines
- Install the cylinder vertically; horizontal use is not recommended (Use MK2T Series for horizontal applications)
- Avoid working in the direction of rotation, including clamping and limiting devices
- Perform clamping only within the designated clamping stroke (linear stroke)
- Ensure the clamping surface of the workpiece is perpendicular to the cylinder axis
Model Selection
Choose between standard (MK) and heavy-duty (MK2) types based on your rotational inertia requirements. The MK2 series offers greater rotational inertia capacity for bore sizes φ20~φ63.
For detailed dimensions, mounting options, and ordering information, please refer to the product documentation or contact our technical support team.
