Overview

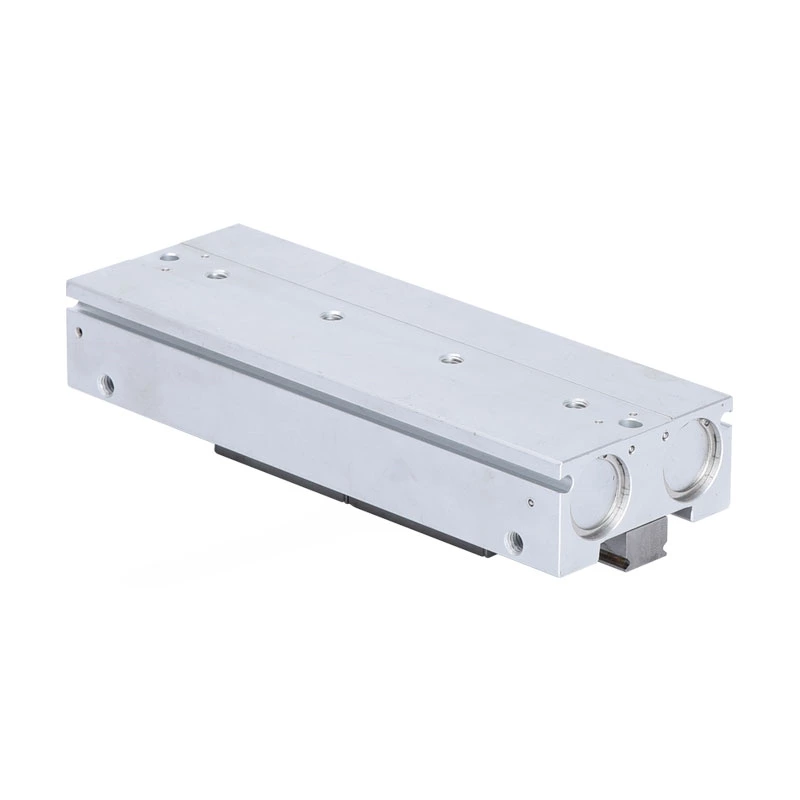

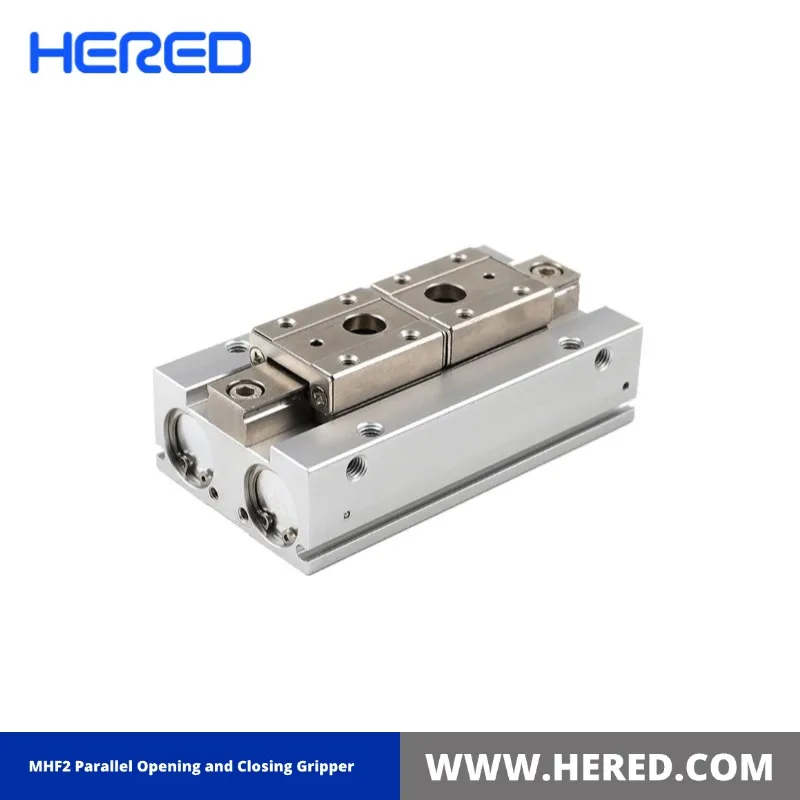

The Hered MHF2 Parallel Opening and Closing Gripper is a high-performance pneumatic actuator designed for precise gripping operations in compact automation systems. This gripper features a low-profile design and parallel motion, making it ideal for applications requiring consistent and reliable workpiece handling.
Key Features
- Parallel gripping motion for consistent workpiece handling
- Low-profile design to reduce moment generation
- Available bore sizes: 8, 12, 16, 20mm
- Short, medium, and long stroke options
- Double-acting operation
- Strong gripping force with double piston mechanism
- Compatible with various auto switch options
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Medium | Air |
| Operating Pressure | 0.1 to 0.7 MPa (varies by bore size) |
| Temperature Range | -10°C to +60°C (no condensation) |
| Repeatability | ±0.05mm (without offset load) |
| Maximum Operating Frequency | 60-120 c.p.m. (stroke dependent) |
| Lubrication | Non-lube |
Applications
Ideal for use in:
- Pick and place operations
- Assembly automation
- Material handling systems
- Robotics
- Packaging machinery
- Small parts handling
Gripping Force and Stroke
Gripping force ranges from 19N to 141N per finger at 0.5 MPa, depending on the bore size. Stroke options vary from 8mm to 80mm (both sides), accommodating a wide range of workpiece sizes.
Construction and Options
- Durable components: Aluminum alloy body, stainless steel fingers and guides
- Available with various seal materials for different environments
- Optional heat-resistant models (up to 100°C)
- Auto switch compatibility for position detection
Ordering Information
When ordering, specify the model code indicating the series, bore size, stroke length, and any additional options. Refer to the ordering code chart for detailed configuration options.
For detailed specifications, dimensions, and customization options, please consult our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable MHF2 Parallel Gripper configuration for your specific application needs, ensuring optimal performance in your automation processes.
