MGPM Three Shaft Air Cylinder

Hered MGPM Series Three Shaft Air Cylinder: Compact guided pneumatic actuators for high precision and load capacity. Features integrated internal guide shafts for enhanced performance and stability. Available in bore sizes 20mm to 100mm. Offers increased bearing length with stroke for high side-load applications. Double-acting with non-lubricated operation for maintenance-free use. Operates at 0.15-1.0MPa pressure and -10°C to 60°C temperature range. Ideal for industrial automation, material handling, medical equipment, and advanced home appliances. Provides rubber bumper cushioning on both ends for reduced wear. Choose Hered MGPM Series for reliable, high-precision pneumatic actuation in space-constrained, high-load environments. Contact Hered Pneumatic for expert guidance on selecting the optimal three-shaft air cylinder for your specific requirements and seamless integration into your precision industrial processes.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

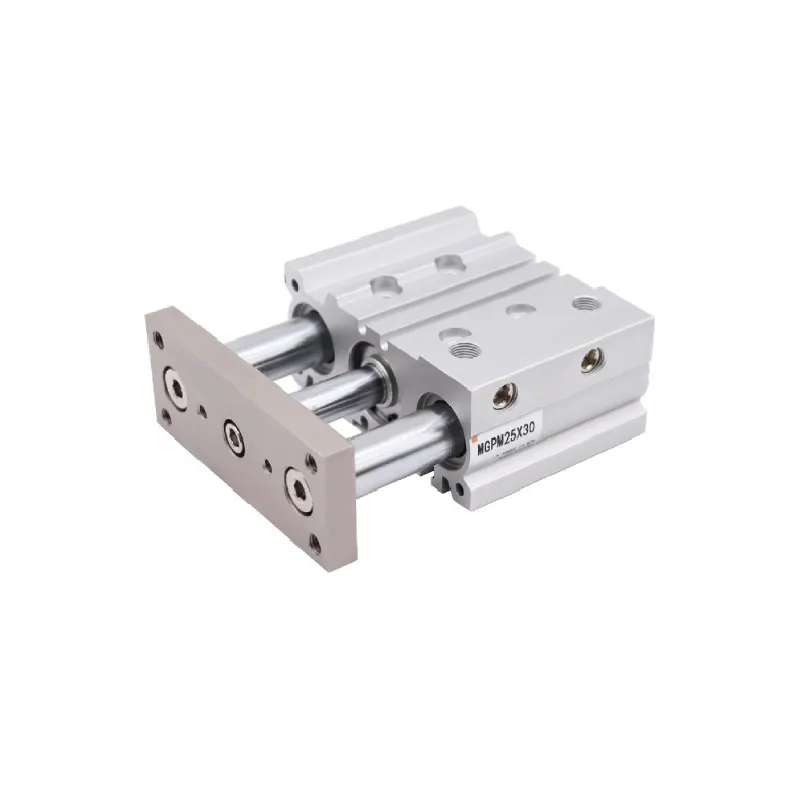

Hered MGPM Series Three Shaft Air Cylinder

The Hered MGPM Series Three Shaft Air Cylinder is a compact guided pneumatic actuator designed for applications requiring high precision and load capacity. This cylinder integrates internal guide shafts that isolate the load-bearing components from the movement of the actuator’s rod and seals, enhancing its performance in various industrial tasks.

Key Features

  • Compact Design: Ultra-compact structure with the cylinder body serving as the guide body, optimizing space and efficiency.
  • High Load Capacity: Increased bearing length with stroke length, enhancing load-bearing capacity for high-side load applications.
  • Double Acting: Operates in both directions for versatile applications.
  • Wide Range of Bore Sizes: Available from 20 mm to 100 mm to accommodate various operational requirements.
  • Non-lubricated Operation: Designed for maintenance-free operation without lubrication.
  • Cushioned Operation: Features rubber bumpers on both ends to absorb shock and reduce wear.

Specifications

Bore size [mm] 20 25 32 40 50 63 80 100
Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.15 MPa *1
Ambient and fluid temperature -10 to 60°C (No freezing)
Piston speed *2 50 to 500 mm/s 50 to 400 mm/s
Cushion Rubber bumper on both ends
Lubrication Not required (Non-lube)
Stroke length tolerance +1.5 +0mm

*1: 0.1 MPa except the lock unit.
*2: Maximum speed with no load. Depending on the operating conditions, the piston speed may not be satisfied.

Applications

The Hered MGPM Series Three Shaft Air Cylinder is ideal for applications in:

  • Industrial Automation: Precise position control in automated production lines.
  • Material Handling: Efficient movement in logistics and transportation systems.
  • Medical Equipment: Controlled movement in hospital beds, operating tables, and other medical devices.
  • Home Appliances: Automated operations in advanced household equipment.

The MGPM Series excels in scenarios requiring precision, stability, and high load capacity, making it a versatile solution for various industrial and specialized applications.

Contact us for product catalogs, technical specifications, quotations, and more information.
