Overview:

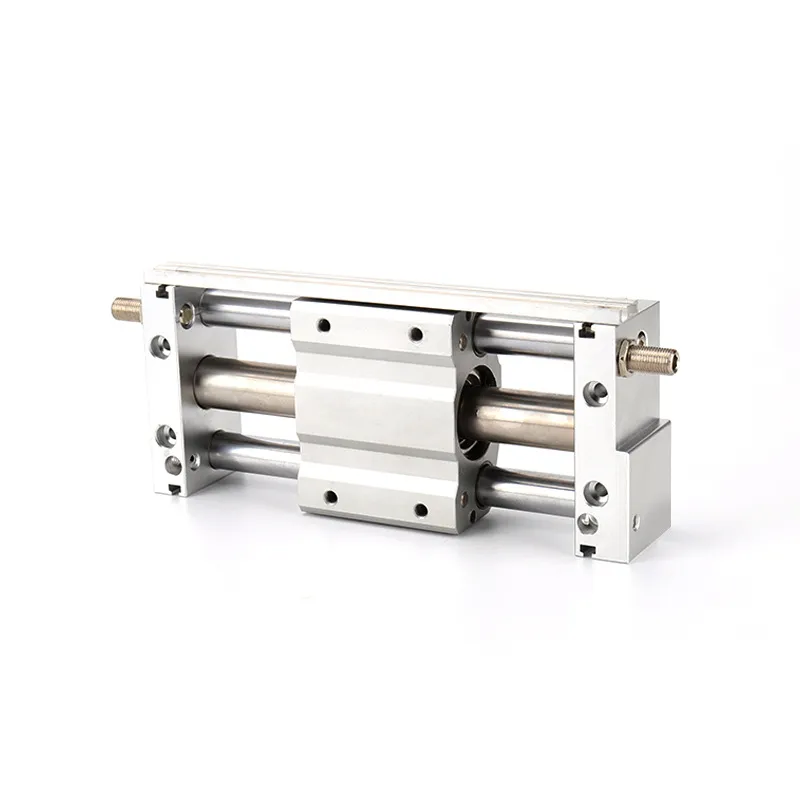

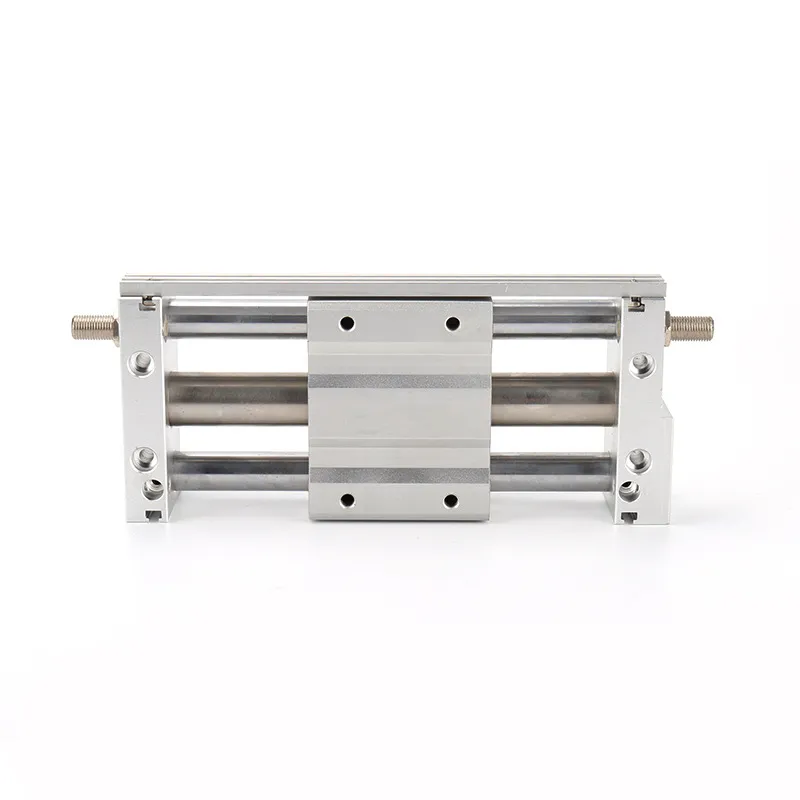

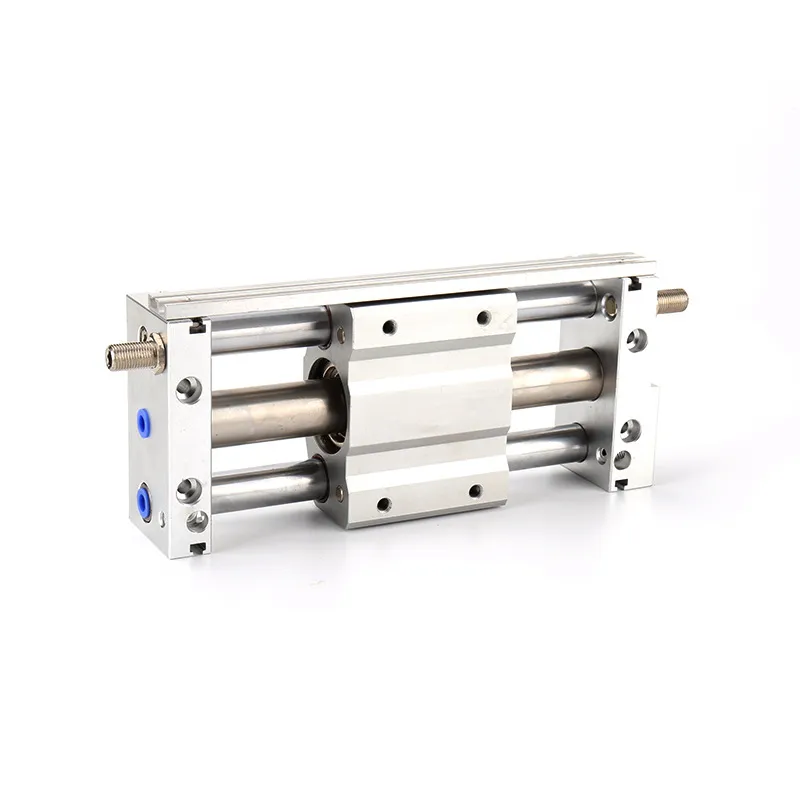

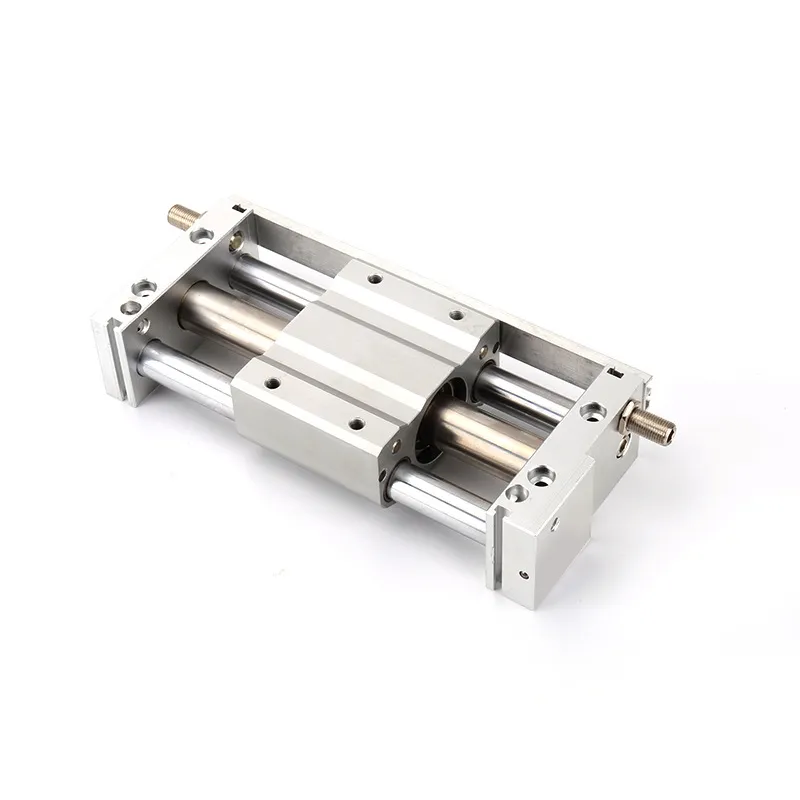

The CY1S series is a high-performance magnetically coupled rodless cylinder featuring a slide bearing design. This versatile cylinder offers a compact solution for linear motion applications with various customization options.
Key Features
- Available bore sizes: 6, 10, 15, 20, 25, 32, 40 mm
- Magnetic coupling between piston and slider
- Slide bearing type for smooth operation
- Multiple piping options: bilateral or centralized
- Various stopper options: bumper bolt, adjustment bolt, or shock absorber
- Compatible with a wide range of auto switches
- Customizable stroke lengths
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Proof pressure | 1.05 MPa |
| Maximum operating pressure | 0.7 MPa |
| Minimum operating pressure | 0.18 MPa |
| Temperature range | -10 to 60°C (No freezing) |
| Piston speed | 50 to 400 mm/s |
| Cushion | Rubber bumper/Shock absorber |
| Lubrication | Non-lube |
Magnetic Holding Force
| Bore Size (mm) | Magnetic Holding Force (N) |
|---|---|
| 6 | 19.6 |
| 10 | 53.9 |
| 15 | 137 |
| 20 | 231 |
| 25 | 363 |
| 32 | 588 |
| 40 | 922 |
Standard Strokes and Customization
Standard strokes are available for each bore size, with maximum manufacturable strokes ranging from 300 mm to 1500 mm depending on the bore size. Intermediate strokes are available in 1 mm intervals upon order.
Auto Switch Options
A wide range of auto switches are compatible with the CY1S series, including 3-wire NPN/PNP, 2-wire, and various special function switches. Water-resistant and diagnostic indication options are also available.
Made to Order Options
- Low speed (15 to 50 mm/s) and ultra-low speed (7 to 50 mm/s) versions
- Air-hydro type
- Helical insert thread
- Non-lubricated exterior (with or without dust seal)
- Hard chrome plated cylinder tube exterior
- Switch rails on both sides
- Mounting surface tapped hole type
Shock Absorber Specifications
Various shock absorber models are available for different cylinder sizes, offering maximum absorbed energy ranging from 0.5 J to 30 J and maximum operating frequencies from 25 to 80 cycles/min.
Applications
The CY1S series is suitable for a wide range of applications, including:
- Automated assembly lines
- Material handling systems
- Packaging machinery
- Pick and place operations
- Linear positioning in space-constrained environments
For detailed specifications, installation instructions, and customization options, please consult our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable CY1S Series Magnetically Coupled Rodless Cylinder configuration for your specific application needs.
