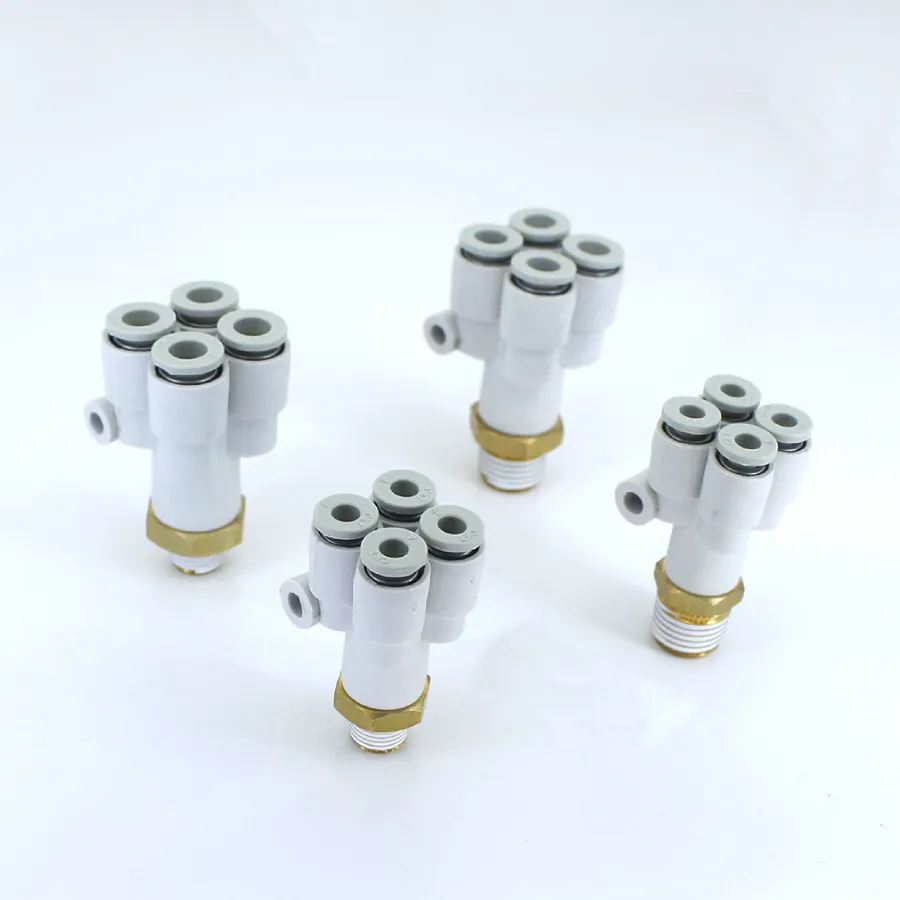

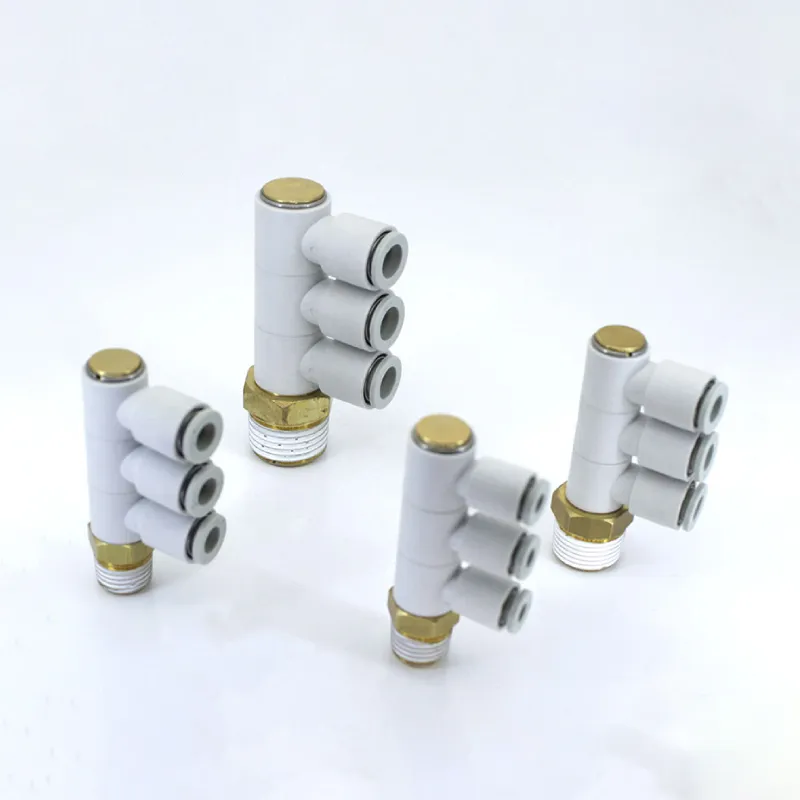

KQ2 Series Metric Size One-touch Fittings
Hered Pneumatic Co., LTD.’s KQ2 Series offers versatile, metric-sized one-touch fittings designed for efficient and reliable pneumatic connections. These fittings are compatible with metric tubing and feature M, R, and Rc connection threads, providing a wide range of application possibilities.
Key Features
- One-touch IN/OUT connection for quick and easy installation
- Suitable for use with nylon and urethane tubing
- Chuck design provides secure retention and increased holding force
- Release button requires little force for easy tube removal
- Wide pressure range capability, from vacuum to 1 MPa
- Body part rotates for flexible positioning in confined spaces
- Copper-free specification available with all-resin body material
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Tubing | FEP, PFA, Nylon, Soft nylon, Polyurethane |
| Tubing O.D. | ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16 |
| Fluid | Air/Water (Note 1) |
| Operating Pressure Range | -100 kPa to 1 MPa |
| Proof Pressure | 3 MPa |
| Ambient and Fluid Temperature | -5 to 60°C (Water: 0 to 40°C) |
Principal Parts Material
- Body: C3604 (Brass), PBT, PP, Stainless steel 303
- Seal, O-ring: NBR
- Release Button: POM
- Guide: Stainless steel 304
Applications
- Pneumatic control systems
- Industrial automation
- Fluid handling in various industries
- Vacuum applications up to -100 kPa
Hered Pneumatic Co., LTD.’s KQ2 Series One-touch Fittings offer a reliable and versatile solution for your pneumatic connection needs. With their easy installation, secure retention, and wide range of compatibility, these fittings are ideal for various industrial applications.
For more information or to place an order, please contact our sales team. We’re here to help you find the perfect KQ2 Series fitting for your specific requirements.
