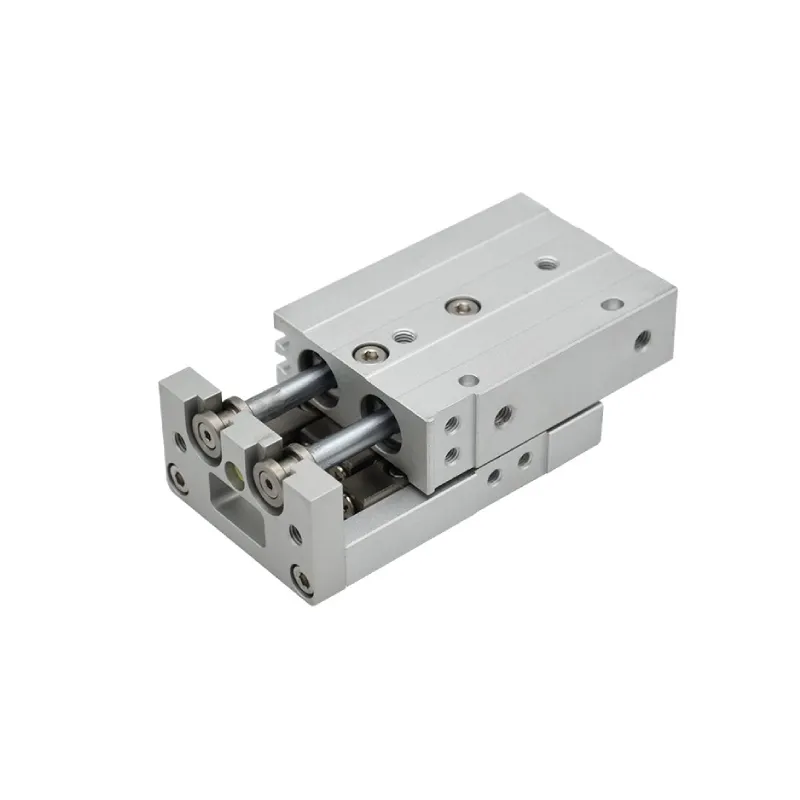

Hered HLS Series Slide Table Cylinder

The Hered HLS Series Slide Table Cylinder is a high-precision, compact pneumatic actuator designed for applications requiring exceptional accuracy and substantial load capacity. Its integrated cross roller guide and cylinder design offers high strength, precision, and load-bearing characteristics, making it ideal for precision assembly and automation tasks.

Key Features

  • Integrated Design: Cross roller guide and cylinder combination for superior strength and precision.
  • High Accuracy: Excellent straightness and non-rotating accuracy for precision applications.
  • Positioning Features: Guide rail and body equipped with positioning pin holes for enhanced repeatability.
  • Floating Joint: Piston rod designed with a floating joint to avoid extra load torque.
  • Double Output: Dual piston rod design for increased force output.
  • Flexible Mounting: Mounting holes on bottom and end surfaces for versatile installation options.
  • Double Acting: Operates in both directions for versatile automation applications.
  • Multiple Sizes: Available in bore sizes from 6mm to 25mm with various stroke lengths.
  • Sensor Compatibility: Designed for use with magnetic switches for easy automation integration.

Specifications

Bore size(mm) 6 8 12 16 20 25
Acting type Double acting
Fluid Air(to be filtered by 40μm filter element)
Operating pressure 0.2-0.7MPa(29~100psi)(20-7.0bar) 0.15~0.7MPa(22~100psi)(1.5~7.0bar)
Proof pressure 1.2MPa(175psi)(12.0bar)
Temperature℃ -20~70
Speed range mm/s 50~500
Stroke tolerance Stroke≤100+1.0 0 Stroke>100+1.5 0
Cushion type Bumper(Both ends),Shock absorber
Sensor switches CMSH,DMSH,EMSH
Port size [Note1] M5x0.8 PT1/8

[Note] PT thread, G thread, NPT thread are available.

Stroke

Bore size (mm) Standard stroke(mm) Max.std stroke
10 10 20 30 40 50 60 70 80 90 100 100
16 10 20 30 40 50 60 70 80 90 100 125 150 175 200 200
20 10 20 30 40 50 60 70 80 90 100 125 150 175 200 200
25 10 20 30 40 50 60 70 80 90 100 125 150 175 200 200
32 10 20 30 40 50 60 70 80 90 100 125 150 175 200 200

[Note] Consult us for non-standard stroke.

The Hered HLS Series Slide Table Cylinder is the perfect solution for applications demanding high precision, stability, and load capacity in a compact form factor. Its versatile design and range of options make it suitable for various industrial automation and precision assembly tasks.
