Product Overview

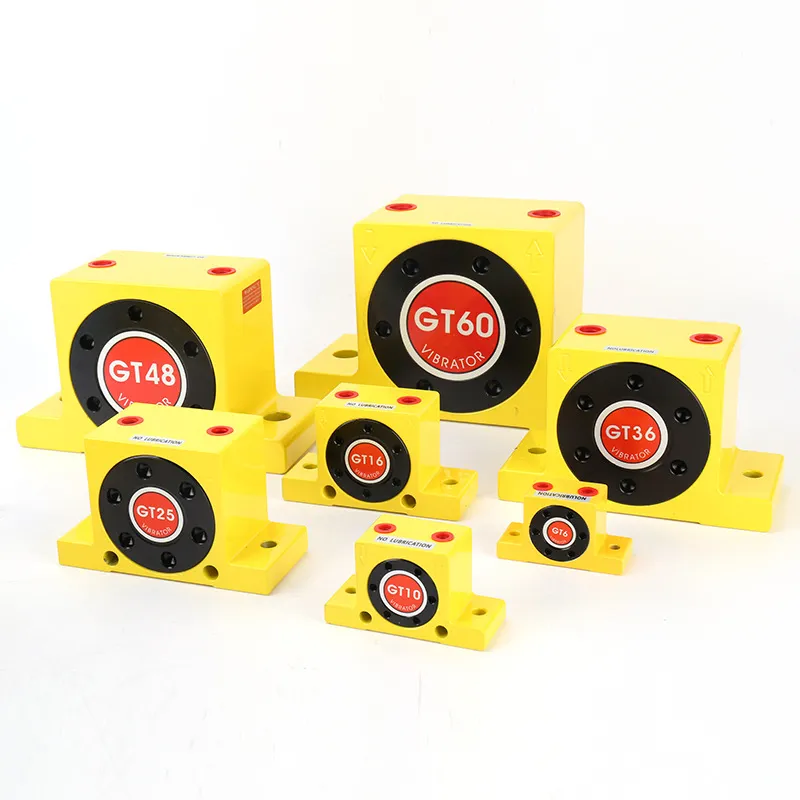

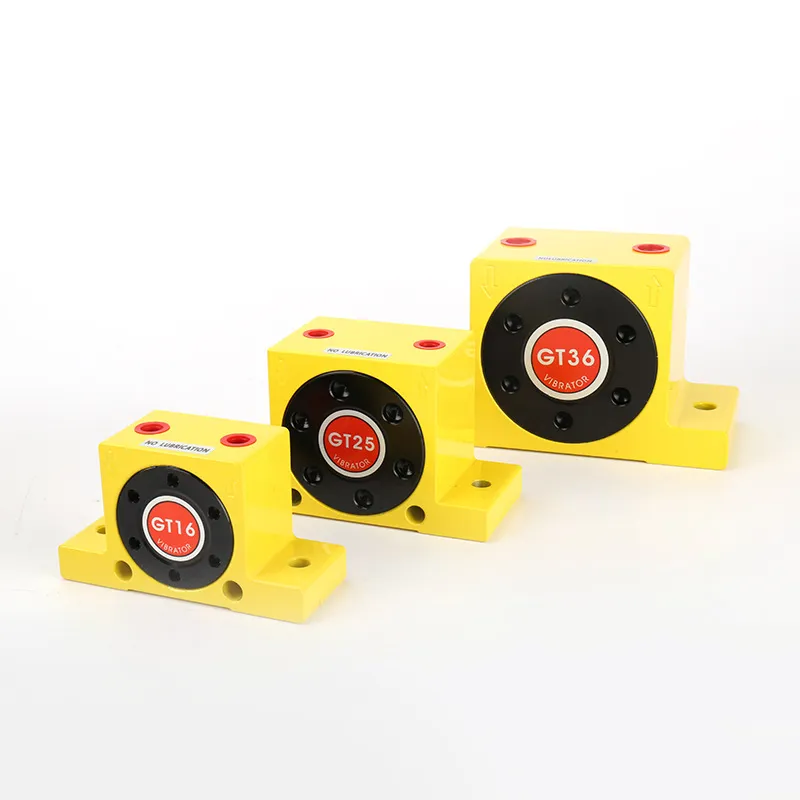

The Hered GT Series Pneumatic Turbine Vibrator is a high-performance, low-noise vibration solution designed for various industrial applications. Featuring Japanese NSK bearings and innovative gear turbine technology, this series offers powerful vibration force with minimal maintenance requirements.
Key Features
- Premium Components: Utilizes NSK bearings imported from Japan for superior durability and performance.
- Low Maintenance: Requires no lubrication, only clean air for operation.
- High Temperature Tolerance: Operates efficiently at temperatures up to 120°C (250°F).
- Quiet Operation: Noise level ranges from 60 to 75 dBA, ensuring a quieter work environment.
- Powerful Vibration: Combines high-speed processing with eccentric torque for strong vibration force.
- Food-Grade Construction: Body made from extruded stove enamelled aluminium with hard-coated end plates, suitable for food and pharmaceutical industries.
- Regulatory Compliance: Conforms to current international noise regulations under factory test conditions.
Technical Specifications
Model | Frequency (VPM x 1000) at 6 Bar | Max Centrifugal Force (N) at 6 Bar | Air Consumption (L/min) at 6 Bar |
---|---|---|---|
GT-8 | 46 | 2910 | 112 |
GT-10 | 37.5 | 2400 | 112 |
GT-13 | 33 | 3730 | 290 |
GT-16 | 24 | 3160 | 290 |
GT-20 | 23 | 5520 | 455 |
Dimension
Type | A | B | C | D | E | F | G | P/O | Weight(g) |
---|---|---|---|---|---|---|---|---|---|
GT-4 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
GT-6 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
GT-8 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
GT-10 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
GT-13 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
GT-16 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
GT-20 | 104 | 80 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
GT-25 | 104 | 80 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
GT-32 | 130 | 100 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
GT-36 | 130 | 100 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
GT-40 | 152 | 120 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
GT-48 | 152 | 120 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
GT-60 | 195 | 140 | 96 | 21 | 30 | 95 | 240 | 1/2 | 5590 |
Applications
The GT Series vibrators are ideal for:
- Food processing industry
- Pharmaceutical manufacturing
- Handling fine, dry powders
- Ingredient bins and weigh hoppers
- Light-duty vibrating tables
- Transfer pipes
- Any application requiring high-frequency vibration
Advantages
- Versatile Performance: Adjustable force and frequency to suit various applications.
- Energy Efficient: Reduced air consumption compared to other pneumatic vibrators.
- Long Lifespan: Durable construction with high-quality bearings ensures extended operational life.
- Easy Maintenance: Self-locking endplates and easily replaceable bearings simplify maintenance.
- Hygienic Design: Suitable for use in sanitary environments like food and pharmaceutical industries.
Installation and Operation Tips
- Ensure a clean, dry air supply for optimal performance and longevity.
- Select the appropriate model based on your specific application requirements.
- Follow manufacturer guidelines for proper mounting and air pressure settings.
- Regularly inspect and maintain the vibrator to ensure consistent performance.
- Consider the noise level and operating temperature when planning installation.
The Hered GT Series Pneumatic Turbine Vibrator represents a significant advancement in industrial vibration technology. Its combination of high performance, low noise, and minimal maintenance requirements makes it an ideal choice for a wide range of industrial applications, particularly in environments where cleanliness and reliability are paramount.
