Product Overview

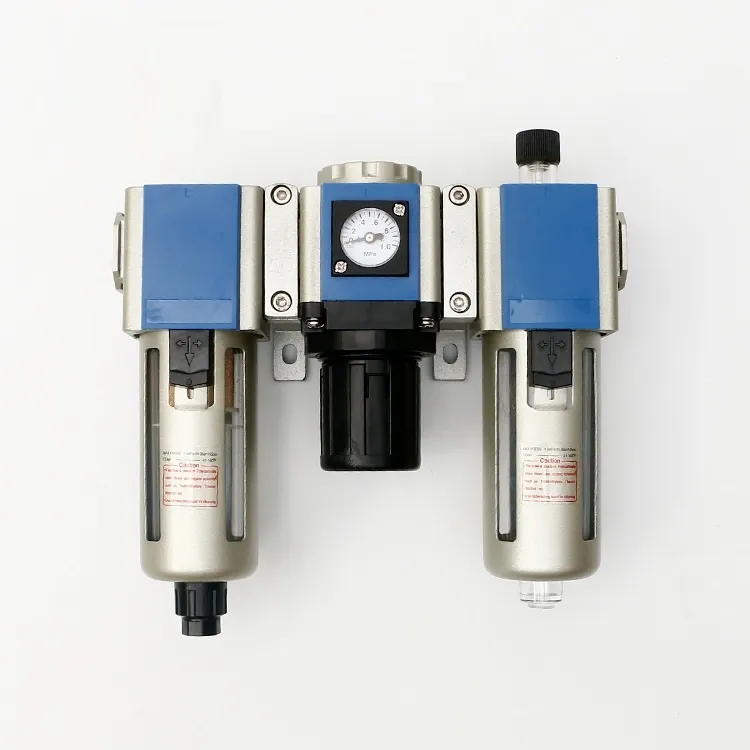

The Hered GC3000 Air Source Treatment FRL (Filter, Regulator, Lubricator) unit is an advanced pneumatic device designed to enhance the quality of compressed air in industrial applications. This comprehensive unit combines filtering, regulating, and lubricating functions to optimize the performance and longevity of pneumatic equipment.
Order code
Specification
| Model | GC200-06 | GC200-08 | GC300-08 | GC300-10 | GC300-15 | GC400-10 | GC400-15 | GC600-20 | GC600-25 | |
| Fluid | Air | |||||||||
| Port size | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/8″ | 1/2″ | 3/4″ | 1″ | |
| Filtering grade | 40μm or 5μm | |||||||||
| Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi);Manual drain:0.05~0.9MPa(7~130psi) | |||||||||
| Max. pressure | 1.0MPa(145psi) | |||||||||
| Proof pressure | 1.5MPa(215psi) | |||||||||
| Temperature range | -20~70℃ | |||||||||
| Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | ||||||
| Capacity of bowl | 25CC | 75CC | 160CC | 380CC | ||||||
| Recommended lubricant | ISO VG 32 or equivalent | |||||||||
| Weight | 580g | 1300g | 2360g | 5550g | ||||||
| Constitute | Filter | GF200-06 | GF200-08 | GF300-08 | GF300-10 | GF300-15 | GF400-10 | GF400-15 | GF600-20 | GF600-25 |
| Regulator | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | GR400-10 | GR400-15 | GR600-20 | GR600-25 | |
| Lubricator | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | GL400-10 | GL400-15 | GL600-20 | GL600-25 | |
Key Features
- Integrated Components: Combines air filter, pressure regulator, and lubricator in one compact unit.
- Working Media: Designed for compressed air systems.
- Pressure Range: 0.05 to 0.85 MPa
- Max Proof Pressure: 1.5 MPa
- Water Cup Capacity: Varies by model (e.g., 10ml, 40ml, 80ml)
- Oil Cup Capacity: Options of 25ml, 75ml, or 160ml
- Filter Precision: Standard 40 μm, with 5 μm option available
- Construction: Aluminum alloy body with polycarbonate (PC) cup
- Temperature Range: -20°C to 70°C
Dimension
| Model | A | B | BA | C | K | KA | KB | P | PA | PB | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GC-200 | 147 | 62 | 30 | 133 | 5.5 | 50 | 8.4 | G1/4 | 25 | 93 | G1/8 |
| GC-300 | 248 | 89 | 50 | 216 | 8.6 | 64 | 12 | G3/8 | 40 | 166.5 | G1/4 |
| GC-400 | 248 | 89 | 50 | 216 | 8.6 | 84 | 12 | G1/2 | 40 | 166.5 | G1/4 |
Functionality
- Filtration: Removes contaminants from the compressed air supply.
- Pressure Regulation: Maintains consistent pressure levels for optimal equipment performance.
- Lubrication: Adds oil to the air supply, ensuring smooth operation of pneumatic tools.
Applications
The Hered GC3000 FRL unit is ideal for various industrial settings, including:
- Manufacturing facilities
- Assembly lines
- Pneumatic tool operations
- Automotive industry
- Aerospace applications
- Food and beverage processing
Benefits
- Enhances the quality and reliability of compressed air systems
- Reduces wear and tear on pneumatic equipment
- Improves operational efficiency
- Extends the lifespan of pneumatic tools and machinery
- Ensures consistent performance in various industrial environments
- Compact design for easy integration into existing systems
Customization Options
Hered offers customization options to meet specific industrial needs:
- Various cup capacities for different application requirements
- Optional finer filtration (5 μm) for more demanding applications
- Adaptable to different pressure and flow rate requirements
The Hered GC3000 Air Source Treatment FRL unit is a crucial component for maintaining high-quality compressed air in industrial settings. Its robust design, versatile functionality, and customization options make it an ideal choice for businesses looking to optimize their pneumatic systems and improve overall operational efficiency.
