Overview

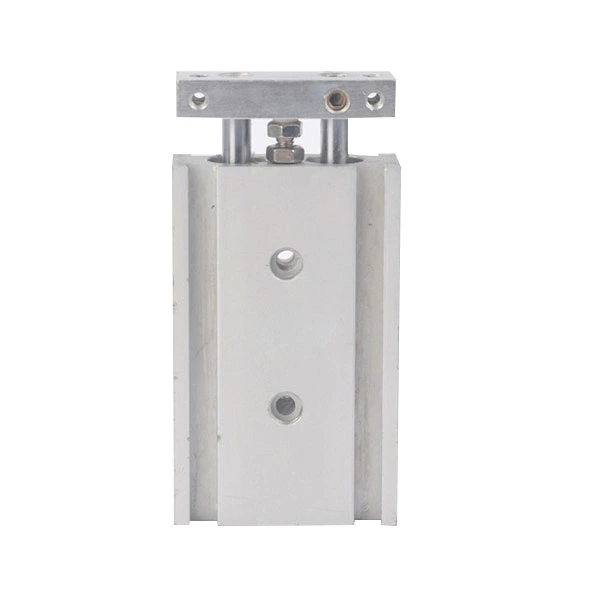

The Hered CXS Dual Rod Cylinders are high-precision pneumatic actuators designed for applications requiring enhanced stability, accuracy, and force output. These cylinders feature a unique double rod construction, offering superior performance in compact automation systems.
Key Features
- Double-acting operation with dual piston rods
- Available bore sizes: 6, 10, 15, 20, 25, 32mm
- High non-rotation accuracy of ±0.1°
- Double output force compared to single rod cylinders
- Strong resistance to side loads
- Four-directional mounting options
- Adjustable air supply port positions
- Built-in stroke adjustment capability
- Magnetic attachment as standard
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Medium | Air |
| Operating Pressure | 0.05 to 0.7 MPa (varies by bore size) |
| Temperature Range | -10°C to +60°C (No Freezing) |
| Piston Speed | 30 to 800 mm/s (varies by bore size) |
| Lubrication | Non-lube |
| Cushioning | Rubber bumper on both ends |
| Stroke Adjustment | Retraction stroke 0 to -5mm |
Applications
Ideal for use in:
- Precision positioning systems
- Pick and place operations
- Compact automation equipment
- Material handling systems
- Assembly machinery
- Applications requiring high accuracy and force output
Ordering Information
When ordering, specify the model code indicating the series, bore size, stroke length, and any additional options. Refer to the ordering code chart for detailed configuration options.
Construction and Options
- Available with sliding bearings or ball bearings for different performance requirements
- Multiple port sizes and mounting options for versatile integration
- Compact design for space-constrained applications
For detailed specifications, dimensions, and customization options, please refer to our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable CXS Dual Rod Cylinder configuration for your specific application needs.
