Overview

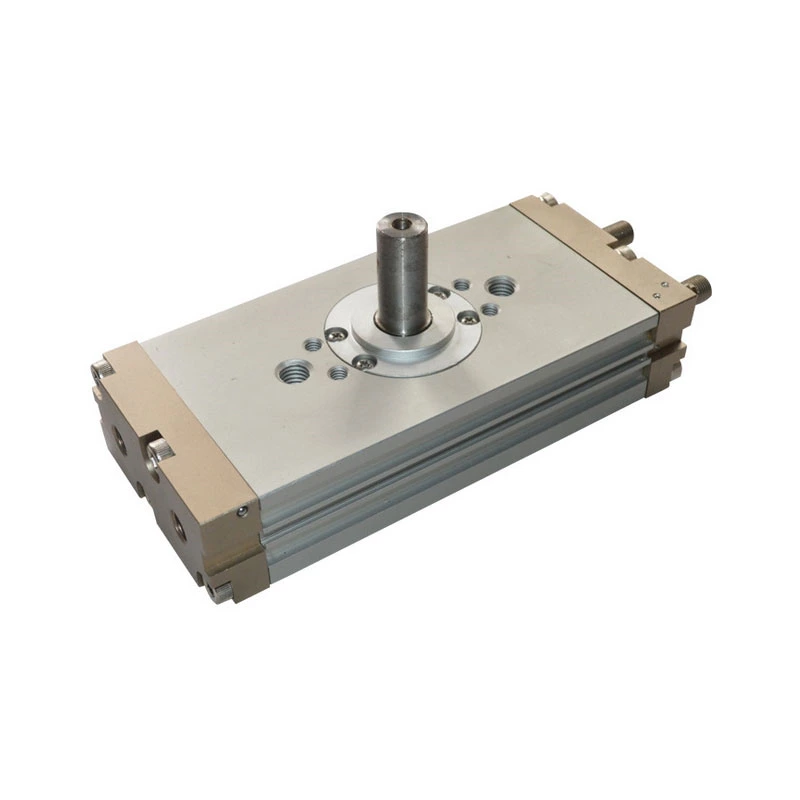

The Hered CRQ2 Series is a compact, high-performance rack-and-pinion style pneumatic rotary actuator designed for precise rotational control in industrial automation applications. This versatile actuator combines a space-saving design with powerful torque output, making it ideal for a wide range of motion control tasks.
Key Features
- Available in single and double shaft configurations
- Bore sizes ranging from 10mm to 40mm
- Internal cushioning for smooth and accurate positioning
- Adjustable rotation angle for customized operation
- High torque-to-size ratio in a compact package
- Designed for industrial automation and control applications
Technical Specifications
| Bore(mm) | 10 | 15 | 20 | 30 | 40 |
|---|---|---|---|---|---|
| Working Medium | Air(to be filtered by 40μm filter element) | ||||
| Action Type | Double-acting | ||||
| Operating Pressure Range(Mpa) | 0.15~0.7 | 0.1~1.0 | |||
| Environment and Fluid Temperature | 0~60°C | ||||
| Cushion Type | Rubber cushion | None/air cushion(optional) | |||
| Rotating Angle | 80°~100°, 170°~190° | ||||
| Adjustable Angle Range | ±5° | ||||
| Output Torque N | 0.3 | 0.75 | 1.8 | 3.1 | 5.3 |
| Allowable Kinetic Energy | – | – | 0.025 | 0.048 | 0.081 |
| 0.25×10³ | 0.39×10³ | – | – | – | |
| – | – | 0.12 | 0.25 | 0.40 | |
| Rotating Time Range(Sec/90°) | 0.2~0.7 | 0.2~1.0 | |||
Applications
The Hered CRQ2 Series is well-suited for various industrial applications, including:
- Robotic arm rotation
- Indexing tables
- Valve actuation
- Packaging machinery
- Assembly line automation
Advantages
- Compact design for space-constrained installations
- Precise rotational control for accurate positioning
- Adjustable angle feature for application flexibility
- Smooth operation due to integrated cushioning
- High torque output relative to its size
Installation and Maintenance
The Hered CRQ2 Series is designed for easy installation and minimal maintenance. Its compact size allows for integration into tight spaces, while the internal cushioning reduces wear and extends the actuator’s lifespan. For optimal performance, follow the installation guidelines provided in the product manual and perform regular maintenance checks.
For detailed specifications, dimensions, and ordering information, please consult our product catalog or contact our technical support team.
