Overview

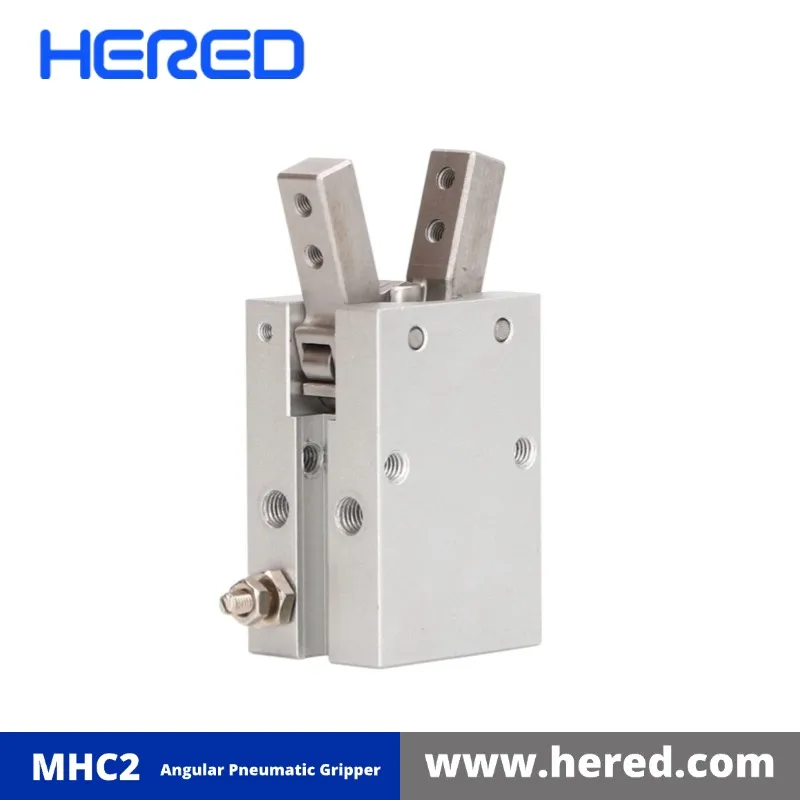

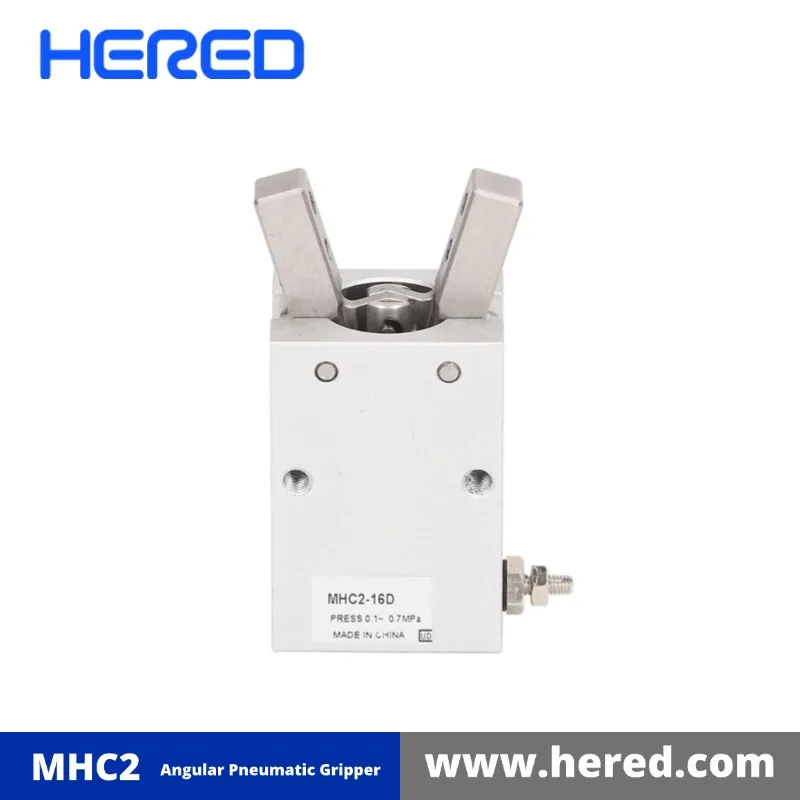

The Hered MHC2 Angular Pneumatic Gripper is a compact and versatile actuator designed for precise gripping operations in space-constrained automation systems. This gripper features an angular opening and closing motion, making it ideal for handling a wide range of part shapes and sizes.
Key Features
- Angular gripping motion for versatile part handling
- Compact, low-profile design for space-saving installations
- Available bore sizes: 6, 7, 10, 16, 20, 25mm
- Double-acting and single-acting options
- High precision with repeatability of ±0.01 to ±0.02mm
- Corrosion-resistant materials for durability
- Simple installation with fixed cylinder mounting
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Medium | Air |
| Operating Pressure (Double-acting) | 0.1 to 0.6 MPa (varies by bore size) |
| Operating Pressure (Single-acting) | 0.25 to 0.6 MPa (varies by bore size) |
| Temperature Range | -10°C to +60°C |
| Maximum Frequency | 180 cycles per minute |
| Lubrication | Non-lube |
| Opening/Closing Angle | 30° to -10° (varies by model) |
Applications
Ideal for use in:
- Compact assembly automation
- Small parts handling
- Robotics end-effectors
- Pick and place operations
- Material handling in confined spaces
- Packaging machinery
Gripping Force and Performance
Clamping torque ranges from 0.017 N·m to 1.36 N·m, depending on the bore size and actuation type. The angular motion allows for versatile gripping of various part geometries.
Construction and Design
- Thin cylinder body with positioning pinholes for claw and poke rod installation
- Piston rod movement drives the opening and closing of the gripper fingers
- Compact structure for reduced space requirements
- Corrosion-resistant materials for enhanced durability
Ordering Information
When ordering, specify the model code indicating the series, bore size, actuation type (double-acting or single-acting), and any additional options. Refer to the ordering code chart for detailed configuration options.
For detailed specifications, dimensions, and customization options, please consult our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable MHC2 Angular Gripper configuration for your specific application needs, ensuring optimal performance in your compact automation processes.
