Hered AL,BL Series Lubricators
The Hered AL and BL Series Lubricators are precision-engineered devices designed to provide controlled lubrication for pneumatic systems. These lubricators ensure optimal performance and longevity of your air-powered tools and machinery by delivering a regulated quantity of oil to the filtered air.
Key Features
- Proportional lubrication system adds regulated quantity of oil to filtered air
- Available in small (AL) and middle (BL) sizes to suit various applications
- Multiple port size options for flexible installation
- Adjustable oil drip rate for precise control
- Compatible with various thread types (PT, NPT, etc.) per customer requirements
- Polycarbonate container for durability and clear visibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Medium | Compressed Air |
| Working Pressure Range | 0~1.0 MPa |
| Proof Pressure | 1.5MPa |
| Temperature Range | 5°C~60°C |
| Recommended Oil | ISO VG32 or equivalent grade |
Available Models

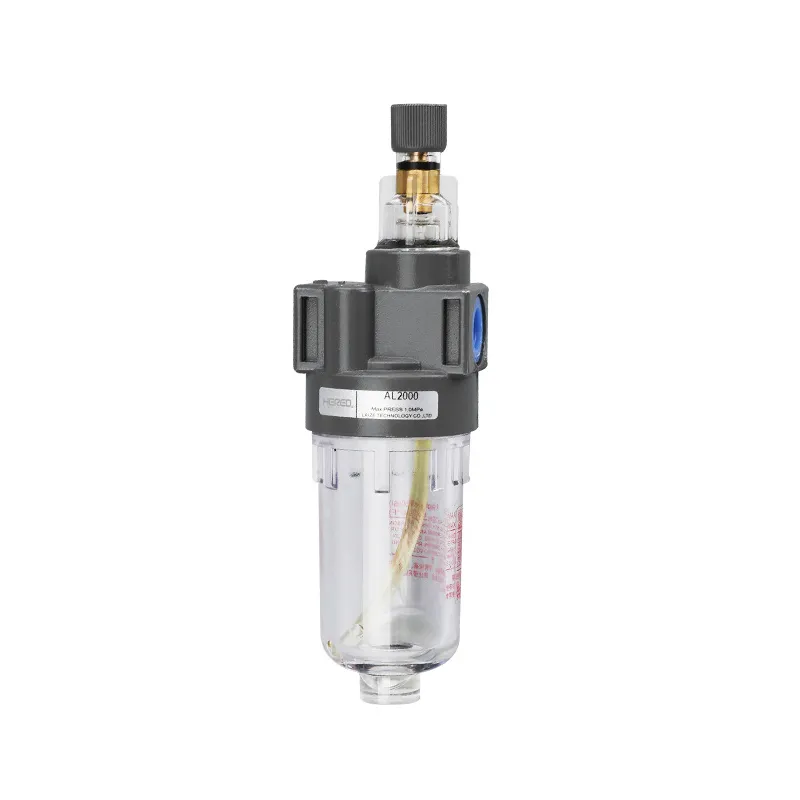

- AL Series (Small size): AL1500 (G1/8), AL2000 (G1/4)

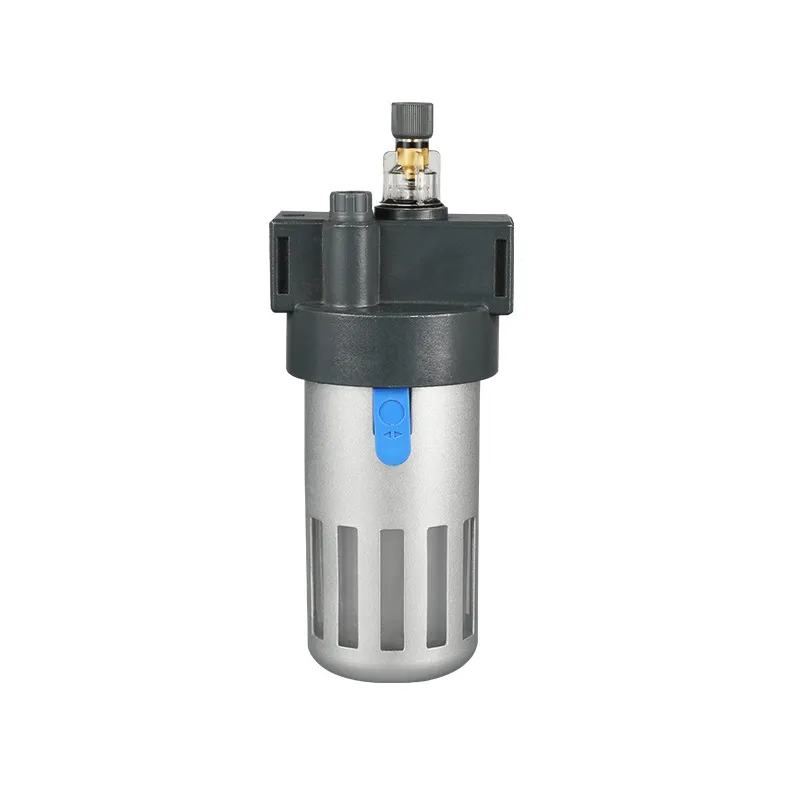

- BL Series (Middle size): BL2000 (G1/4), BL3000 (G3/8), BL4000 (G1/2)
Key Differences
- AL Series: Compact design with 25ml oil feed cup capacity
- BL Series: Larger capacity with 90ml oil feed cup and available protective cover
Dimensions
Our AL and BL Series lubricators are designed for easy integration into your pneumatic systems. Please refer to the detailed dimension sheets for specific measurements of each model.
Applications
Ideal for various industrial pneumatic systems where proper lubrication is crucial for optimal performance of air-powered tools and equipment. Suitable for manufacturing, automation, and process control industries.
For more detailed specifications, installation guidelines, and customization options, please consult our product catalog or contact our technical support team.
