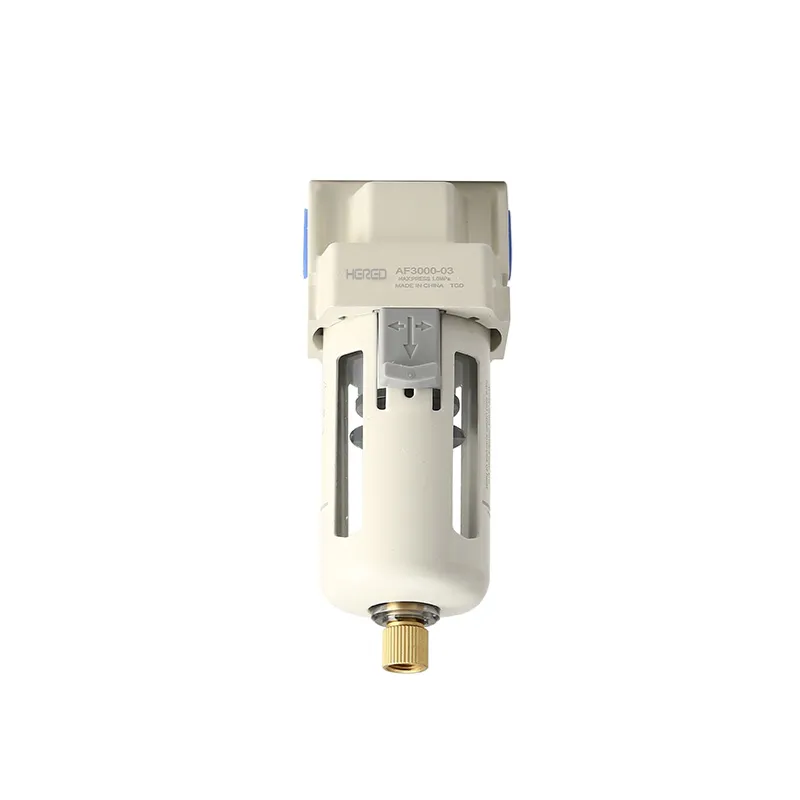

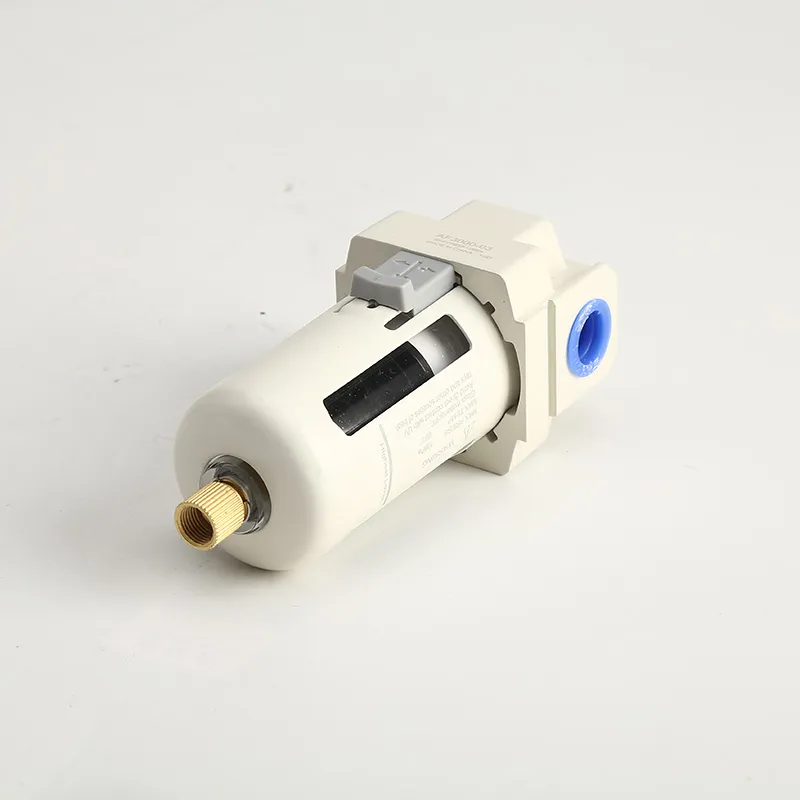

Hered AF Series Air Filters
The Hered AF Series Air Filters are high-performance pneumatic components designed to ensure clean, dry compressed air for optimal system performance. These filters effectively remove fluid oil, condensation, and dirt particles, enhancing the efficiency and longevity of downstream pneumatic equipment.
Key Features
- Water separator for efficient removal of contaminants
- Standard 40μm filter element, easily replaceable with 25μm or 5μm options for special applications
- Wide range of body sizes and port connections available
- Compatible with various thread types (PT, NPT, etc.) per customer requirements
- Manual or automatic drain options
- Polycarbonate container for durability and visibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Medium | Compressed Air |
| Working Pressure Range | 0~1.0 MPa |
| Proof Pressure | 1.5MPa |
| Temperature Range | 0°C~60°C |
| Nominal Flow Rate | 750 ~ 7000 L/min (model dependent) |
| Filtration Grade | 40μm (default), 25μm, 5μm options |
| Container Material | Polycarbonate |
Available Models
The AF Series includes models AF1000 to AF5000, with various port sizes from M5 to G1, catering to different flow rate requirements:
- AF1000-AF2000: Suitable for lower flow rates (up to 750 L/min)
- AF3000-AF4000: Medium flow rates (1500 to 6000 L/min)
- AF5000: High flow rates (up to 7000 L/min)
Customization Options
- Automatic drain function available (add ‘D’ to ordering code)
- Protective covers available for most models
- Various mounting options with brackets for flexible installation
Applications
Ideal for various industrial pneumatic systems where clean, dry air is crucial for optimal performance of air-powered tools and equipment. Suitable for manufacturing, automation, and process control industries.
For detailed specifications, installation guidelines, and customization options, please consult our product catalog or contact our technical support team.
