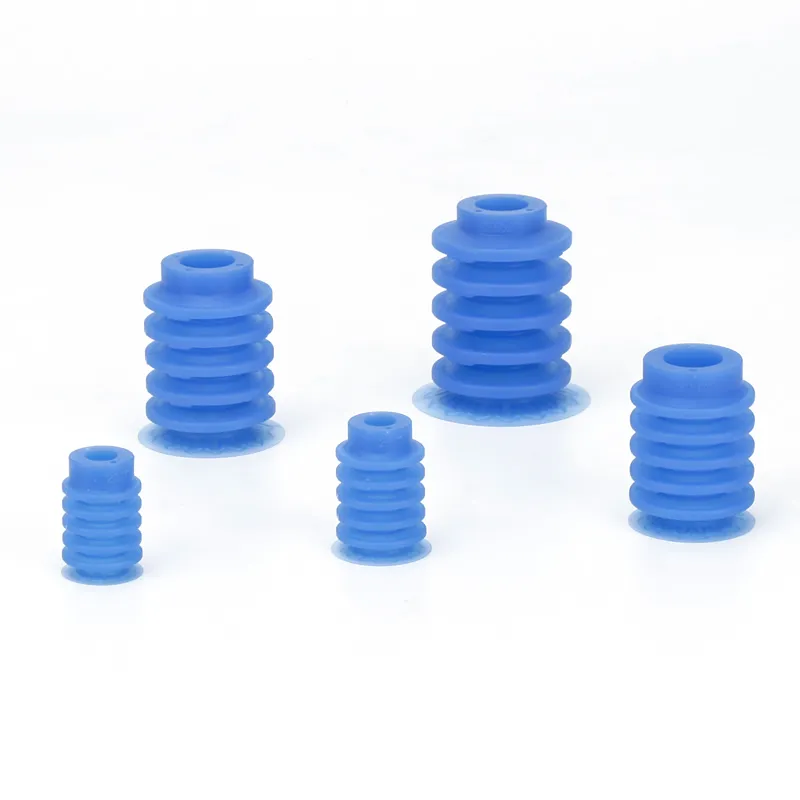

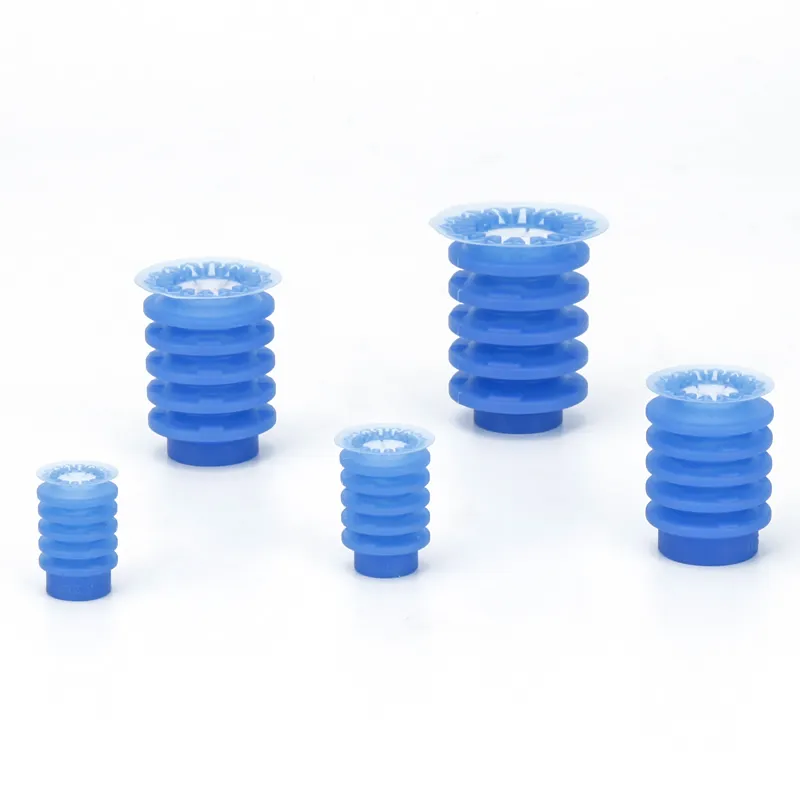

Hered ZP3P-JT5 Series Vacuum Pads/Bellows Type
Overview
The Hered ZP3P-JT5 Series Vacuum Pads are advanced bellows-type suction cups specifically engineered for the adsorption transfer of workpieces with soft, flexible film packaging. These innovative pads feature a 5.5-stage bellows design, offering superior handling capabilities for delicate materials in various industrial applications.
Key Features
- Specialized Film Handling: Optimized for flexible soft film materials
- Thin Film Skirt: Reduces risk of wrinkling during handling
- Specially Shaped Ribs: Enhances grip and stability
- Blue Color: Facilitates easy contamination inspection

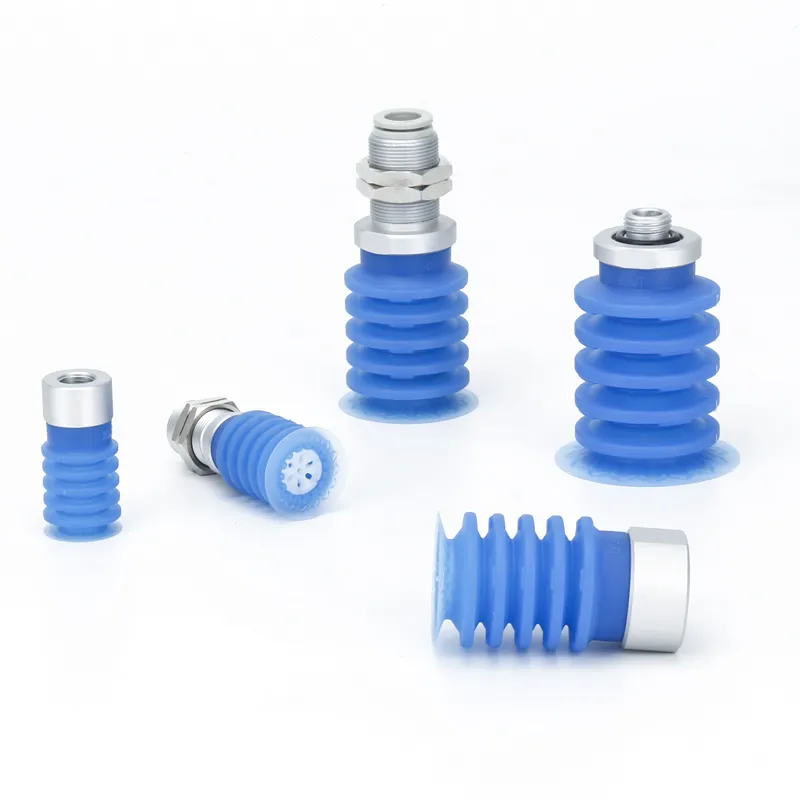

- Vacuum Inlet Options: Male or female thread
- Bellows Type: 5.5-stage design for maximum flexibility and control
Pad Specifications
| Series | Pad Form | Pad Diameters (mm) |
|---|---|---|
| ZP3P | Bellows (5.5-stage) | 20, 25, 32, 40, 50 |
Applications
- High-precision film packaging handling
- Delicate material transfer in manufacturing
- Electronics industry component handling
- Food packaging operations
- High-speed material transfer up to 4G
Technical Advantages
- Superior Wrinkle Prevention: Advanced design minimizes deformation of soft films
- Enhanced Flexibility: 5.5-stage bellows for improved adaptability to workpiece surfaces
- Precision Handling: Ideal for high-speed and delicate material transfer
- Safety Compliance: Meets FDA regulations for food and sensitive applications
Performance Highlights
- High-Speed Capability: Efficient handling at speeds up to 4G
- Material Integrity: Ensures minimal damage to soft, flexible films
- Versatile Application: Suitable for a wide range of flexible packaging materials
- Quality Assurance: Blue color aids in visual inspection processes
The Hered ZP3P-JT5 Series Vacuum Pads/Bellows Type represent the pinnacle of soft film handling technology. Their 5.5-stage bellows design offers unparalleled flexibility and control, making them ideal for high-precision, high-speed packaging processes. These pads are essential for manufacturers requiring the utmost in delicate material handling, particularly in the packaging, electronics, and food industries where material integrity and operational efficiency are paramount.
