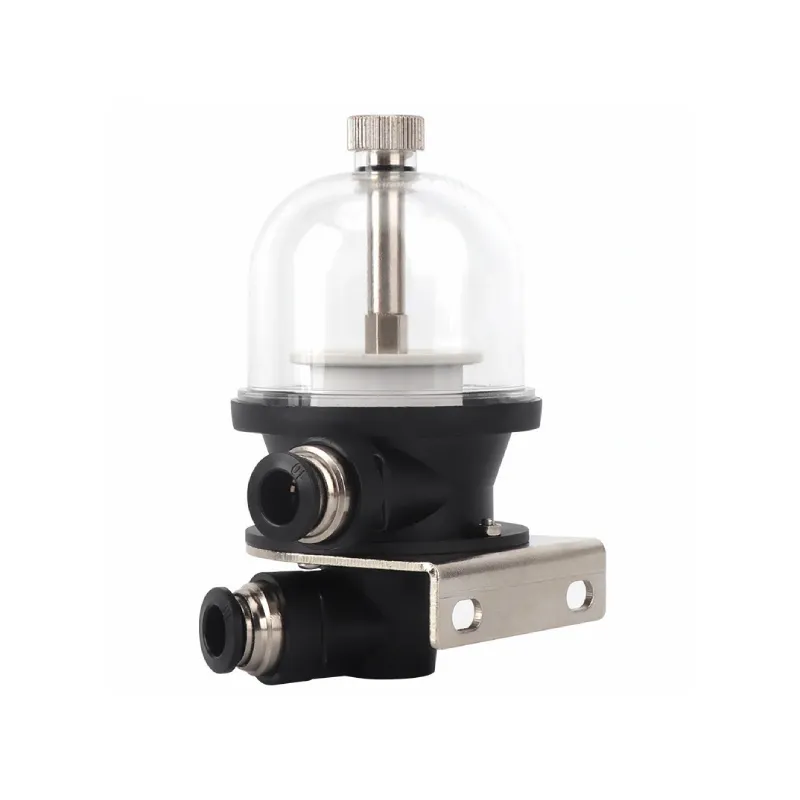

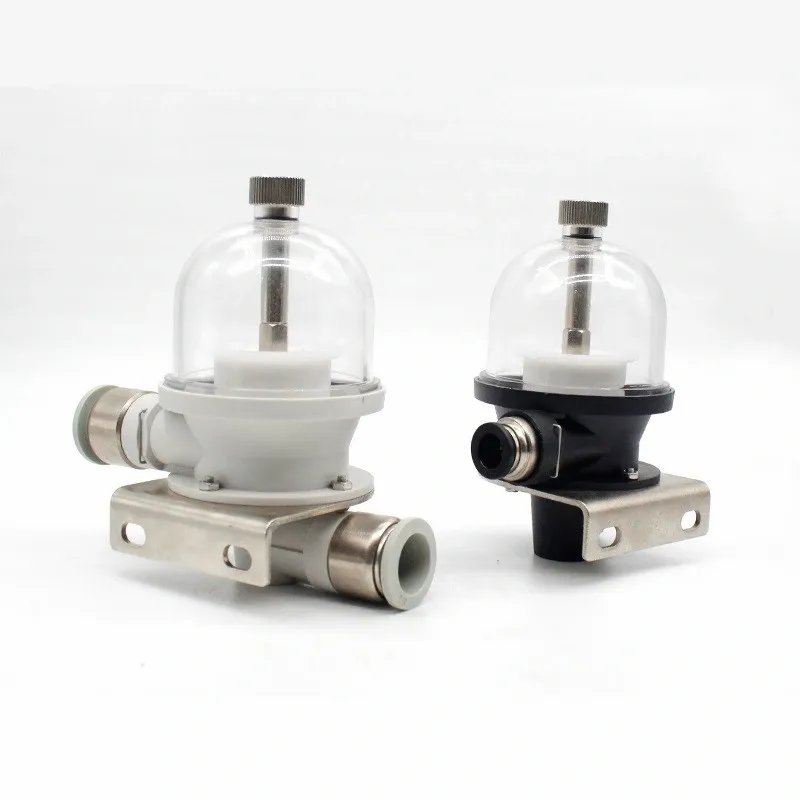

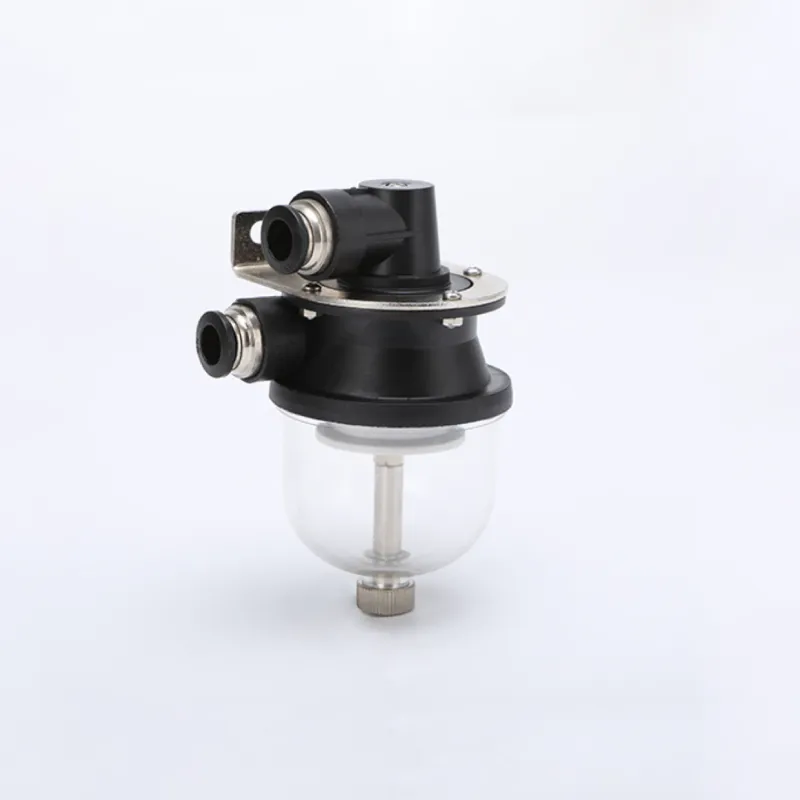

Hered VFR Vacuum Filter
The Hered VFR Vacuum Filter efficiently removes dust and water droplets from vacuum systems using advanced filtration technology and cyclone effects. It’s designed for optimal performance and reduced maintenance in pneumatic applications.
Key Features
- Dual Filtration: Combines filter elements and cyclone effect
- Large Dust Case: Reduces maintenance frequency
- RoHS2 Compliant: Meets environmental standards
- Versatile Sizing: Available for tube diameters 6mm to 16mm
- High-Performance Materials: PBT resin and nickel-plated brass construction
Technical Specifications
| Feature | Specification |
|---|---|
| Fluid Medium | Air |
| Operating Pressure Range | -100 to 0 kPa |
| Filtering Accuracy | 10μm |
| Operating Temperature | 0 to 60°C (No freezing) |
| Filter Area | 20cm² |
Dimension
| Model code | Tube O.D. ØD | C | E | Filter area (cm²) | Weight (g) |
|---|---|---|---|---|---|
| VFR20-6-□ | 6 | 17 | 44.1 | 20 | 206 |
| VFR20-8-□ | 8 | 18.2 | 45.4 | 206 | |
| VFR20-10-□ | 10 | 20.7 | 46.3 | 202 | |
| VFR20-12-□ | 12 | 23.3 | 48.9 | 201 | |
| VFR20-16-□ | 16 | 24.8 | 55.3 | 209 |
Applications
- Pneumatic Systems
- Vacuum Generators
- Industrial Automation
- Material Handling Equipment
Maintenance
- Regular inspection and cleaning of filter elements
- Easy element replacement for optimal performance
- Ensure proper sealing after maintenance to prevent leaks
Safety Precautions
- Never apply positive pressure for blow-off
- Follow proper installation and maintenance procedures
- Ensure correct air flow direction when connecting
The Hered VFR Vacuum Filter is an essential component for maintaining clean air in vacuum systems, enhancing operational efficiency and extending equipment lifespan in various industrial applications.
