Overview

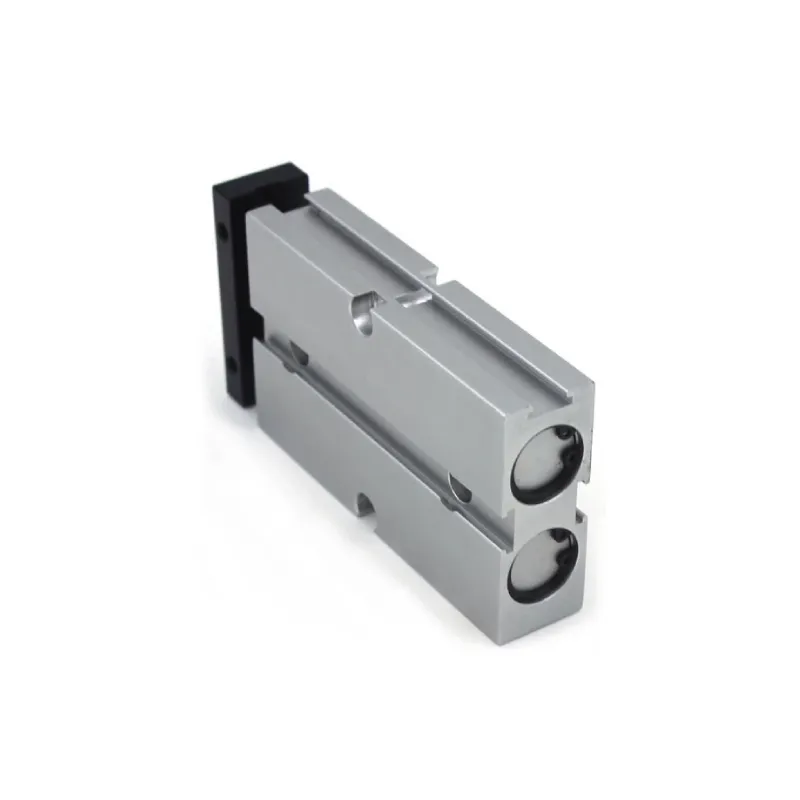

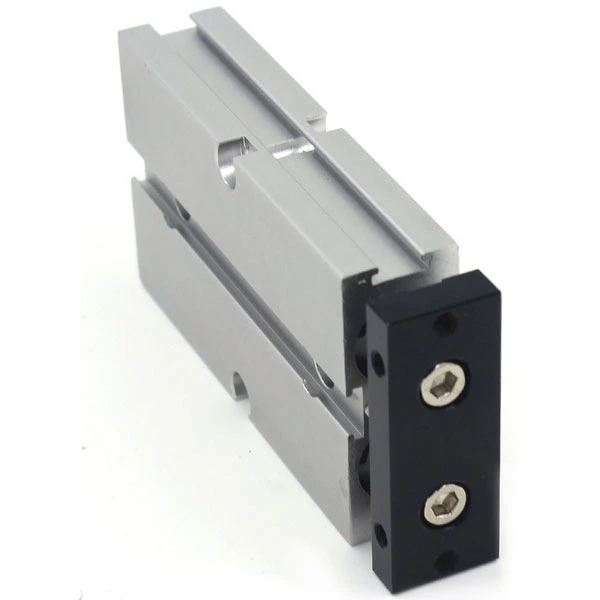

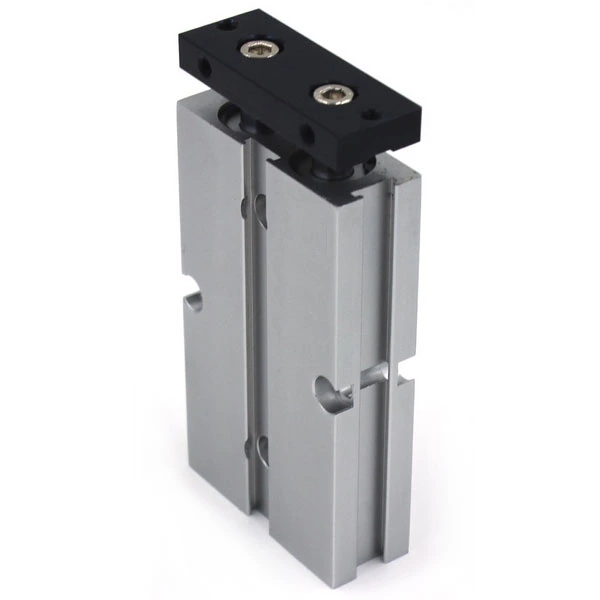

The Hered TDA Dual Rod Pneumatic Cylinders are high-performance actuators designed for applications requiring enhanced stability, precision, and force output. These cylinders feature a unique double rod construction, offering superior resistance to bending and torsion in compact automation systems.
Key Features
- Double-acting operation with dual piston rods
- Available bore sizes: 10, 16, 20, 25, 32mm
- High non-rotation accuracy of ±0.3° to ±0.4°
- Double output force compared to single rod cylinders
- Embedded installation for space-saving design
- Three-sided mounting options for versatile integration
- Adjustable stroke capability (-10 to 0mm)
- Magnetic sensor compatibility as standard
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Medium | Air |
| Operating Pressure | 0.1 to 1.0 MPa (14 to 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature Range | -20°C to +70°C |
| Piston Speed | 30 to 500 mm/s |
| Cushioning | Bumper |
| Port Size | M5×0.8 (Φ10), PT1/8 (Φ16 and larger) |
Applications
Ideal for use in:
- Precision positioning systems
- Material handling equipment
- Industrial automation
- Assembly machinery
- Applications requiring high accuracy and force output
- Environments with lateral load requirements
Ordering Information
When ordering, specify the model code indicating the series, bore size, stroke length, and any additional options. Standard strokes range from 10mm to 200mm, with maximum strokes varying by bore size.
Construction and Performance
- Simple assembly design for easy maintenance
- Body-integrated mounting grooves for convenient magnetic switch installation
- Available in high-temperature resistant versions for demanding environments
- Theoretical output force ranges from 5.7N to 1125.9N depending on bore size and air pressure
For detailed specifications, dimensions, and customization options, please refer to our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable TDA Dual Rod Cylinder configuration for your specific application needs, ensuring optimal performance and efficiency in your automation processes.
