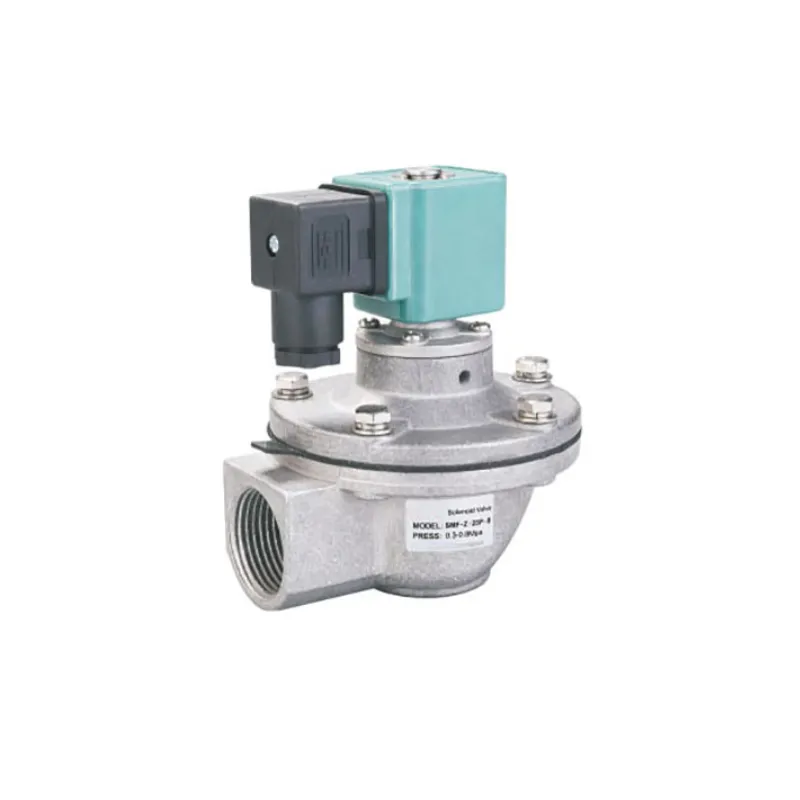

Hered SMF-Z-D Series Solenoid Pulse Valve
Hered Pneumatic Co., LTD.’s SMF-Z-D Series Solenoid Pulse Valve is a high-performance, 2-way normally closed valve designed for precise control of air flow in various industrial applications. This versatile valve offers exceptional reliability, rapid response times, and a long service life, making it ideal for use in dust collection systems, pneumatic controls, and other automated processes.
Key Features
- 2-way, normally closed configuration
- Wide range of port sizes from G3/4 to G2 1/2
- Broad operating pressure range: 0.3-0.8MPa
- Durable aluminum alloy body construction
- NBR sealing for excellent air compatibility
- Long membrane service life: over 1 million cycles
- Low power consumption: 18VA coil power
- Multiple voltage options: AC110V/AC220V/DC24V
Technical Specifications
| Parameter | Specification |
|---|---|
| Models | SMF-Z-20P-D, SMF-Z-25P-D, SMF-Z-40S-D, SMF-Z-50S-D, SMF-Z-62S-D |
| Port Sizes | G3/4, G1, G1 1/2, G2, G2 1/2 |
| Working Pressure | 0.3-0.8MPa |
| Proof Pressure | 1.0MPa |
| Medium | Air |
| Membrane Service Life | More than 1 Million times |
| Coil Power | 18VA |
| Body Material | Aluminum Alloy |
| Seal Material | NBR |
| Voltage Options | AC110V/AC220V/DC24V |
Dimensions
| Model | Port Size | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| SMF-Z-20P-D | G3/4 | 87 | 78 | 121 |
| SMF-Z-25P-D | G1 | 108 | 95 | 128 |
| SMF-Z-40S-D | G1 1/2 | 131 | 111 | 179 |
| SMF-Z-50S-D | G2 | 181 | 160 | 201 |
| SMF-Z-62S-D | G2 1/2 | 205 | 187 | 222 |
Applications
- Dust collection systems
- Pneumatic control systems
- Industrial automation processes
- Filter cleaning mechanisms
- Pulse jet baghouse systems
- Material handling equipment
- Pneumatic conveying systems
Benefits
- Wide range of sizes for various flow requirements
- Long service life reduces maintenance and replacement costs
- Low power consumption for energy efficiency
- Durable aluminum alloy construction for industrial environments
- Excellent sealing performance ensures efficient operation
- Consistent performance across a wide pressure range
- Multiple voltage options for easy integration into existing systems
Hered Pneumatic Co., LTD.’s SMF-Z-D Series Solenoid Pulse Valve offers exceptional performance, durability, and versatility for diverse industrial applications. With its robust construction, long service life, and multiple configuration options, this valve ensures precise and efficient air flow control in even the most demanding environments. Choose Hered’s SMF-Z-D Series for uncompromising quality and dependable operation in your pneumatic systems and dust collection applications.
For more information, customization options, or to place an order, please contact our sales team. We’re committed to helping you find the perfect Hered SMF-Z-D Series Solenoid Pulse Valve tailored to your specific requirements.
