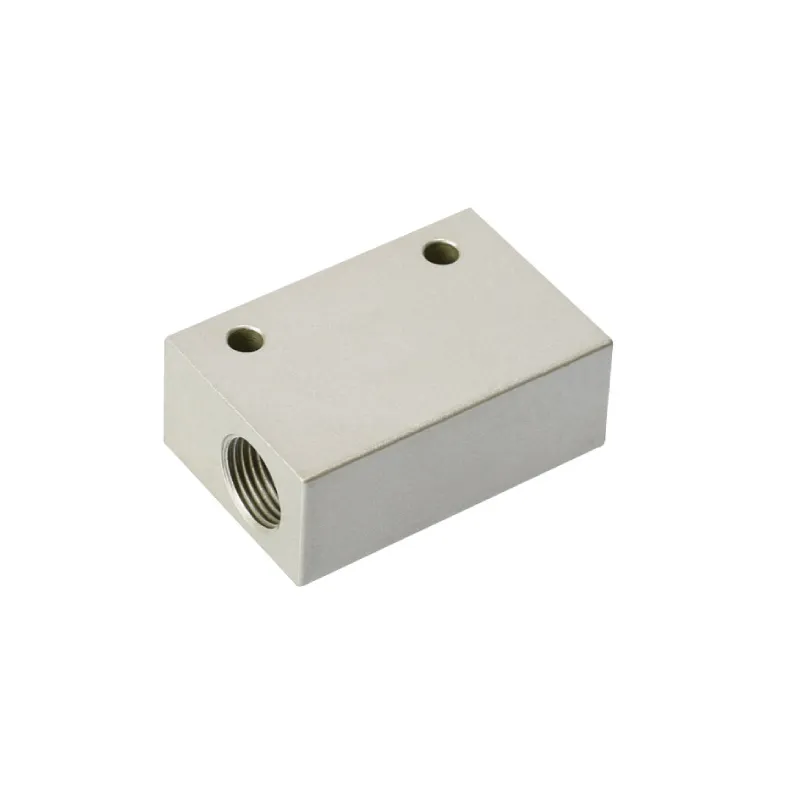

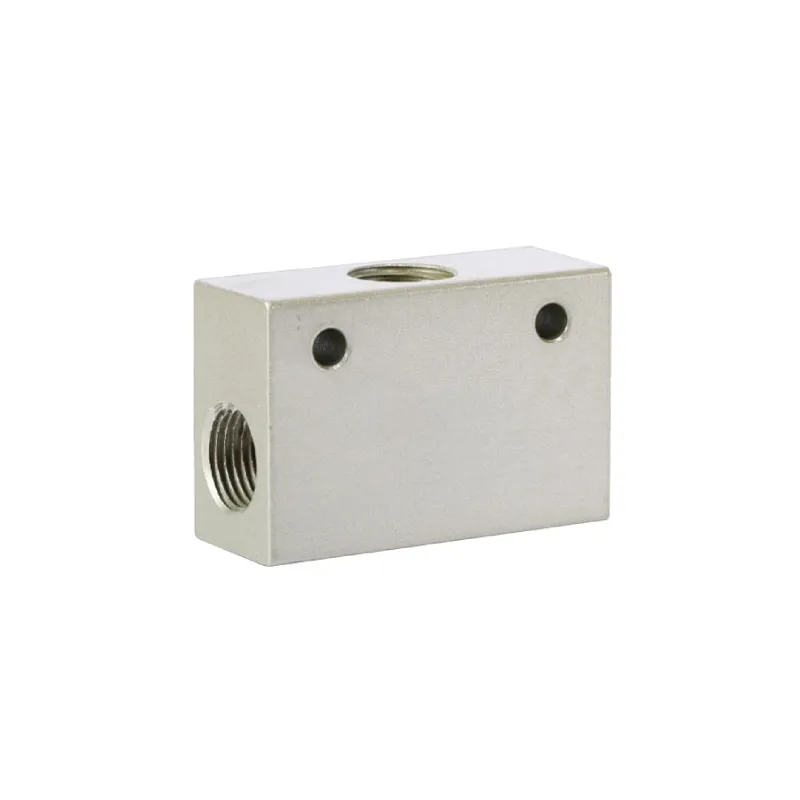

Hered Pneumatic Shuttle Valve KV Series
Hered Pneumatic Co., LTD.’s KV Pneumatic Shuttle Valve is a versatile component equivalent to two check valves in parallel. With two input ports and one output port, it functions as a logical “OR” gate in pneumatic systems, suitable for both execution and control loops. This compact and efficient valve ensures reliable air flow control in various industrial applications.
Key Features
- Dual input, single output design for flexible air flow control
- Multiple port sizes available: G1/8, G1/4, G3/8, G1/2, G3/4, G1
- Durable aluminum alloy construction for long-lasting performance
- Wide operating temperature range: -5~60℃
- High proof pressure rating: 1.5MPa
- Prevents backflow from output to input ports
- Compact and simple design for easy integration
Specifications
| Parameter | KV-06 | KV-08 | KV-10 | KV-15 | KV-20 | KV-25 |
|---|---|---|---|---|---|---|
| Working Medium | Compressed Air | |||||
| Port Size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Effective sectional area (mm²) | 10 | 10 | 21 | 21 | 47 | 47 |
| Cv value | 0.56 | 0.56 | 1.17 | 1.17 | 2.6 | 2.6 |
| Max. Operating Pressure | 0.9MPa | |||||
| Proof Pressure | 1.5MPa | |||||
| Operating temp. range | -5~60℃ | |||||
| Main parts material | Aluminium Alloy | |||||
Dimensions
| Model | A | B | C | E | F | G | H |
|---|---|---|---|---|---|---|---|
| KV-06 | 40 | 25 | G1/8 | 21 | 26 | 16 | 8 |
| KV-08 | 52 | 35 | G1/4 | 25 | 35 | 22 | 11 |
| KV-10 | 70 | 48 | G3/8 | 40 | 50 | 30 | 18 |
| KV-15 | 75 | 48 | G1/2 | 40 | 50 | 30 | 18 |
| KV-20 | 110 | 72 | G3/4 | 58 | 70 | 40 | 22 |
| KV-25 | 110 | 72 | G1 | 58 | 70 | 40 | 22 |
Applications
- Pneumatic control systems requiring OR logic functionality
- Industrial automation equipment
- Pneumatic cylinders and actuators
- Manufacturing and assembly lines
- Any pneumatic application requiring selective air supply management
Working Principle
When air pressure is applied to either input port, the KV valve opens, allowing air to flow to the output port. If pressure is applied to both input ports simultaneously, the valve opens both paths, combining the air flows. This design ensures efficient and reliable air flow control in various pneumatic applications.
Benefits
- Provides logical OR functionality in pneumatic systems
- Improves system efficiency and reliability
- Versatile design suitable for various pneumatic applications
- Multiple port sizes available to fit different system requirements
- Robust aluminum alloy construction ensures long-term durability in industrial environments
- Simple structure facilitates easy installation and maintenance
Hered Pneumatic Co., LTD.’s Pneumatic Shuttle Valve KV Series offers an efficient and reliable solution for air flow control in pneumatic systems. The durable construction, high-performance characteristics, and versatile design make these valves an excellent choice for a wide range of industrial applications. Whether you’re optimizing existing equipment or designing new pneumatic systems, the KV Series provides the precision and reliability needed in today’s demanding industrial environments.
For additional technical specifications, detailed product catalogs, or customized solutions tailored to your specific pneumatic control requirements, please don’t hesitate to reach out to our technical support team. Our experienced engineers are ready to assist you in selecting the optimal components for your pneumatic systems, ensuring maximum efficiency and performance in your operations.
