Product Overview

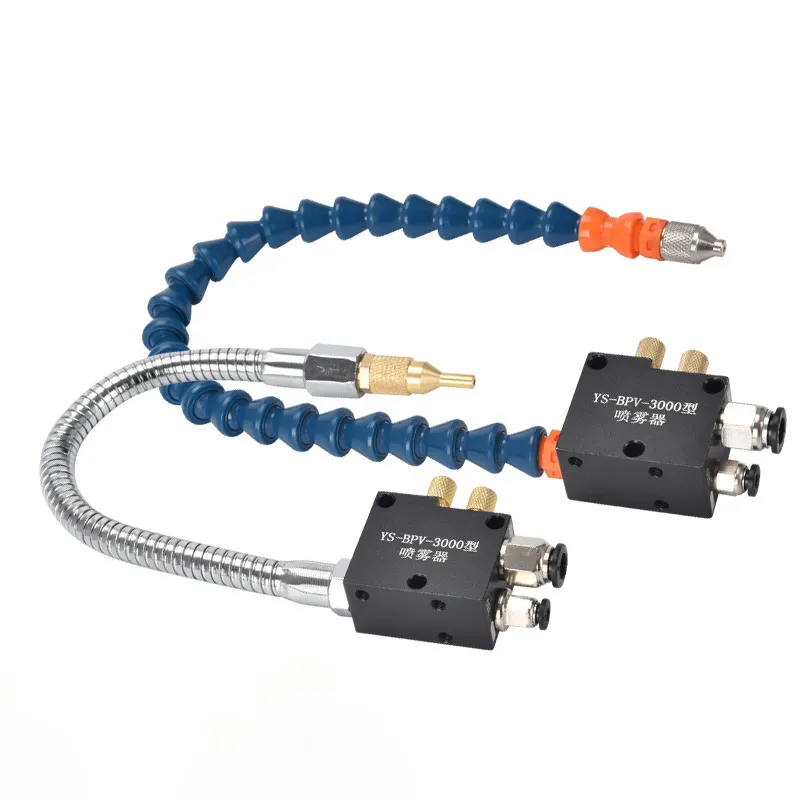

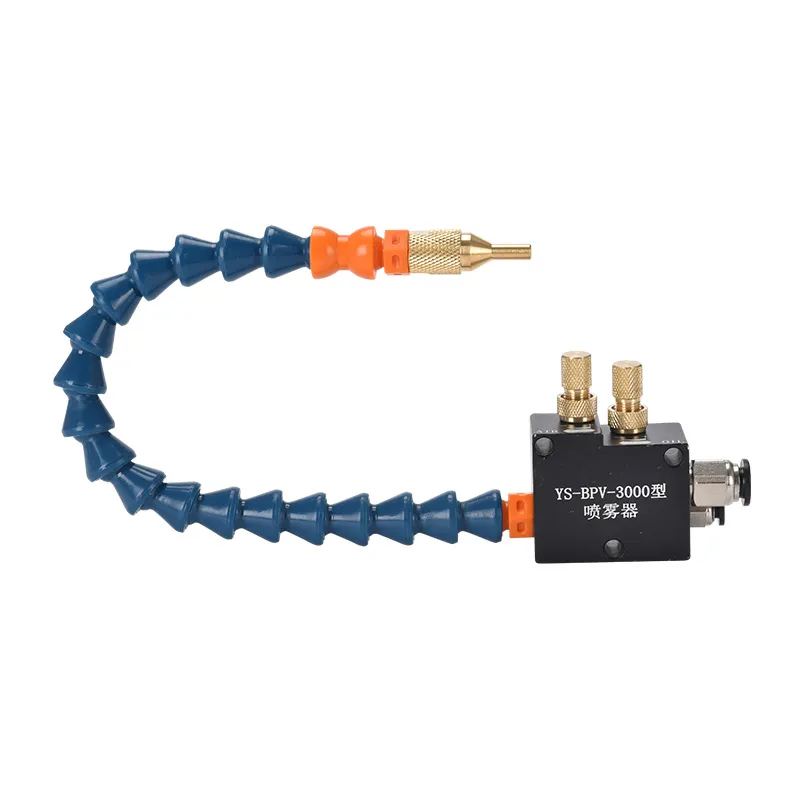

The Hered self-priming coolant lubricant sprayer is a pneumatic device designed for industrial machining operations. It simultaneously cools, lubricates, and cleans workpieces, enhancing efficiency and quality in various manufacturing processes.
Working Principle
Powered by compressed air (0.25-3KG pressure), the sprayer uses a vacuum self-priming mechanism to draw coolant from a reservoir. It then atomizes the coolant through a 0.25mm nozzle, creating a cone-shaped spray pattern. This atomized lubricant is applied to the workpiece or tool, providing cooling, lubrication, and chip removal in one operation.
Key Features and Benefits
- Multifunctional Operation: Combines cooling, lubricating, and chip removal in a single step, improving efficiency and tool life.
- Versatile Applications: Suitable for various machining processes including engraving, drilling, gear cutting, washing, and cutting on machines like CNC lathes, milling machines, and grinding equipment.
- Adjustable Performance: Flow rate can be adjusted to suit different processing conditions.
- Improved Surface Finish: Helps achieve high-precision surfaces, even on alloys or superhard materials.
- Extended Tool Life: Cooling and lubrication minimize tool wear, particularly beneficial for difficult materials.
- Increased Productivity: Improves cutting speeds and reduces processing time.
- Environmental Benefits: Reduces workshop pollution by containing coolant and chips.
Specifications
| Feature | Specification |
|---|---|
| Material | Aluminum body with copper core |
| Air Pressure | 0.25-3KG |
| Nozzle Diameter | 0.25mm |
| Liquid Delivery | Suction-based (up to 3.5 meters height) |
| Flow Rate | Adjustable |
| Spray Pattern | Cone-shaped |
Additional Applications
- Small-area cooling or misting for specialized tasks like automatic punch presses or mobile phone back cover polishing.
- Facilitates one-step deburring, extending tool life and enhancing product surface quality.
In conclusion, the Hered self-priming coolant lubricant sprayer is a versatile and efficient tool for various industrial machining applications, offering significant improvements in processing quality, tool longevity, and operational efficiency.
