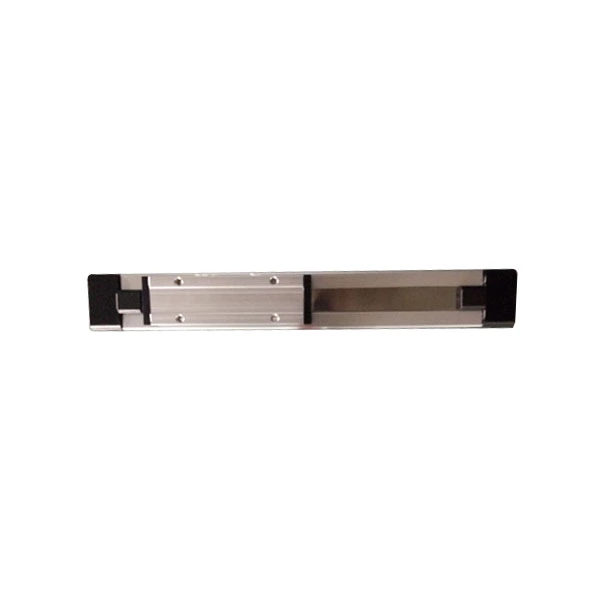

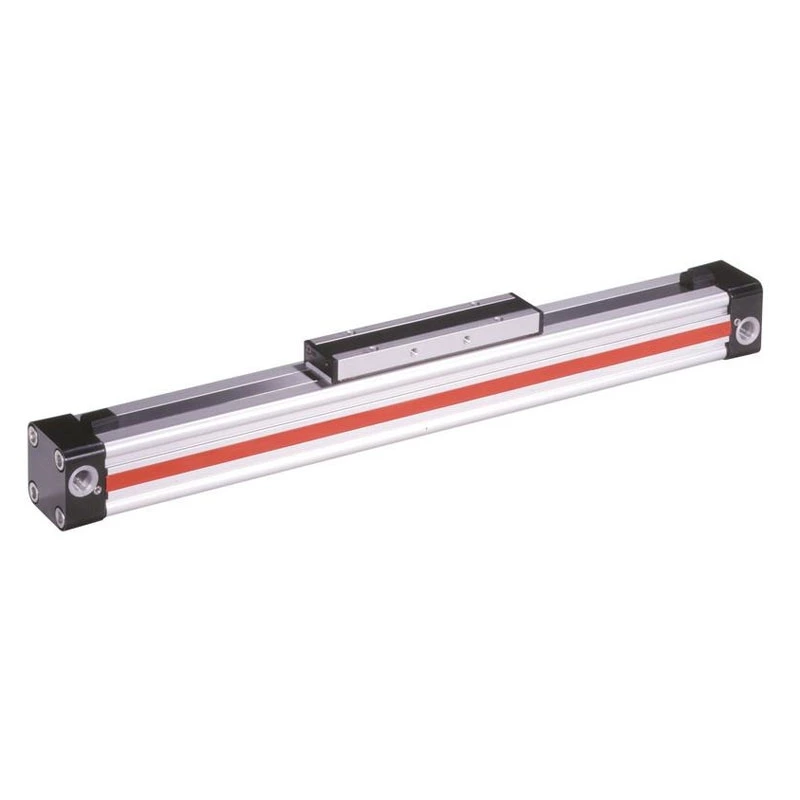

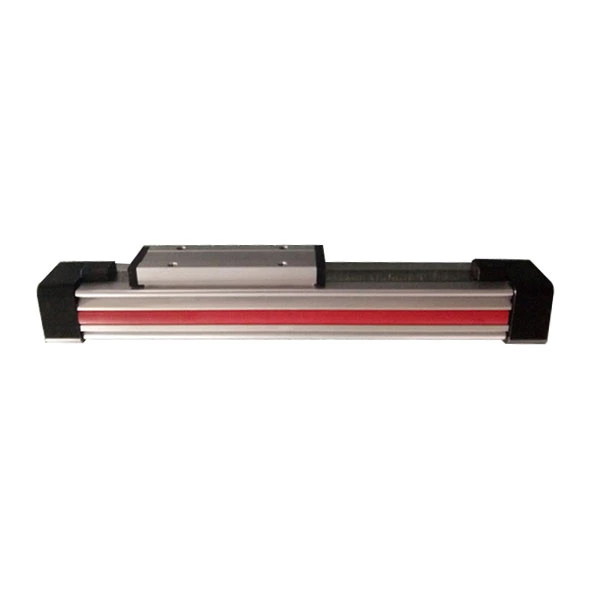

Rodless Pneumatic Cylinder OSP-P

The Rodless Pneumatic Cylinder OSP-P from Hered Pneumatic Co., LTD. combines advanced engineering with robust design, ideal for wave soldering and automatic dispensing machines. Certified to CE and ROHS standards, it features a compact modular design, stainless steel construction, and a dust-proof brush system for reliable performance. Offering stroke lengths from 200mm to 6000mm and speeds up to 10000mm/s, this cylinder ensures efficient, high-speed operation in harsh environments. Key features include corrosion resistance, high adaptability, and easy installation with no need for an anti-rotation mechanism.

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588
Whatsapp:+8618066396588
Email:sales@hered.com
Get quote

Overview

The Rodless Pneumatic Cylinder OSP-P from Hered Pneumatic Co., LTD. represents advanced engineering in pneumatic cylinder technology, ideal for applications such as wave soldering machines and automatic dispensing machines. This model is renowned for its efficient modular design, high adaptability, and ease of installation. Certified to CE and ROHS standards, it offers reliable performance even in harsh environments due to its robust stainless steel and dust-proof brush system.

Specifications

  • Model: OSP-P
  • Brand: Hered Pneumatic
  • MOQ: 50
  • Place of Origin: China
  • Application: Wave soldering machines, automatic dispensing machines
  • Available Bore Sizes: 16, 25, 32, 40, 50, 63, 80 mm
  • Operating Pressure: 0.16-0.7 MPa
  • Working Environment Temperature: -10°C to 80°C
  • Stroke Lengths: 200mm to 6000mm
  • Speed: 5-200mm/s; 200-4000mm/s; up to 10000mm/s

Description

The Rodless Pneumatic Cylinder OSP-P is designed with a mechanical contact type structure, where a groove is opened along the axial direction of the cylinder tube for the piston and slider to move. To prevent gas leakage and dust contamination, the contraption includes a polyurethane seal belt and a dustproof stainless steel belt secured at both ends of the cylinder head.

Key Features

  • Compact Design: Reduces the mounting position by half while maintaining the same stroke.
  • No Anti-Rotation Mechanism Needed: Simplifies installation and operation.
  • High-Speed Operation: Standard type speeds reach up to 0.1~0.5m/s; high-speed types up to 0.3~3.0m/s.
  • Versatile Modular Design: Features non-contact magnetic pistons and multiple rodless cylinder variants for diverse applications.
  • Metal-to-Metal Sealing: Ensures corrosion resistance and extends service life up to 8000km.
  • Easy Maintenance: Simple and quick assembly with modular components and dovetail grooves on three sides.

Technical Parameters

  • Bore Sizes: 16, 25, 32, 40, 50, 63, 80 mm
  • Stroke Lengths: 200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1500mm, 2000mm, 3000mm, 4000mm, 6000mm
  • Operating Pressure: 0.16-0.7 MPa
  • Speed: 5-200mm/s; 200-4000mm/s; up to 10000mm/s
  • Working Environment Temperature: -10°C to 80°C

Advantages

  • Enhanced durability with corrosion-resistant materials
  • Flexible installation with adjustable end buffers
  • Rapid speeds accommodating various industrial processes

Applications

The OSP-P Rodless Pneumatic Cylinder is suitable for:

  • Wave soldering machines
  • Automatic dispensing machines
  • Factory automation
  • Material handling and transfer systems
  • Packaging equipment

Choose the Rodless Pneumatic Cylinder OSP-P from Hered Pneumatic Co., LTD. for reliable, efficient, and high-performance solutions in your industrial applications.
