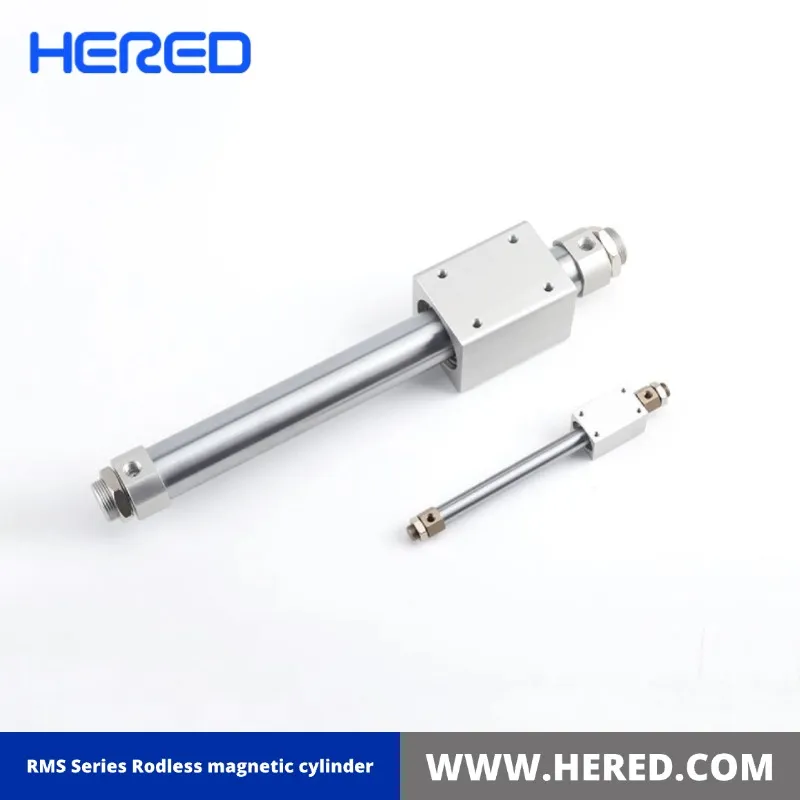

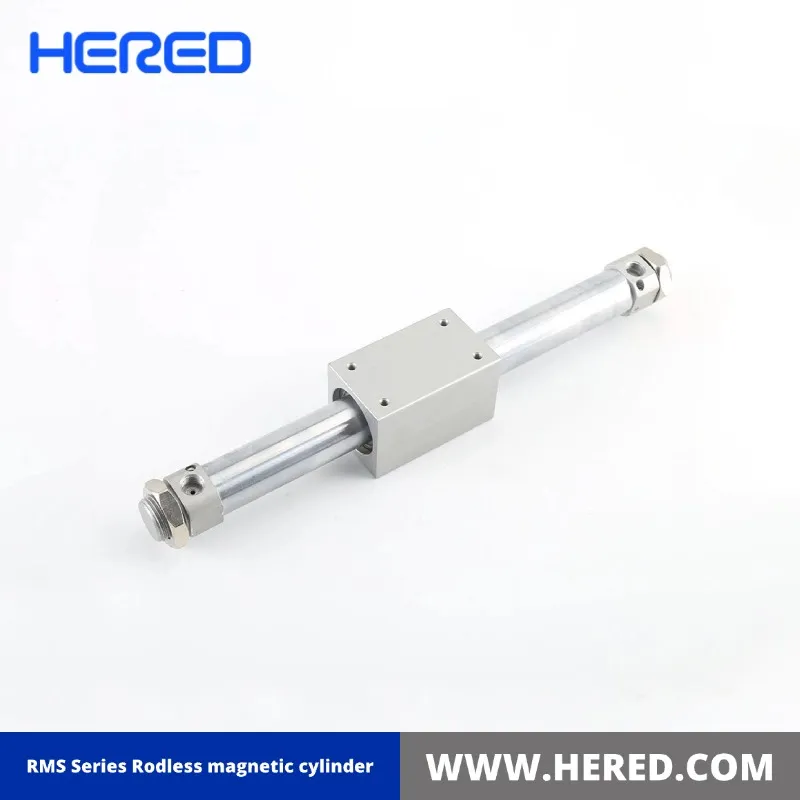

Hered Magnetic Coupled RMS Pneumatic Cylinder
The Hered Magnetic Coupled RMS Pneumatic Cylinder is an advanced rodless pneumatic actuator that leverages magnetic coupling technology for efficient and precise linear motion. This innovative design is ideal for applications where space constraints and precise control are critical factors.
Key Features
- Rodless Design: Eliminates traditional piston rod for a more compact footprint
- Magnetic Coupling: Mobile carriage with annular magnets for smooth, efficient movement
- Dust-Proof Isolation: Enhanced protection between carriage and piston for various environments
- Compact Size: Space-efficient design for applications with limited installation space
- Cushioning Features: Non-adjustable rubber bumpers and adjustable pneumatic cushioning on both ends
- Wear Reduction: Minimized wear and tear due to non-contact magnetic coupling
Specification
| Series name | RMS Series | RMS, RMSF Series | RMSP Series | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Bore size(mm) | 10 | 16 | 20 | 25 | 32 | 40 | 16 | 20 | 32 |
| Acting type | Double acting | ||||||||
| Fluid | Air(to be filtered by 40μm filter element) | ||||||||
| Operating pressure | 29~100psi (0.2~0.7MPa) |
22~100psi(0.15~0.7MPa)[Note 2] | |||||||
| Proof pressure | 175psi(1.2MPa) | ||||||||
| Temperature ℃ | -20~70 | ||||||||
| Speed range mm/s | 50~400 | ||||||||
| Stroke tolerance mm | 0~250 +1.0/0 251~1000 +1.5/0 1001~ +2.0/0 | ||||||||
| Cushion type | Bumper | Variable cushion+Fixed cushion | |||||||
| Port size [Note1] | M5×0.8 | 1/8″ | 1/4″ | M5×0.8 | 1/8″ | ||||
| Safe holding force N | 55 | 140 | 220 | 345 | 560 | 880 | 140 | 220 | 560 |
[Note1] NPT thread is available.
[Note 2] when stopping in the middle, Operating pressure shall not exceed 80psi,
and buffer shall be provided when stopping at both ends.
Dimension
| Model\Item | A | AC | AD | AF | B | E | EA | F | FA | H | J | JA | K | KA | KB | KC | KD | P | PA | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RMS10 | 91 | 73 | 9.5 | 48 | 25 | M10×1.0 | 9 | 14 | 4 | 15 | – | – | M3×0.5 | 4 | 30 | 16 | 21.5 | M5×0.8 | 5 | 17 |
| RMS16 | 103 | 83 | 10 | 57 | M10×1.0 | 10 | 14 | 4 | – | – | M4×0.7 | 5 | 35 | 19 | 24 | 5.5 | ||||
| RMSP16 | 112 | 92 | 14.5 | 57 | 35 | M10×1.0 | 10 | 14 | 4 | 20 | – | – | M4×0.7 | 7 | 34 | 25 | 29 | M5×0.8 | 7.5 | 22 |
| RMSF16 | 205 | 181 | 34 | 80 | M16×1.5 | 12 | 23 | 8 | 8 | 3 | M5×0.8 | 7.5 | 26 | 26 | 77.5 | 20 | ||||
| RMS20 | 132 | 106 | 15 | 66 | M20×1.5 | 13 | 26 | 8 | – | – | M4×0.7 | 5.5 | 50 | 25 | 28 | 1/8″ | 7.5 | |||
| RMSP20 | 143 | 115 | 19.5 | 66 | 40 | M20×1.5 | 14 | 26 | 8 | 25 | – | – | M5×0.8 | 7 | 40 | 30 | 37.5 | 1/8″ | 10 | 29 |
| RMSF20 | 217 | 185 | 29.5 | 90 | M22×1.5 | 16 | 29 | 7 | 8 | 2.5 | M5×0.8 | 8.5 | 32 | 32 | 76.5 | 1/8″ | 15 | |||
| RMS25 | 137 | 111 | 15 | 70 | 46 | M26×1.5 | 13 | 32 | 8 | 30 | – | – | M5×0.8 | 7.5 | 50 | 30 | 30.5 | 1/8″ | 7.5 | 33.5 |
| RMSF25 | 238 | 206 | 37.5 | 90 | M22×1.5 | 16 | 29 | 7 | 10 | 3 | M6×1.0 | 10 | 36 | 36 | 85 | 1/8″ | 20 | |||
| RMS32 | 156 | 124 | 16 | 80 | M26×1.5 | 32 | 8 | – | – | 8 | 50 | 40 | 37 | 1/8″ | 8 | |||||
| RMSP32 | 165 | 133 | 20.5 | 80 | 60 | M26×1.5 | 16 | 32 | 8 | 36 | – | – | M6×1.0 | 8 | 40 | 41.5 | 10 | 39.5 | ||
| RMSF32 | 270 | 238 | 48 | 110 | M30×1.5 | 36 | 7 | 10 | 3.5 | 12.5 | 48 | 95 | 28 | |||||||
| RMS40 | 182 | 150 | 22 | 92 | 70 | M32×2.0 | 16 | 41 | 10 | 46 | – | – | M6×1.0 | 9 | 60 | 40 | 45 | 1/4″ | 11 | 49.5 |
| RMSF40 | 327 | 295 | 44.5 | 130 | M38×1.5 | 46 | 8 | 12 | 4.5 | M8×1.25 | 16 | 50 | 56 | 122.5 | 1/4″ | 25 |
Applications
- Industrial Automation Systems
- Material Handling Equipment
- Assembly Line Processes
- Packaging Machinery
- Robotics and Pick-and-Place Operations
- Precision Manufacturing
Technical Advantages
| Feature | Benefit |
|---|---|
| Magnetic Coupling | Smooth operation and reduced mechanical wear |
| Rodless Configuration | Space-saving design for compact installations |
| Dust-Proof Design | Enhanced reliability in various industrial environments |
| Cushioning System | Improved operational smoothness and reduced noise |
Benefits
- Space Efficiency: Ideal for applications with limited installation space
- Precision Control: Magnetic coupling allows for accurate positioning and movement
- Durability: Reduced wear and tear due to non-contact operation
- Versatility: Suitable for a wide range of industrial applications
- Low Maintenance: Dust-proof design and minimal mechanical wear reduce maintenance needs
- Smooth Operation: Cushioning features ensure quiet and efficient performance
Optional Features
- Various stroke lengths to meet specific application requirements
- Sensor options for position detection and feedback
- Custom mounting brackets for diverse installation needs
- Specialized seals for challenging environments
The Hered Magnetic Coupled RMS Pneumatic Cylinder represents a significant advancement in pneumatic actuation technology. Its innovative design combines efficiency, precision, and reliability, making it an excellent choice for modern industrial automation systems where space and performance are critical factors.
For detailed specifications, customization options, or to discuss how the RMS series can enhance your specific application, please contact our Hered technical support team. We’re dedicated to providing cutting-edge pneumatic solutions tailored to your unique industrial needs.
