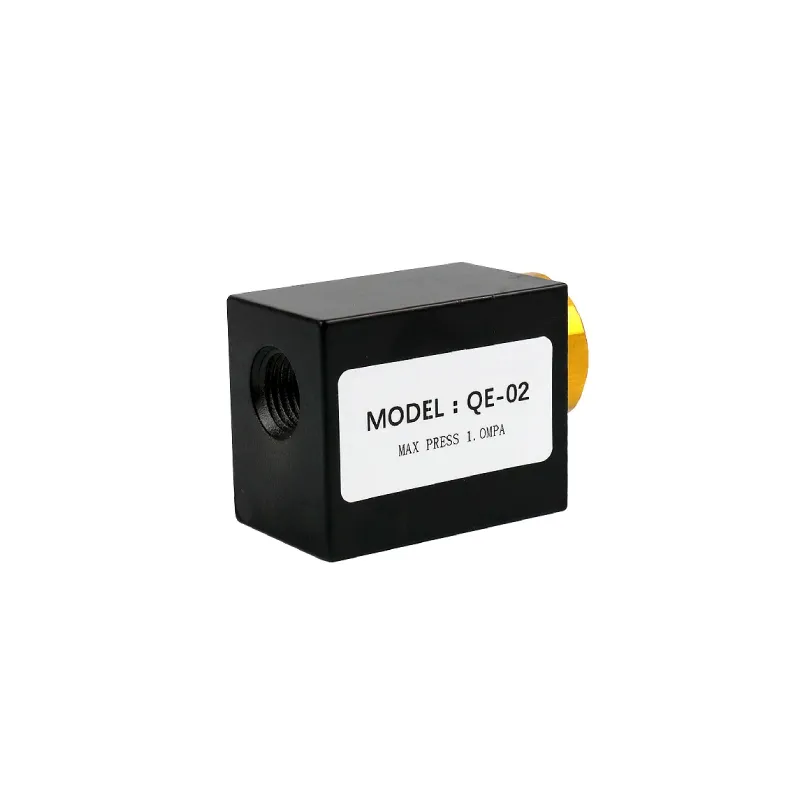

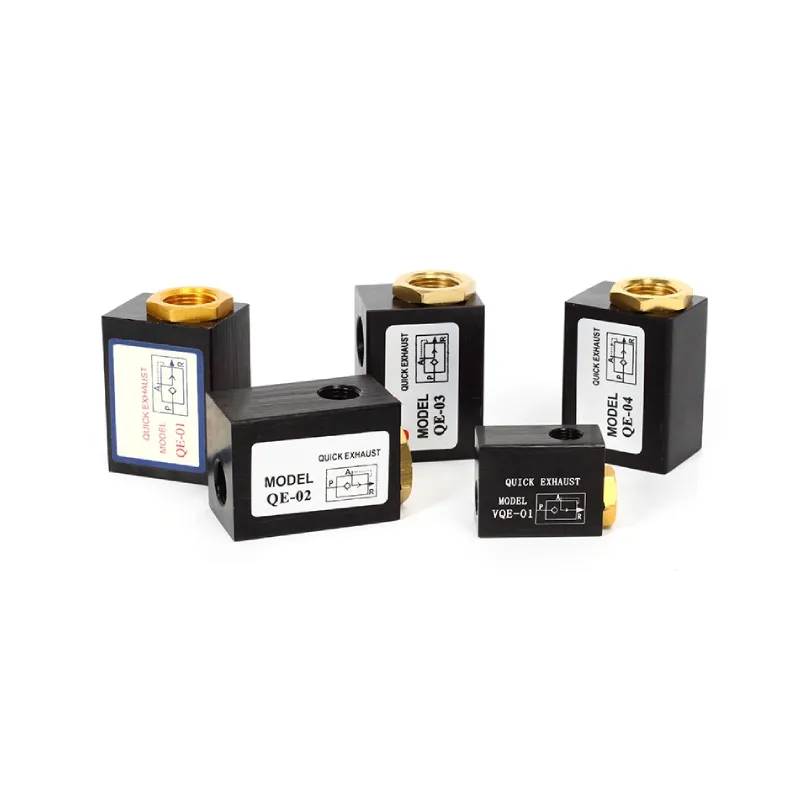

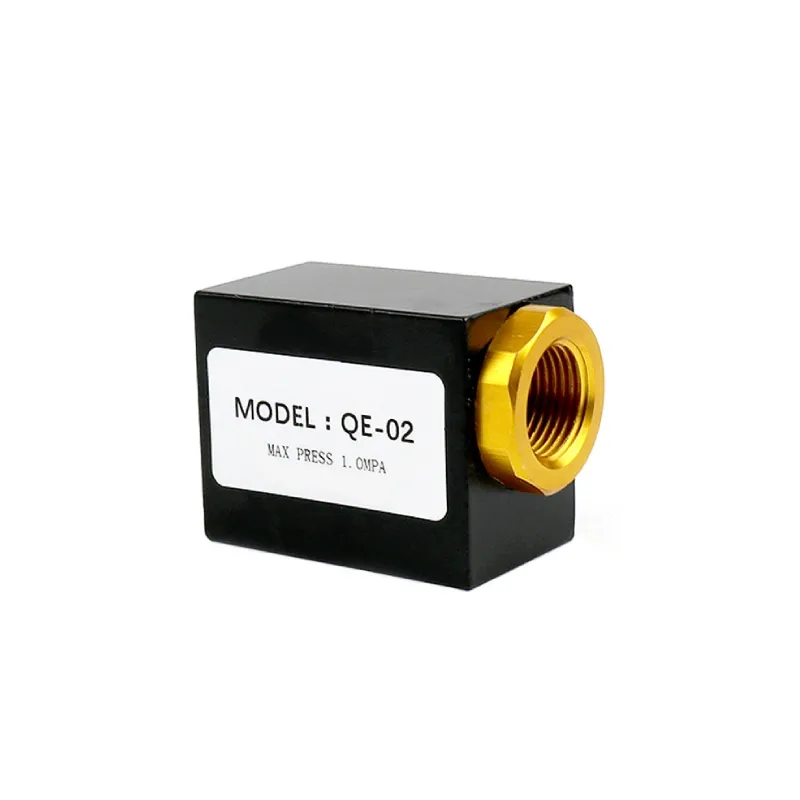

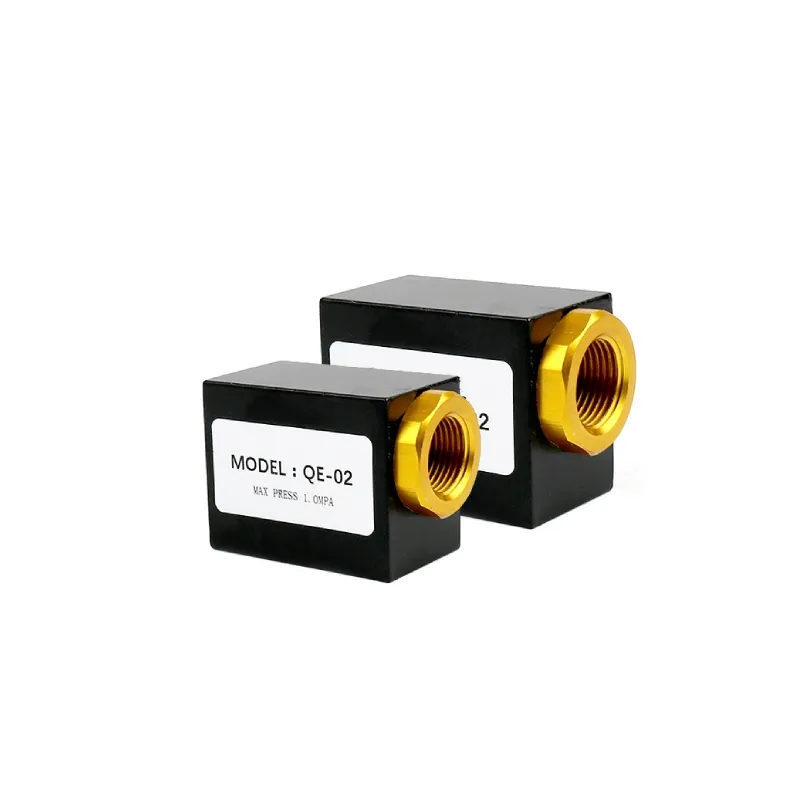

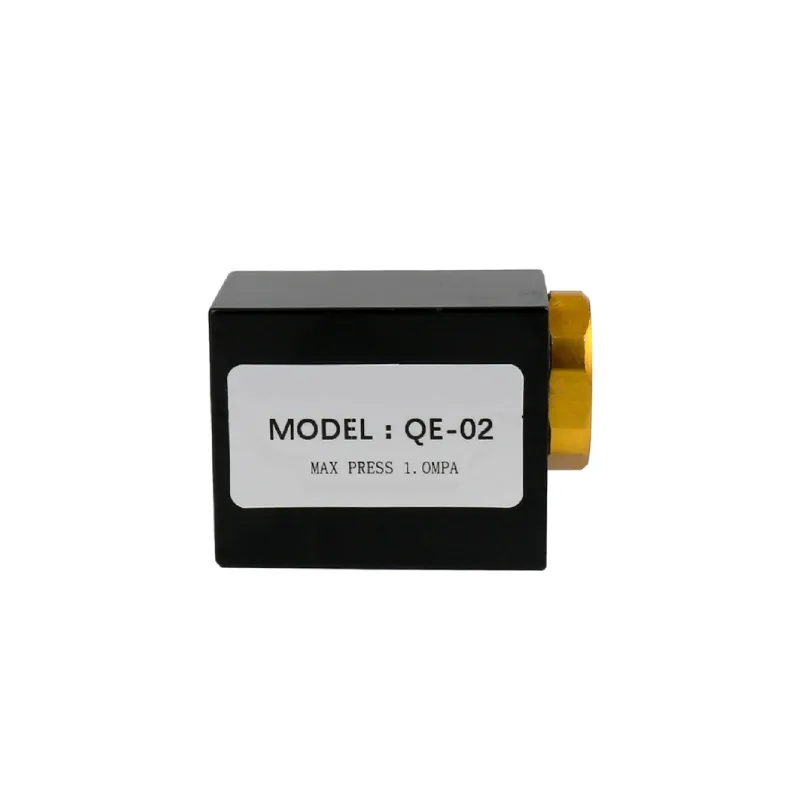

Hered Quick Exhaust Air Valve QE Series
Hered Pneumatic Co., LTD.’s Quick Exhaust Air Valve QE Series is a high-performance single-phase auxiliary component designed to rapidly discharge used compressed air from pneumatic systems. Typically installed between the cylinder and the reversing valve, these valves ensure swift exhaust of gas from the cylinder, bypassing the reversing valve for improved efficiency.
Key Features
- Rapid exhaust of used compressed air in pneumatic systems
- Multiple port sizes available: G1/8, G1/4, G3/8, G1/2
- Durable aluminum alloy construction for long-lasting performance
- NBR sealing elements for reliable operation
- Wide operating temperature range
- High proof pressure rating
Specifications
| Parameter | QE-01 | QE-02 | QE-03 | QE-04 |
|---|---|---|---|---|
| Working Medium | Compressed Air | |||
| Port Size | G1/8 | G1/4 | G3/8 | G1/2 |
| Max. Operating Pressure | 0.8MPa | |||
| Proof Pressure | 1.0MPa | |||
| Operating temp. range | 0~70℃ | |||
| Main parts material | Body: Aluminium Alloy | |||
| Sealing element: NBR | ||||
Applications
- Pneumatic cylinder systems requiring rapid exhaust
- Industrial automation equipment
- Manufacturing and assembly lines
- Packaging machinery
- Any pneumatic system where quick air exhaust is crucial for performance
Dimension
Benefits
- Improves system efficiency by allowing rapid exhaust of used air
- Reduces cycle times in pneumatic operations
- Versatile design suitable for various pneumatic applications
- Multiple port sizes available to fit different system requirements
- Robust construction ensures long-term reliability in industrial environments
- Low maintenance requirements due to high-quality materials
Hered Pneumatic Co., LTD.’s Quick Exhaust Air Valve QE Series offers an efficient and reliable solution for rapid air exhaust in pneumatic systems. The durable construction and high-performance characteristics make these valves an excellent choice for a wide range of industrial applications. Whether you’re optimizing existing equipment or designing new pneumatic systems, the QE Series provides the speed and reliability needed in today’s demanding industrial environments.
For additional technical specifications, detailed product catalogs, or customized solutions tailored to your specific pneumatic control requirements, please don’t hesitate to reach out to our technical support team. Our experienced engineers are ready to assist you in selecting the optimal components for your pneumatic systems, ensuring maximum efficiency and performance in your operations.
