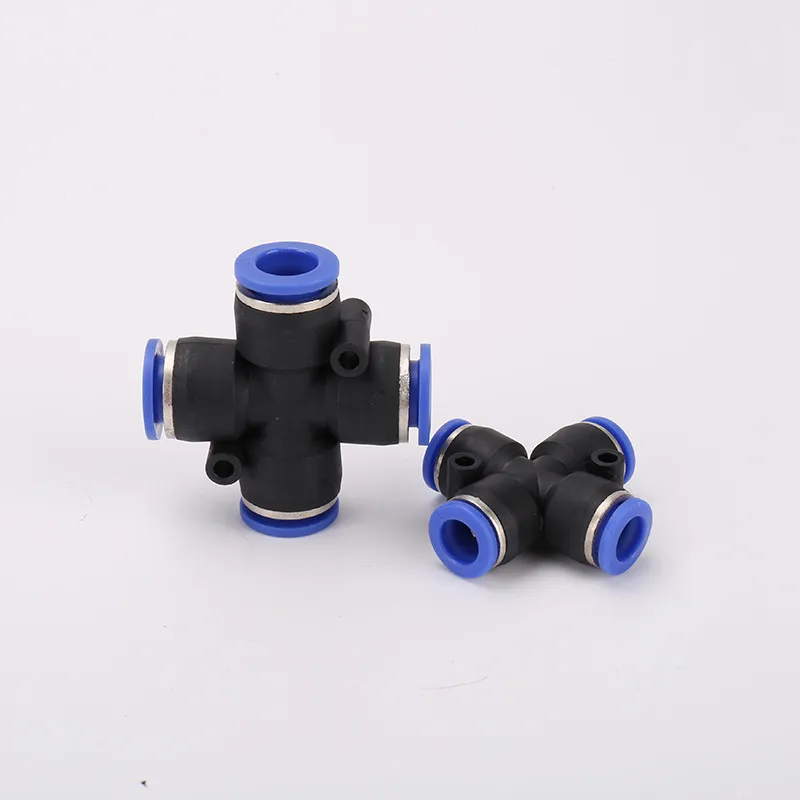

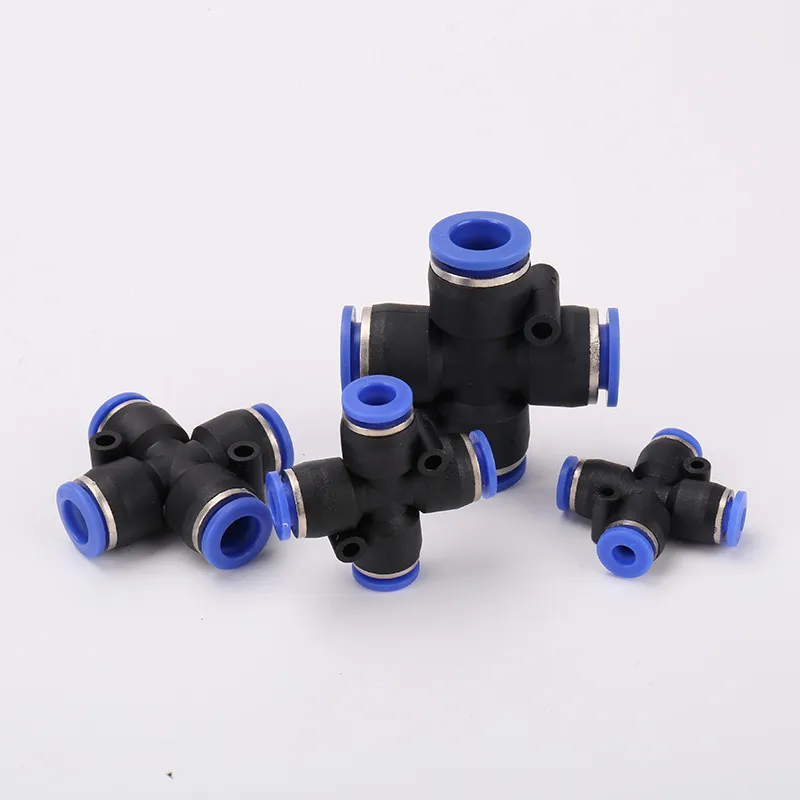

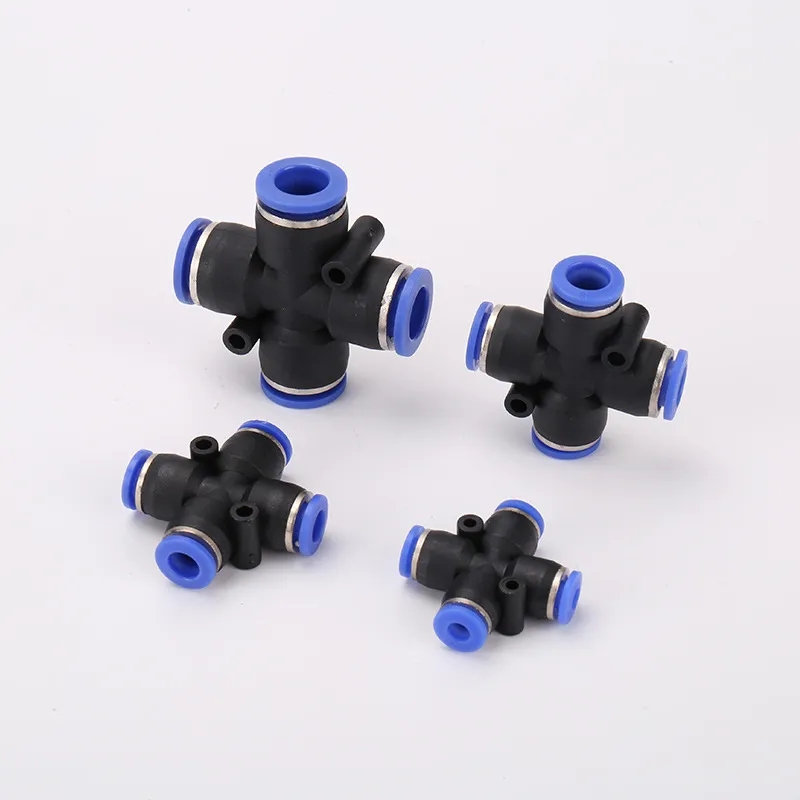

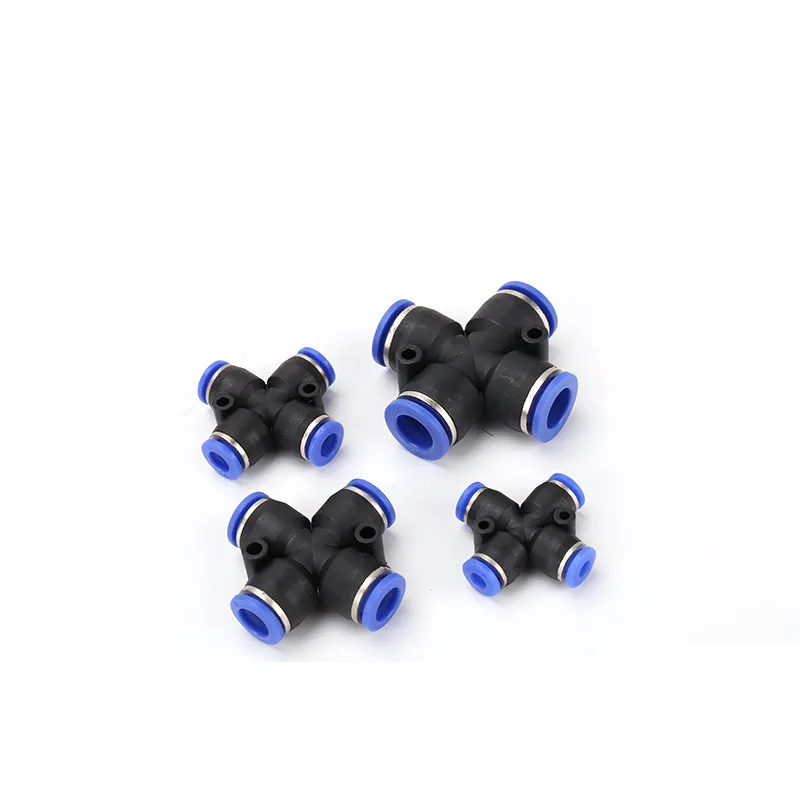

Hered PZA Series Pneumatic 4 Way Push To Connect Plastic Tube Air Fittings
The Hered PZA Series Pneumatic 4 Way Push To Connect Plastic Tube Air Fittings offer a versatile and efficient solution for creating four-way connections in pneumatic systems. These high-quality plastic fittings combine ease of installation with space-saving design, making them an excellent choice for various industrial applications.
Key Features
- 4-way push-to-connect design for quick and easy installation
- Compatible with Polyurethane and Nylon tubing
- Space-saving design for compact pneumatic systems
- Flexible tube direction adjustment after installation
- Elliptical release ring for easy dismantling
- Secure tube retention once inserted
- Pre-coated sealant on taper pipe threads for perfect sealing
- Hex-type design for convenient installation in narrow spaces
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm |
| Metric Type | φD | φD1 | φD2 | L1 | L2 | L3 |
| PZA4 | 4 | 11.5 | 3.2 | 38 | 14 | 7 |
| PZA6 | 6 | 13.5 | 3.2 | 39 | 16 | 8 |
| PZA8 | 8 | 15 | 4.2 | 45 | 18 | 9.5 |
| PZA10 | 10 | 19 | 4.2 | 57 | 24 | 12 |
| PZA12 | 12 | 21.5 | 4.2 | 59 | 26 | 13 |

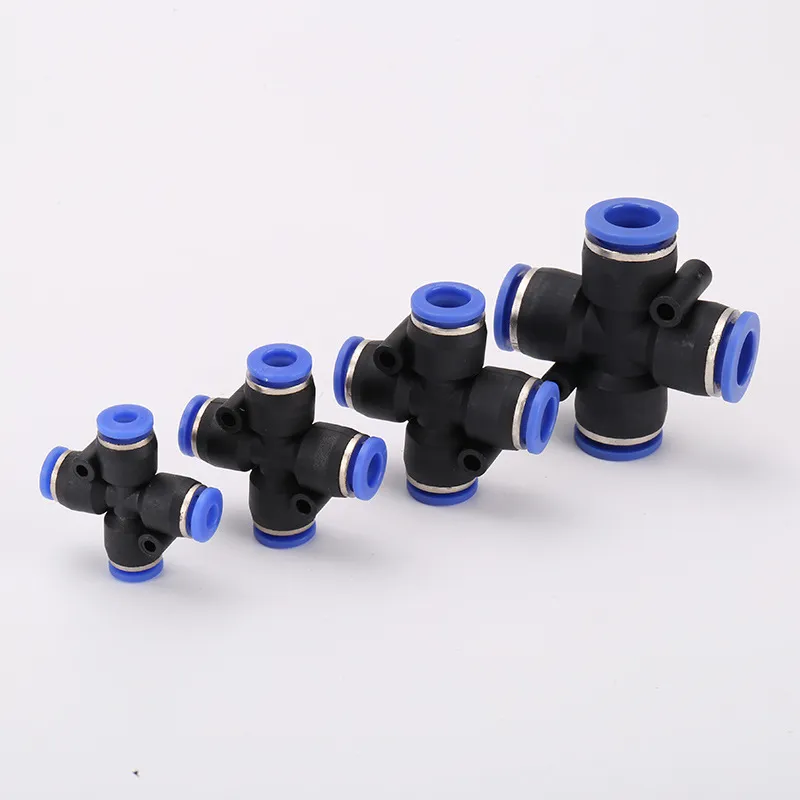

Available Models
The PZA Series includes a range of sizes to accommodate various tubing diameters:
- PZA-4
- PZA-6
- PZA-8
- PZA-10
- PZA-12
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Packaging machinery
- Robotics
- General pneumatic applications requiring 4-way connections
Benefits
- Fast and simple installation with push-to-connect design
- Space-saving configuration for compact system designs
- Versatile use with various tube sizes
- Flexible positioning with adjustable tube direction after installation
- Easy maintenance with elliptical release ring
- Secure and leak-free connections
- Convenient installation in tight spaces
- Reduced downtime and maintenance costs
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our PZA Series fittings are designed for reliable performance, excellent sealing, and long-lasting durability in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
