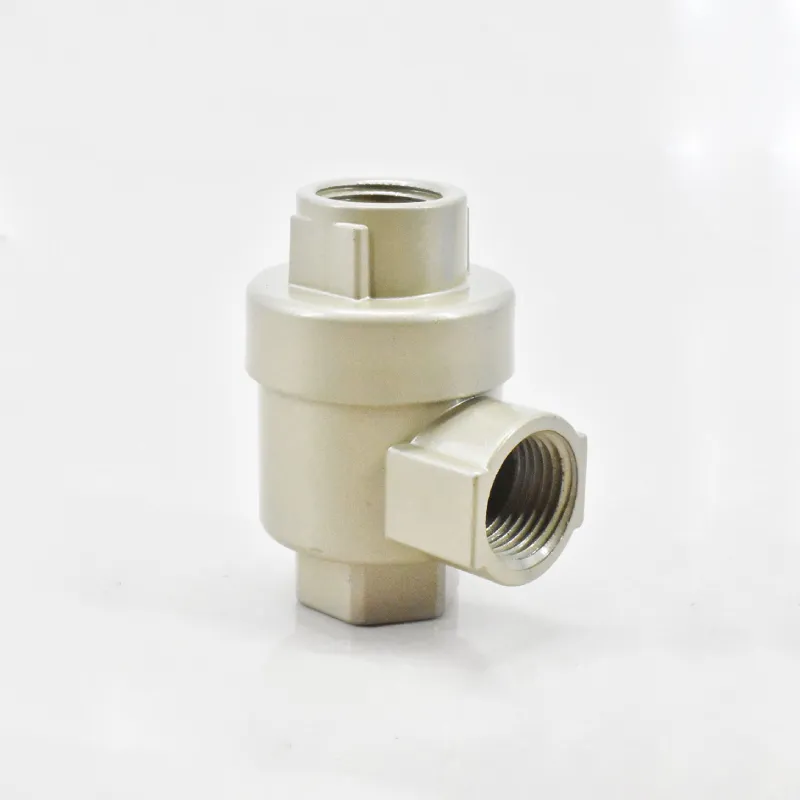

Hered Pneumatic Quick Exhaust Valve BQE Series
Hered Pneumatic Co., LTD.’s BQE Pneumatic Quick Exhaust Valve is a high-performance one-way control valve designed for unidirectional flow control in pneumatic systems. With its rational design, simple structure, and aesthetic appeal, the BQE series offers a versatile solution for a wide range of industrial applications.
Key Features
- One-way control valve for unidirectional flow
- Multiple port sizes available: PT1/8, PT1/4, PT3/8, PT1/2
- Durable copper construction for long-lasting performance
- NBR sealing elements for reliable operation
- Wide operating temperature range
- High proof pressure rating
- Simple structure and attractive appearance
Specifications
| Parameter | BQE-01 | BQE-02 | BQE-03 | BQE-04 |
|---|---|---|---|---|
| Working Medium | Compressed Air | |||
| Port Size | PT1/8 | PT1/4 | PT3/8 | PT1/2 |
| Max. Operating Pressure | 1.0MPa | |||
| Proof Pressure | 1.5MPa | |||
| Operating temp. range | 0~70℃ | |||
| Main parts material | Body: Copper | |||
| Sealing element: NBR | ||||
Dimensions
| Model | A | B | C | D | H | R |
|---|---|---|---|---|---|---|
| BQE-01 | 28 | 40 | 14.5 | 32.5 | 14 | PT1/8 |
| BQE-02 | 33 | 54 | 21 | 41 | 19 | PT1/4 |
| BQE-03 | 38 | 60 | 24 | 41 | 22 | PT3/8 |
| BQE-04 | 43 | 67 | 25 | 51.2 | 24 | PT1/2 |
Applications
- Pneumatic systems requiring unidirectional flow control
- Industrial automation equipment
- Manufacturing and assembly lines
- Packaging machinery
- Any pneumatic application where controlled, one-way air flow is crucial
Benefits
- Ensures precise unidirectional flow control in pneumatic systems
- Improves system efficiency and reliability
- Versatile design suitable for various pneumatic applications
- Multiple port sizes available to fit different system requirements
- Robust copper construction ensures long-term durability in industrial environments
- Simple structure facilitates easy installation and maintenance
Hered Pneumatic Co., LTD.’s Pneumatic Quick Exhaust Valve BQE Series offers an efficient and reliable solution for unidirectional flow control in pneumatic systems. The durable construction, high-performance characteristics, and aesthetic design make these valves an excellent choice for a wide range of industrial applications. Whether you’re optimizing existing equipment or designing new pneumatic systems, the BQE Series provides the precision and reliability needed in today’s demanding industrial environments.
For additional technical specifications, detailed product catalogs, or customized solutions tailored to your specific pneumatic control requirements, please don’t hesitate to reach out to our technical support team. Our experienced engineers are ready to assist you in selecting the optimal components for your pneumatic systems, ensuring maximum efficiency and performance in your operations.
