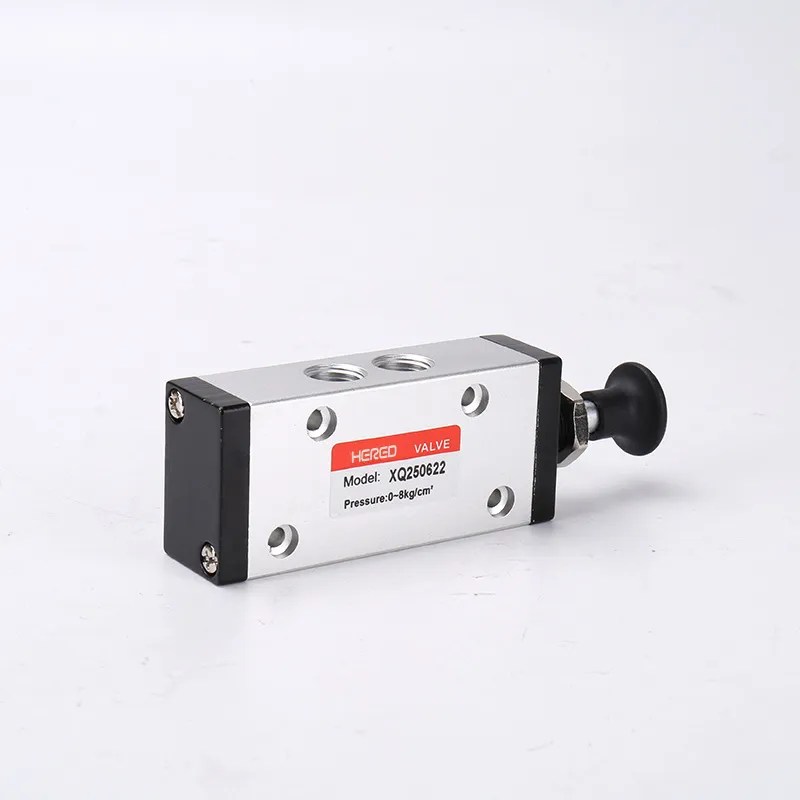

Hered XQ Series Pneumatic Mechanical Manual Valves
Hered Pneumatic Co., LTD.’s XQ Series Pneumatic Mechanical Manual Valves are high-performance control valves designed for precise manual operation in various pneumatic systems. These versatile valves offer reliable control for multiple configurations, making them ideal for a wide range of industrial applications.
Key Features
- Multiple configuration options: Two-position Three-way and Two-position Five-way
- Various actuation types: Pin-lift, Pin-lift Roller, and Hand-draw
- Durable construction for long-term reliability
- Manual operation for precise control
- Suitable for filtered air (40 Micron)
- Wide operating temperature range
- Multiple port size options
Ordering Code
| XQ | 23 | 04 | 10 |
|---|---|---|---|
| Specification Code | Position and Way 23: Two-position Three-way 24: Two-position Four-way 25: Two-position Five-way |
Port Size 04: G1/8″ 06: G1/4″ |
Type Code 10: Pin-lift Type 12: Pin-lift Roller Type 22: Hand-draw Type |
Technical Data
| Type | XQ230410 | XQ230610 | XQ250410 | XQ250610 |
|---|---|---|---|---|
| XQ230412 | XQ230612 | XQ250412 | XQ250612 | |
| XQ230422 | XQ230622 | XQ250422 | XQ250622 | |
| Working Medium | 40 Micron Filtered Air | |||
| Position and Way Number | Two-position Three-way | Two-position Five-way | ||
| Port Size | G 1/8″ | G 1/4″ | G 1/8″ | G 1/4″ |
| Working Temperature Range | 0~60°C | |||
| Effective Section Area | 14mm²(CV=0.78) | 16mm²(CV=0.89) | 14mm²(CV=0.78) | 16mm²(CV=0.89) |
| Pressure Range | 0~0.8Mpa | |||
Applications
- Industrial automation systems
- Pneumatic machinery control
- Assembly line operations
- Packaging equipment
- Material handling systems
- Pneumatic tools and fixtures
Benefits
- Versatile configurations for various pneumatic control needs
- Precise manual control for critical applications
- Robust construction ensures long-term reliability
- Wide pressure and temperature ranges for diverse environments
- Easy installation and minimal maintenance requirements
- Consistent performance in demanding industrial settings
Hered Pneumatic Co., LTD.’s XQ Series Pneumatic Mechanical Manual Valves offer a reliable and efficient solution for manual control of air flow in pneumatic systems. Their robust construction, coupled with precise control capabilities, makes these valves an excellent choice for applications requiring dependable manual operation. The XQ Series is designed to meet the demanding needs of modern industrial environments, providing consistent performance and ease of use across a wide range of applications.
For more information, detailed specifications, or to discuss how the XQ Series can be tailored to your specific application, please contact our sales team. At Hered Pneumatic Co., LTD., we’re committed to helping you find the perfect pneumatic control solution for your needs, ensuring optimal performance and efficiency in your operations.
