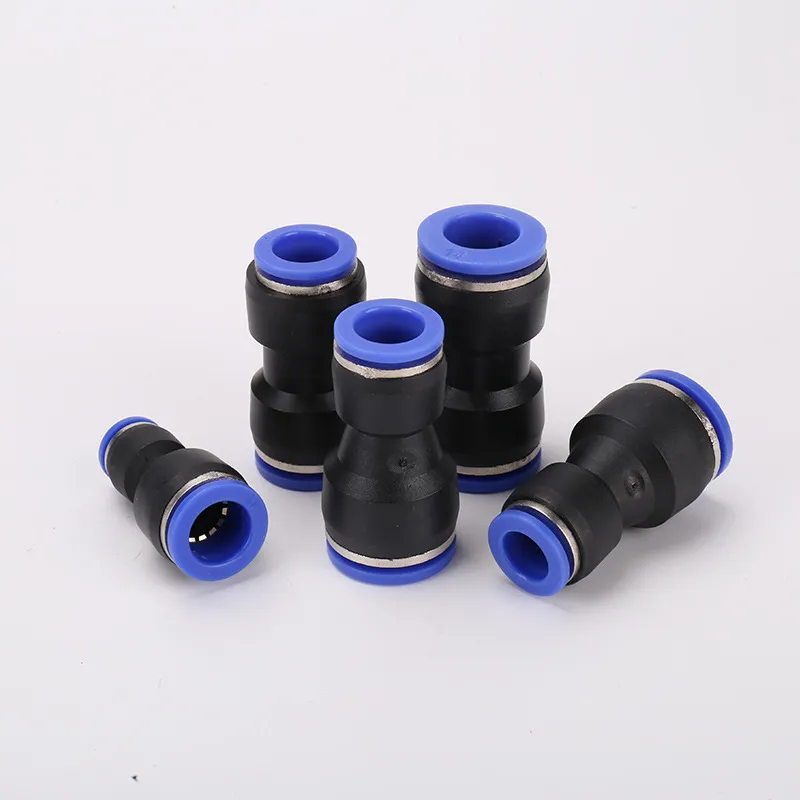

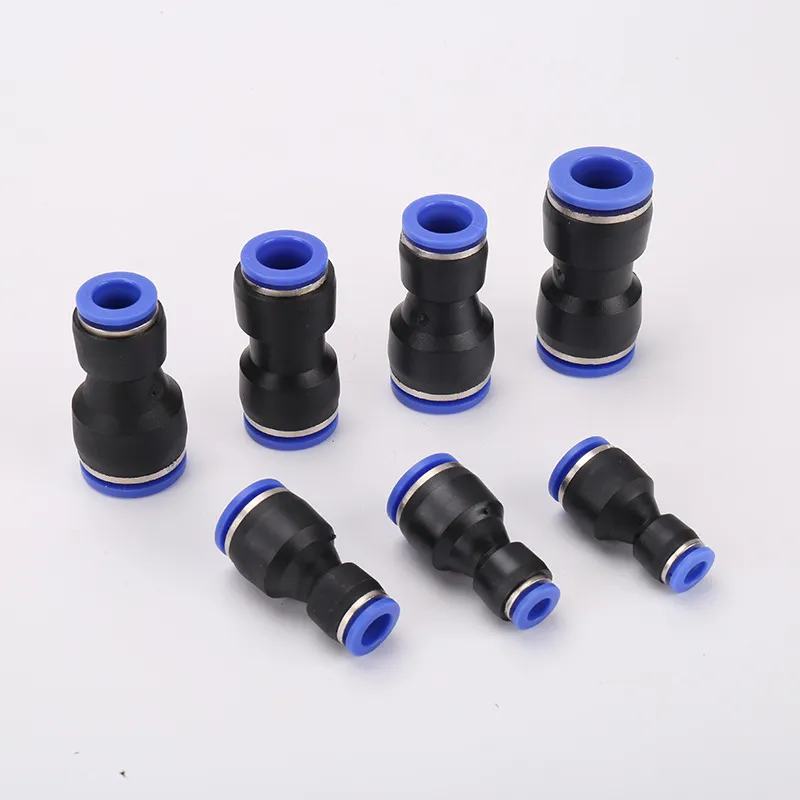

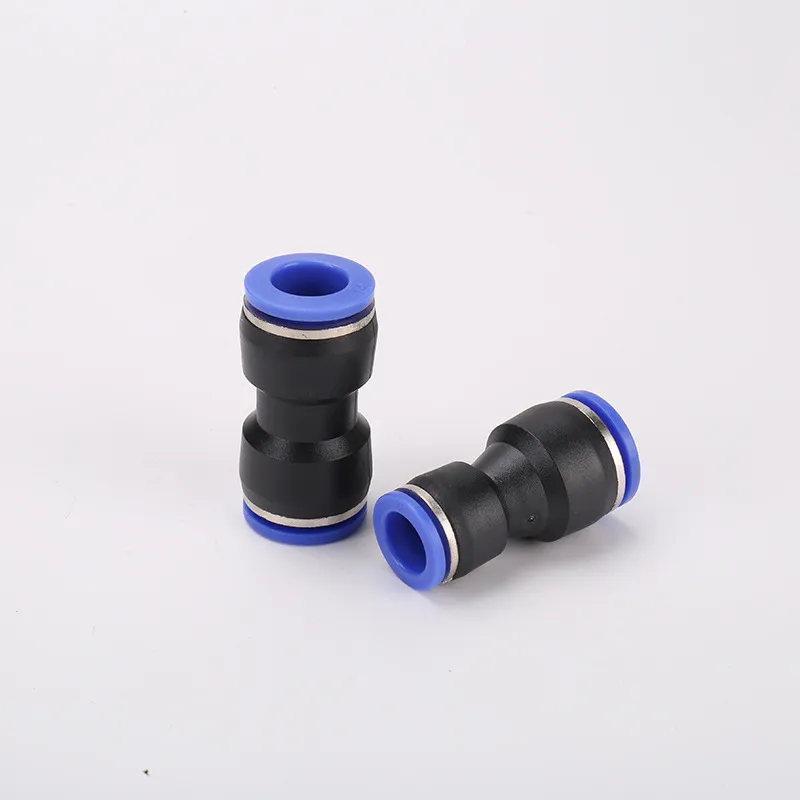

Hered PG Series Plastic Push-in Fittings Straight One Touch Change Size Reducing Tube Connector
The Hered PG Series Plastic Push-in Fittings Straight One Touch Change Size Reducing Tube Connector offers a versatile and efficient solution for connecting tubes of different sizes in pneumatic systems. These high-quality fittings combine ease of installation with reliable performance, making them an excellent choice for various industrial applications.
Key Features
- One-touch push-in design for quick and easy installation
- Straight reducer configuration for connecting different tube sizes
- High pressure resistance with secure connection
- Compatible with Polyurethane, PA, PE, and PVC tubing
- Nickel-plated brass construction for corrosion resistance
- Flexible tube direction adjustment after installation
- Hex-type design for convenient installation in narrow spaces
Technical Specifications
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 0-1.0Mpa |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
| Inch Type | Metric Type | ΦD1 | ΦD2 | B |
| PG1/4-5/32 | PG6-4 | 6 | 4 | 35 |
| PG5/16-5/32 | PG8-4 | 8 | 4 | 36.5 |
| PG5/16-1/4 | PG8-6 | 8 | 6 | 36.5 |
| PG3/8-1/4 | PG10-6 | 10 | 6 | 40 |
| PG3/8-5/16 | PG10-8 | 10 | 8 | 40.5 |
| PG1/2-1/4 | PG12-6 | 12 | 6 | 43.3 |
| PG1/2-5/16 | PG12-8 | 12 | 8 | 44 |
| PG1/2-3/8 | PG12-10 | 12 | 10 | 45.5 |
| PG14-10 | 14 | 10 | 45.5 | |
| PG14-12 | 14 | 12 | 46 | |
| PG16-12 | 16 | 12 | 48.5 | |
| PG16-14 | 16 | 14 | 67 |

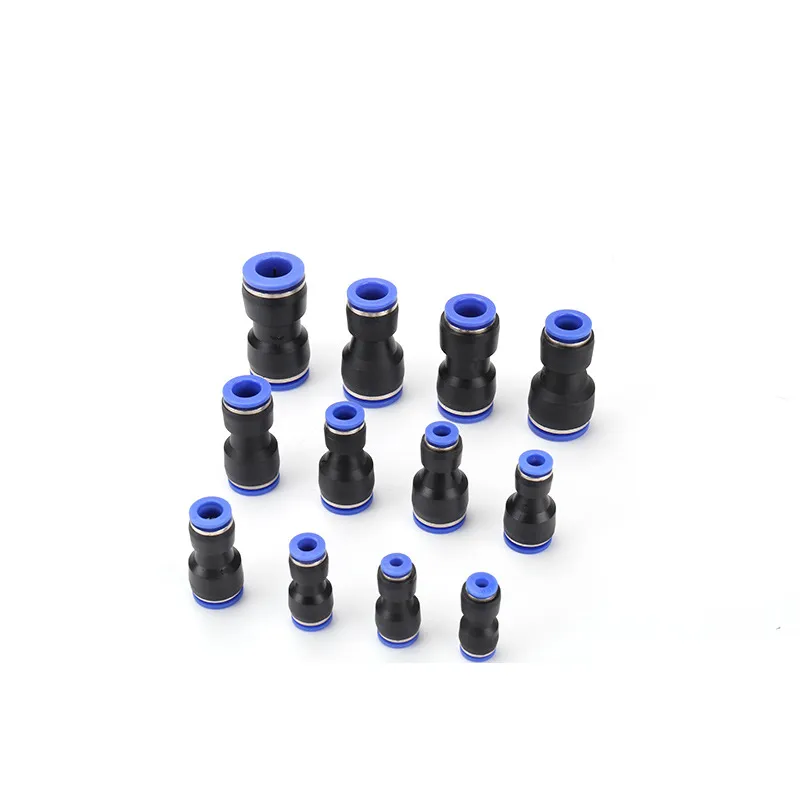

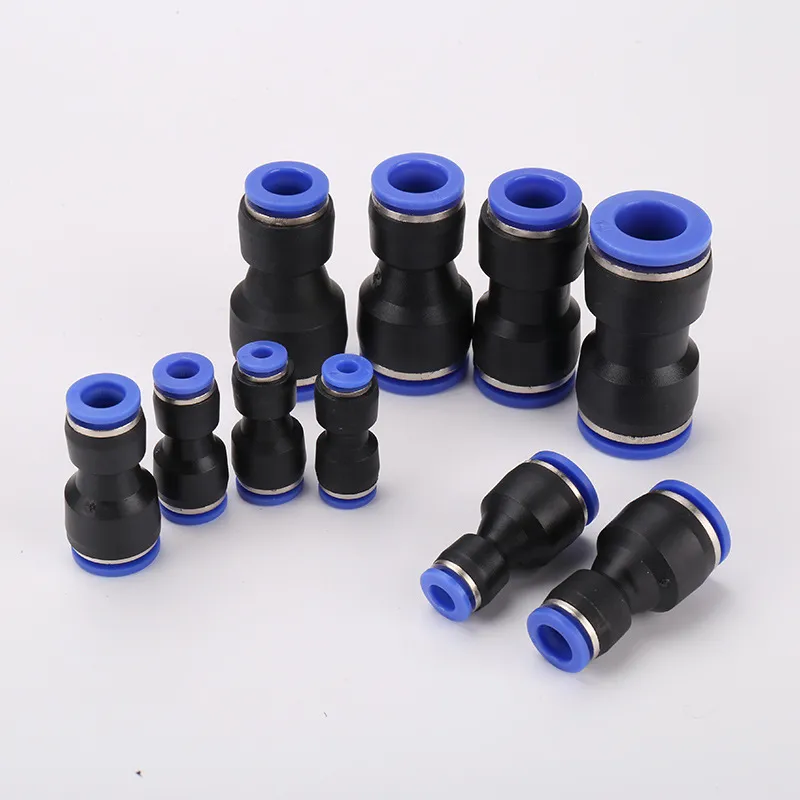

Available Models
The PG Series includes a range of size combinations to accommodate various tubing diameters:
- PG6-4, PG8-4, PG8-6
- PG10-6, PG10-8
- PG12-6, PG12-8, PG12-10
- PG14-10, PG14-12
- PG16-12, PG16-14
Applications
Ideal for various pneumatic systems in:
- Industrial automation
- Manufacturing processes
- Automotive industry
- Food and beverage processing
- Packaging machinery
- Robotics
- General pneumatic applications requiring size reduction
Benefits
- Quick and easy installation with push-in design
- Versatile use for connecting different tube sizes
- Secure connection with high pressure resistance
- Corrosion-resistant construction for long-lasting performance
- Flexible positioning with adjustable tube direction
- Easy installation in confined spaces
- Reduced maintenance and downtime
Quality Assurance
Hered Pneumatic Co., LTD. ensures high-quality production and adherence to industry standards. Our PG Series fittings are designed for reliable performance, excellent sealing, and long-lasting durability in various industrial environments.
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
