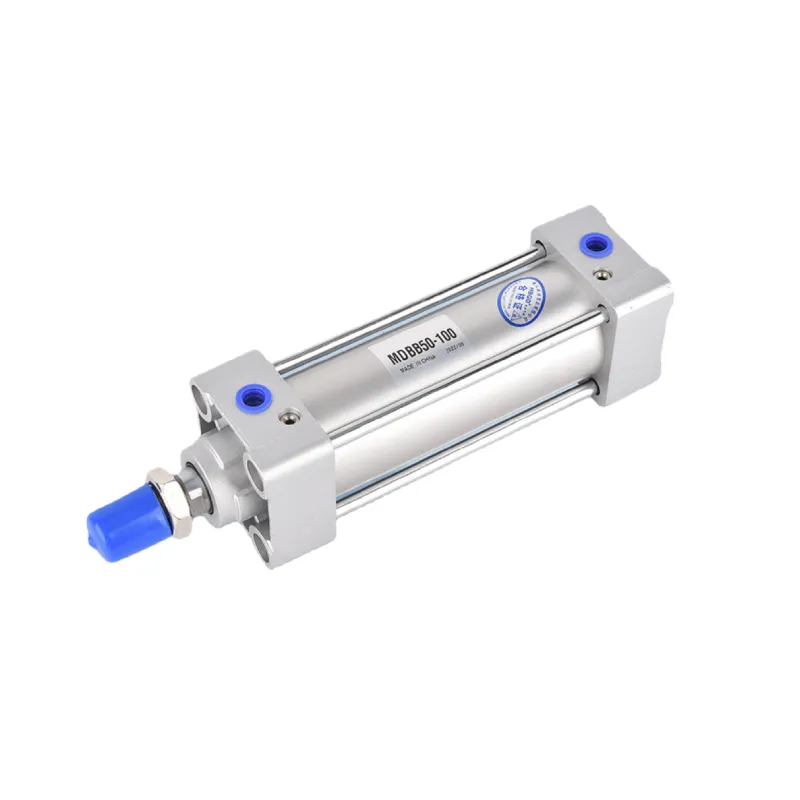

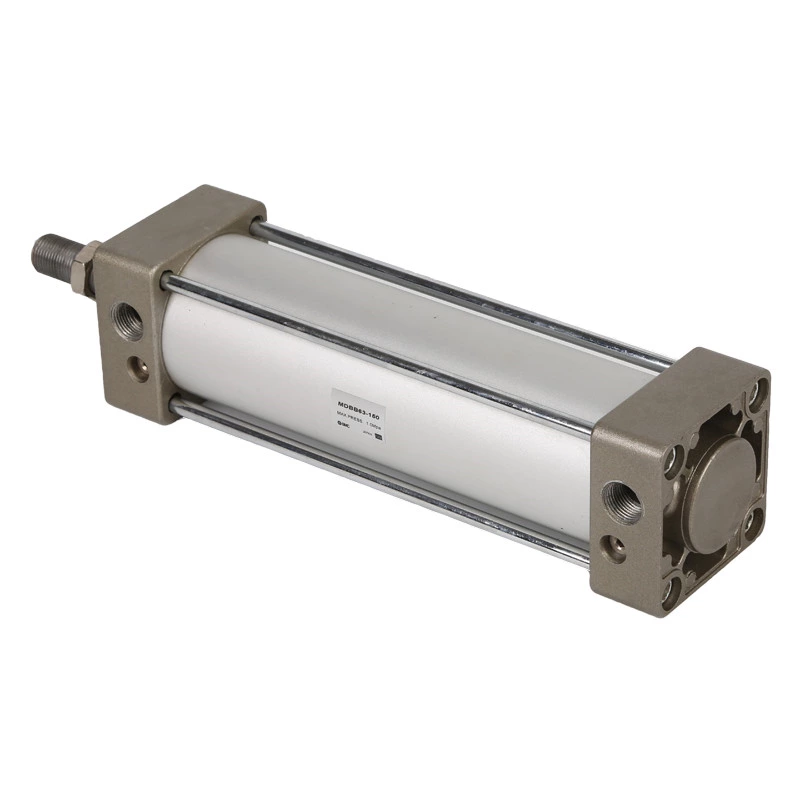

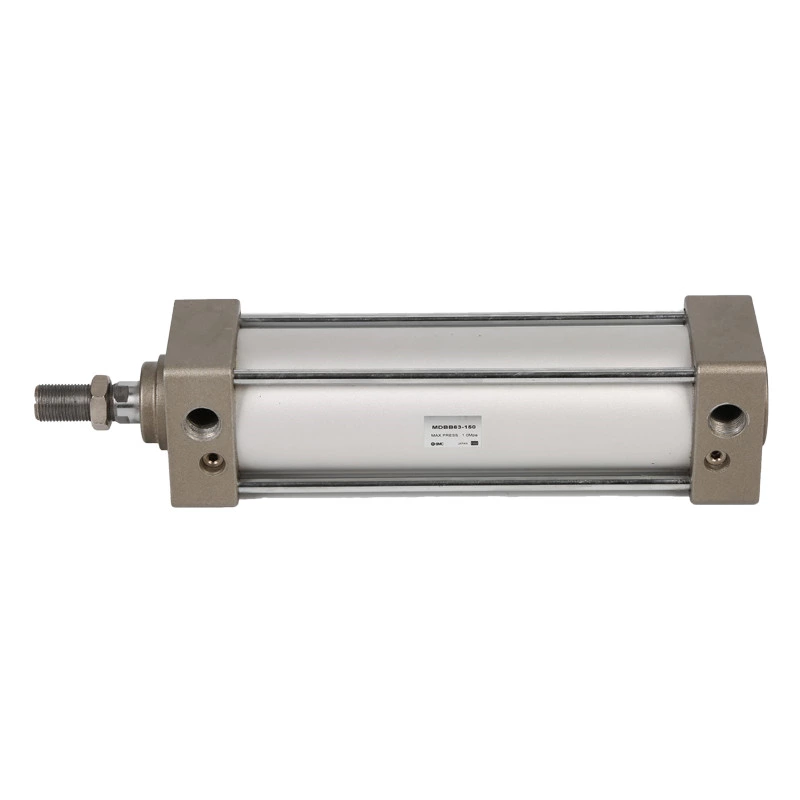

MB Series Standard Pneumatic Cylinder
The MB Series Standard Pneumatic Cylinder from Hered Pneumatic Co., LTD. is a versatile, high-performance actuator designed for a wide range of industrial applications. Featuring a maintenance-free design with oil-containing bearings, high-temperature resistance, and adjustable cushioning, this cylinder offers exceptional reliability and flexibility in various operating conditions.
Key Features
- Maintenance-free operation with oil-containing bearings
- High-temperature sealing materials for operation up to 150°C
- Adjustable air cushioning on both ends for smooth, impact-free operation
- Versatile mounting options for flexible installation
- Available with or without built-in magnets for position sensing
- Various port thread options (Rc, NPT, G)
- Wide range of bore sizes and stroke lengths
Technical Specifications
| Specification | Details |
|---|---|
| Bore Sizes | 32, 40, 50, 63, 80, 100, 125 mm |
| Action Type | Double acting |
| Working Medium | Air |
| Operating Pressure Range | Min: 0.05 MPa, Max: 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Temperature Range | Without magnetic switch: -10°C to +70°C With magnetic switch: -10°C to +60°C |
| Piston Speed | 50 ~ 1000 mm/s (32-100 mm bore) 50 ~ 700 mm/s (125 mm bore) |
| Cushion Type | Air cushion on both ends |
| Lubrication | Not required (Non-lube) |
| Port Sizes | 1/8″ (32 mm bore), 1/4″ (40-50 mm bore), 3/8″ (63-80 mm bore), 1/2″ (100-125 mm bore) |
Available Configurations
- Standard double-acting type
- With or without built-in magnet
- Various mounting options: Basic, Axial direction base, Rod flange, Without rod flange, Single earrings, Double earrings, Earrings type
- Multiple cushion options: Air cushion, Nylon canvas, Heat-resistance canvas, Rubber cushion, Both ends with air cushion
Stroke Ranges
Standard strokes available from 25 mm to 1000 mm, depending on bore size. Custom strokes up to 2700 mm can be manufactured upon request.
Applications
The MB Series Standard Cylinder is suitable for a wide range of industrial applications, including:
- Automation systems
- Manufacturing equipment
- Packaging machinery
- Material handling systems
- Assembly lines
- High-temperature environments (with appropriate sealing materials)
Advantages
- Low Maintenance: Oil-containing bearings eliminate the need for regular lubrication.
- Versatility: Wide range of bore sizes, stroke lengths, and mounting options to fit various application needs.
- Smooth Operation: Adjustable air cushioning ensures controlled deceleration at the end of strokes.
- High-Temperature Capability: Can operate in temperatures up to 150°C with appropriate sealing materials.
- Customization: Multiple options for magnetic switches, cushioning, and port threads.
Ordering Information
Use the provided order code system to specify your exact cylinder configuration, including series, magnet option, mounting type, bore size, stroke length, port thread, and cushion type.
Quality Assurance
Each MB Series Standard Cylinder undergoes rigorous quality control measures to ensure consistent performance and durability. Hered Pneumatic’s commitment to excellence guarantees a reliable and high-quality product for your industrial automation needs.
Support and Service
Our team of pneumatic specialists is ready to assist you with product selection, technical inquiries, and after-sales support. Contact Hered Pneumatic Co., LTD. today to learn how the MB Series Standard Cylinder can enhance your operational efficiency and reliability in various industrial applications.
