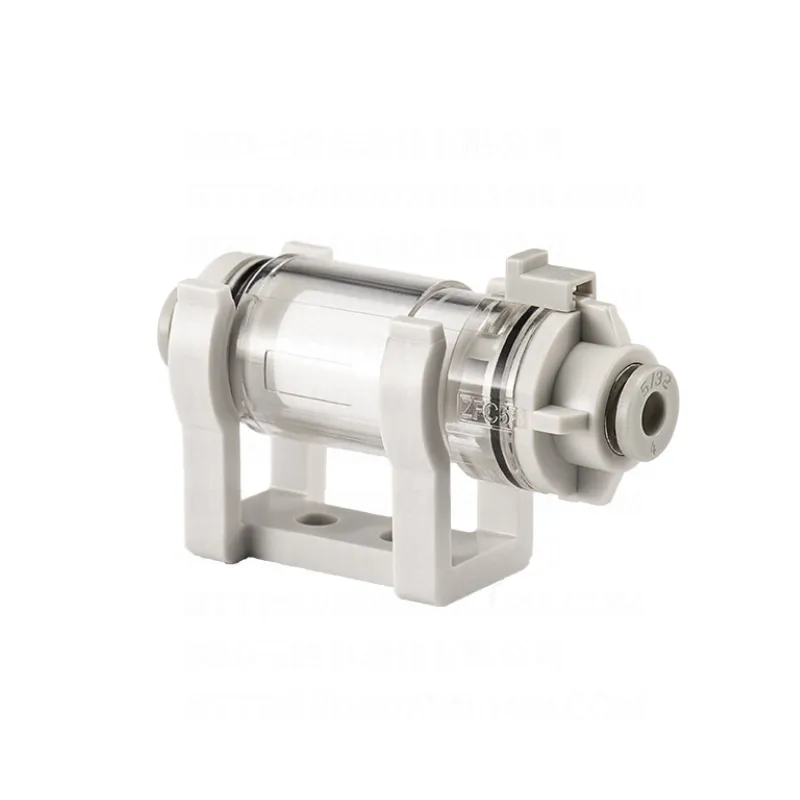

Hered In-line Air Filter ZFC Series
The Hered In-line Air Filter ZFC is a versatile pneumatic component designed to filter air in systems utilizing both positive and vacuum pressure. This advanced filter ensures clean air supply, crucial for the optimal performance and longevity of pneumatic equipment.
Key Features
- Dual Pressure Compatibility: Operates in both positive and vacuum pressure systems
- Safety Lock Mechanism: Prevents component scattering when loosened under positive pressure
- Transparent Case: Available in polycarbonate (standard) or nylon (custom order)
- Versatile Sizing: Compatible with various tubing sizes
- High Flow Capacity: Efficient air filtration with minimal pressure drop
- Multiple Filtration Options: Available in 5 μm or 10 μm ratings
Technical Specifications
| Model | ZFC1□ | ZFC3□ | ZFC5□ | ZFC7□ | |||||||
| Port size
(Applicable tubing O.D.) |
Metric size | Φ2 | Φ3.2 | Φ3.2 | Φ4 | Φ4 | Φ6 | Φ6 | Φ8 | Φ10 | Φ12 |
| Inch size | — | Φ1/8″ | Φ1/8″ | Φ5/32″ | Φ5/32″ | Φ1/4″ | Φ1/4″ | Φ5/16″ | Φ3/8″ | — | |
| Working medium | Air, Nitrogen | ||||||||||
| Working pressure | -100 kPa to 1.0 MPa (at 20°C) | ||||||||||
| Flow rate (Positive pressure) [L/min]* | 15 | 45 | 50 | 80 | 100 | 200 | 250 | 450 | 550 | 650 | |
| Flow rate (Vacuum pressure) [L/min] | 2 | 5 | 7 | 10 | 10 | 20 | 30 | 70 | 80 | 100 | |
| Proof pressure [MPa] | 1.5 (at 20°C) | ||||||||||
| Working temperature [°C] | 0 to 60 | ||||||||||
| Filtration [μm] | 5 (Filtration efficiency 95%) | ||||||||||
| Element replacement differential pressure [MPa] | 0.1 (Vacuum pressure 20 kPa) | ||||||||||
| Filtration area [mm²] | 140 | 470 | 750 | 1260 | |||||||
| Applicable tubing material | Nylon, Soft nylon, Polyurethane | ||||||||||
| Internal capacity [cm³] | 0.5 | 1.7 | 4.5 | 6.0 | 7.0 | ||||||
| Case material | Polycarbonate | ||||||||||
Dimension
Available Models
- ZFC1□ Series
- ZFC3□ Series
- ZFC5□ Series
- ZFC7□ Series
Each series is optimized for different tubing sizes and flow rate requirements.
Applications
- Pneumatic Control Systems
- Automation Equipment
- Robotics
- Packaging Machinery
- Assembly Lines
- Material Handling Systems
Benefits
- Improved System Reliability: Removes contaminants to protect downstream components
- Versatile Application: Suitable for both positive and vacuum pressure systems
- Easy Maintenance: Transparent case allows for quick visual inspection
- Safety Enhancement: Lock mechanism prevents accidental disassembly
- Customizable: Multiple models and options to fit specific system requirements
- Efficient Performance: High flow rates with effective filtration
Optional Features
- Custom case materials for specific environmental needs
- Various connection types to suit different pneumatic setups
- Special filtration ratings for unique application requirements
The Hered In-line Air Filter ZFC Series represents a significant advancement in pneumatic filtration technology. Its versatile design and efficient performance make it an excellent choice for a wide range of industrial applications where clean air supply is critical for system reliability and longevity.
For detailed specifications, customization options, or to discuss how the ZFC series can enhance your specific pneumatic system, please contact our Hered technical support team. We’re committed to providing you with top-quality pneumatic components tailored to your industrial needs.
