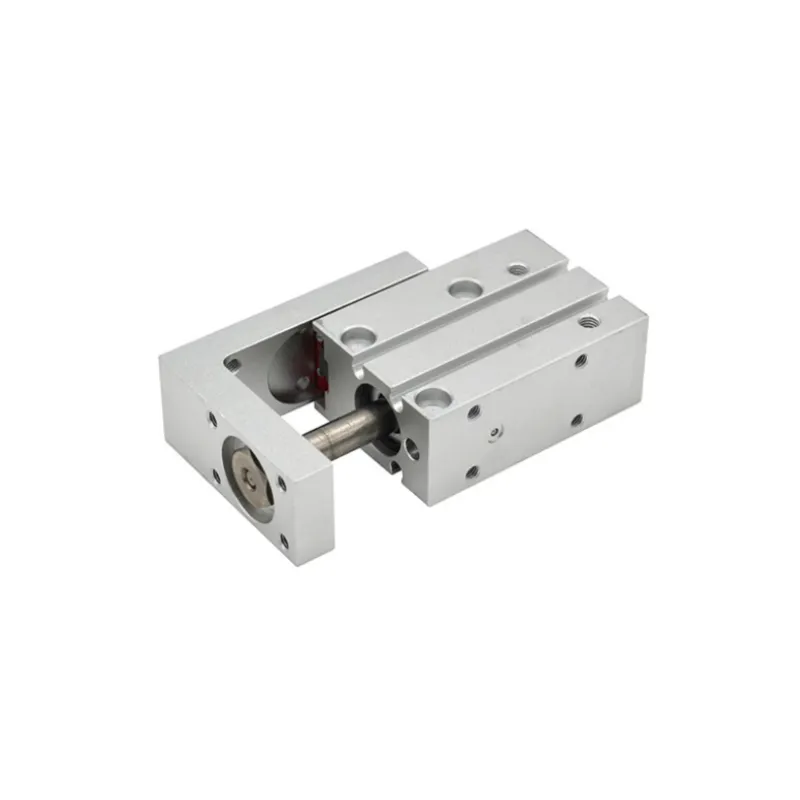

Hered HLH Series Slide Table Cylinder
The Hered HLH Series Slide Table Cylinder is a high-precision, compact pneumatic actuator designed for applications requiring accurate linear motion and substantial load capacity. It features a robust structure that integrates cross roller bearings, enhancing its performance across various industrial settings.
Key Features
- High Precision and Rigidity: Cross roller bearings ensure precise movement and stability for high-accuracy tasks.
- Double Acting: Exerts force in both directions, providing operational versatility.
- Dual Rod Design: Doubles output thrust for applications requiring significant force.
- Flexible Sizing: Available in various bore sizes and stroke lengths to meet different operational needs.
- Versatile Mounting: Multiple mounting holes and pin holes for flexible installation configurations.
- Reliable Performance: Designed to operate effectively under a range of pressures and temperatures.
- Automation-Ready: Includes slots for magnetic switches, facilitating easy integration into automated systems.
Product Characteristics
- Miniature circulating ball linear guide and cylinder – volumetric design.
- Excellent straightness and non-rotating accuracy, ideal for precision assembly.
- Four-direction cylinder mounting capability.
- Three-direction piping arrangement options.
Specifications
| Inside diameter(mm) | 6 | 10 | 16 | 20 |
|---|---|---|---|---|
| Acting type | Double acting | |||
| Fluid | Air(to be filtered by 40μm filter element) | |||
| Operating pressure | 0.2-0.7MPa(29~100psi)(2.0~7.0bar) | 0.15~0.7MPa(22~100psi)(1.5~7.0bar) | ||
| Proof pressure | 1.2MPa(175psi)(12.0bar) | |||
| Temperature ℃ | -20~70 | |||
| Speed range mm/s | 50~500 | |||
| Allowable kinetic energy(J) | 0.006 | 0.025 | 0.05 | 0.1 |
| Stroke tolerance | +60 | |||
| Cushion type | Bumper | |||
| Sensor switches [Note1] | CMSH,DMSH,EMSH | |||
| Port size | M5×0.8 | |||
Journey
| Inside diameter(mm) | Standard stroke(mm) | Maximum stroke |
|---|---|---|
| 6 | 5 10 15 20 25 30 | 30 |
| 10 | 5 10 15 20 25 30 35 40 45 50 | 50 |
| 16 | 5 10 15 20 25 30 35 40 45 50 55 60 | 60 |
| 20 | 5 10 15 20 25 30 35 40 45 50 55 60 | 60 |
[Note] Consult us for non-standard stroke.
The Hered HLH Series Slide Table Cylinder is ideal for use in automated machinery, assembly lines, and other applications where precision and reliability are critical.
