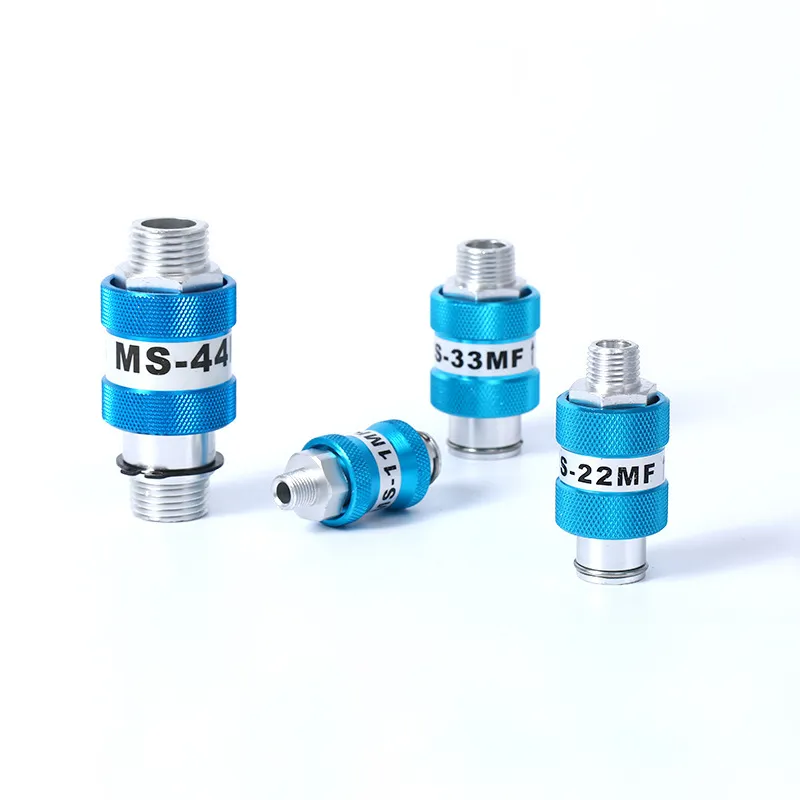

Hered MS.BMS Series Hand Slide Valves
Hered Pneumatic Co., LTD.’s MS.BMS Series Hand Slide Valves are high-performance pneumatic control valves designed for precise manual operation in various industrial applications. Available in both 5/2 way and 3/2 way configurations, these versatile valves offer reliable control for both double-acting and single-acting cylinders, making them ideal for a wide range of pneumatic systems.
Key Features
- Manual slide lever operation for intuitive control
- Available in 5/2 way and 3/2 way configurations
- Multiple port size options, including G1/4″ and G1/2″
- Durable aluminum alloy construction
- Wide operating pressure range: 0 to 10 kgf/cm²
- Broad temperature tolerance: 0 to 70°C
- Suitable for various industrial and automation applications
Specifications
| Model | MS-22MF/MM/FF, BMS-22MF/MM/FF | MS-33MF/MM/FF | MS-44MF/MM/FF | |
| Working Medium | Air | |||
| Port Size | 1/4″ | 3/8″ | 1/2″ | |
| Proof Pressure | 0~10kgf/cm² | |||
| Ambient Temperature | 0~70℃ | |||
| Main parts material | Body | MS: Aluminium Alloy; BMS: Copper | ||
| Sealing element | NBR | |||
Dimension
| Model | A | B | C | H | T1 | T2 |
|---|---|---|---|---|---|---|
| MS-11MF | 49 | 23.5 | 26.5 | 17 | G1/8 | PT1/8 |
| MS-11FF | 42 | 23.5 | 26.5 | 17 | G1/8 | G1/8 |
| MS-11MM | 57 | 23.5 | 26.5 | 17 | PT1/8 | PT1/8 |
| MS-22MF | 58 | 27 | 32 | 19 | G1/4 | PT1/4 |
| MS-22FF | 56 | 27 | 32 | 19 | G1/4 | G1/4 |
| MS-22MM | 68 | 27 | 32 | 19 | PT1/4 | PT1/4 |
| MS-33MF | 58 | 30 | 32 | 21 | G3/8 | PT3/8 |
| MS-33FF | 49 | 30 | 32 | 21 | G3/8 | G3/8 |
| MS-33MM | 68 | 30 | 32 | 21 | PT3/8 | PT3/8 |
| MS-44MF | 65 | 34 | 36.5 | 25 | G1/2 | PT1/2 |
| MS-44FF | 60 | 34 | 36.5 | 25 | G1/2 | G1/2 |
| MS-44MM | 76 | 34 | 36.5 | 25 | PT1/2 | PT1/2 |
Applications
- Industrial automation systems
- Manufacturing processes
- Pneumatic cylinder control
- Assembly line operations
- Material handling equipment
- Packaging machinery
- Pneumatic tools and fixtures
Benefits
- Simple and intuitive manual operation
- Versatile configurations for various pneumatic control needs
- Robust construction ensures long-term reliability
- Wide pressure and temperature ranges for diverse applications
- Easy installation and minimal maintenance requirements
- Consistent performance in demanding industrial environments
- Compatibility with both single-acting and double-acting cylinders
Hered Pneumatic Co., LTD.’s MS.BMS Series Hand Slide Valves offer a reliable and efficient solution for manual control of air flow in pneumatic systems. The robust aluminum alloy construction, coupled with precise control capabilities, makes these valves an excellent choice for applications requiring dependable manual operation. The MS.BMS Series is designed to meet the demanding needs of modern industrial environments, providing consistent performance and ease of use across a wide range of applications.
Whether you’re designing a new pneumatic system or upgrading existing equipment, the MS.BMS Series provides the performance, durability, and versatility needed for today’s industrial applications. Its compatibility with various pneumatic setups and ability to operate within broad pressure and temperature ranges make it a valuable component in many manufacturing and automation processes.
For more information, detailed specifications, or to discuss how the MS.BMS Series can be tailored to your specific application, please contact our sales team. At Hered Pneumatic Co., LTD., we’re committed to helping you find the perfect pneumatic control solution for your needs, ensuring optimal performance and efficiency in your operations.
