Overview:

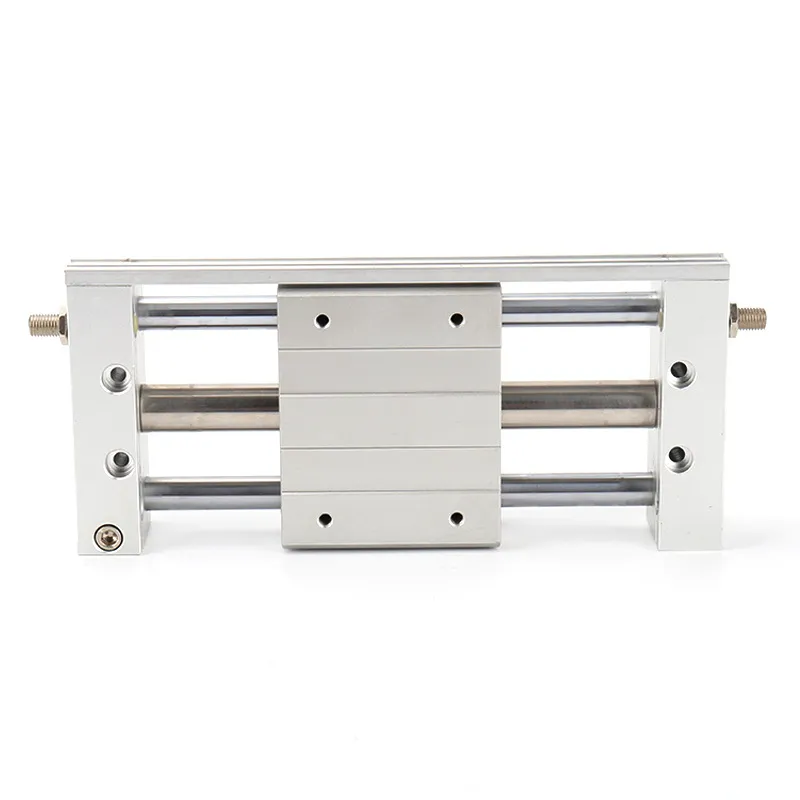

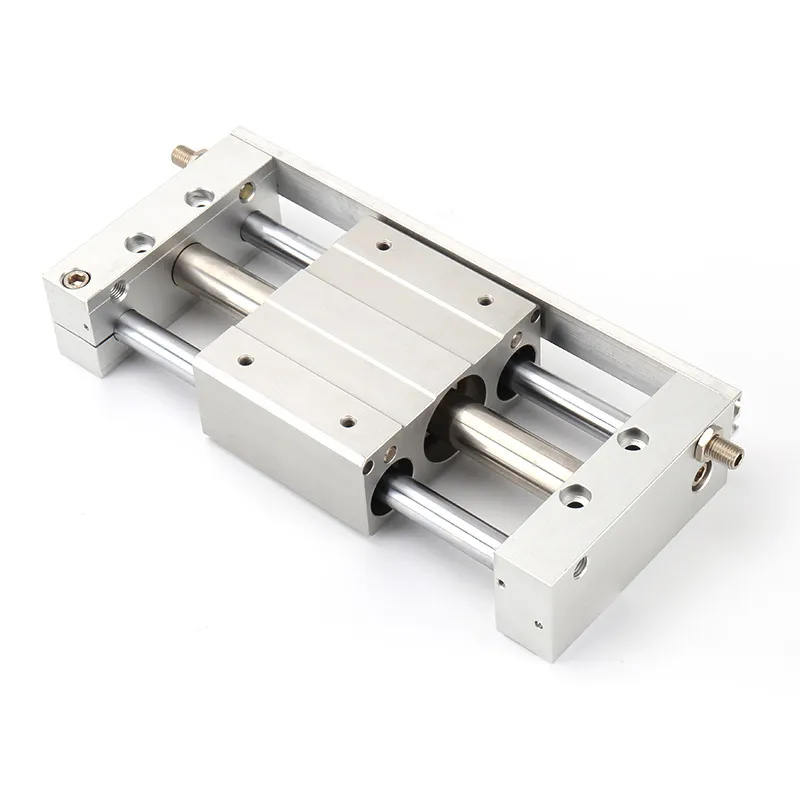

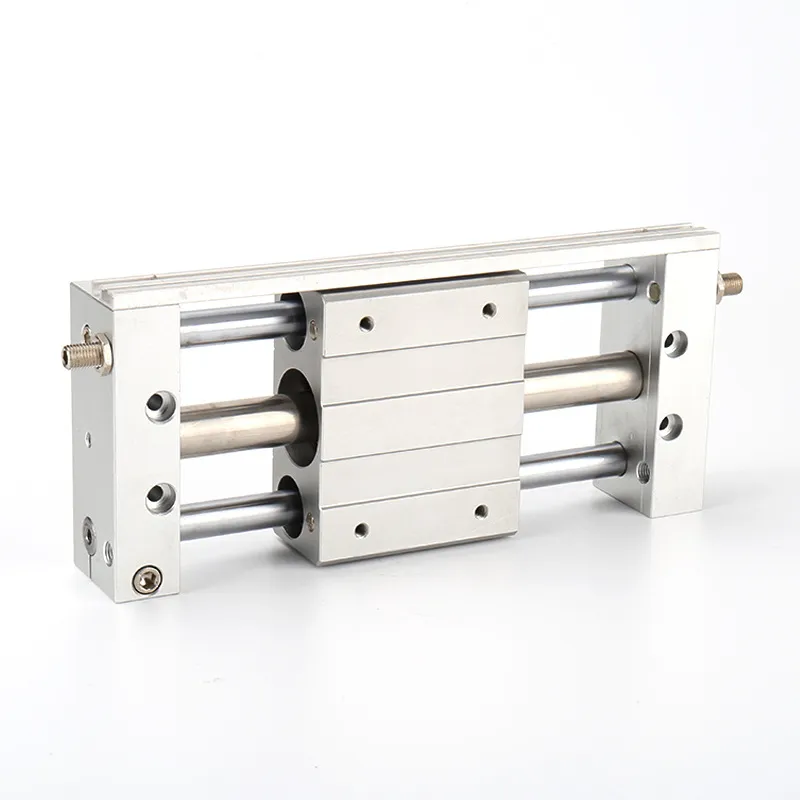

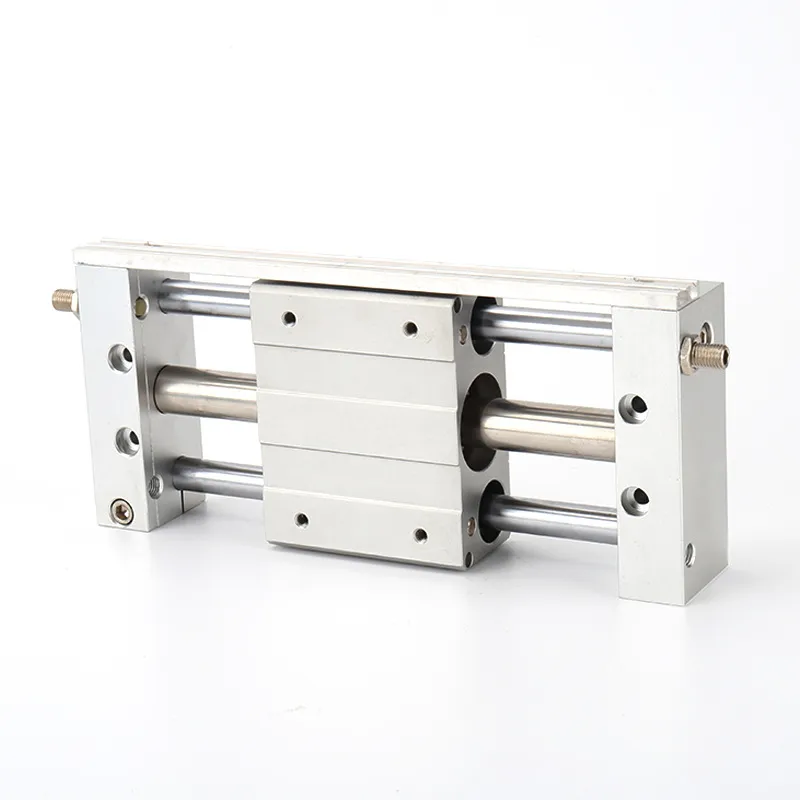

HERED RMTL Series is a high-performance guided rodless cylinder featuring magnetic coupling and ball bearing design. It offers precise linear motion with various bore sizes and customization options, making it suitable for a wide range of industrial applications requiring smooth operation and high load capacity.
Key Features
- Available bore sizes: Φ10, Φ16, Φ20, Φ25, Φ32, Φ40 mm
- Magnetic coupling between piston and carriage
- Ball bearing design for smooth operation and high precision
- Dust-proof design with isolation between carriage and piston
- Compact and space-efficient
- Adjustable pneumatic cushioning or shock absorbers on both ends
- Double guides for high precision and proper side load handling
- Non-magnetically conductive materials recommended for workpieces
Technical Specifications
| Parameter | Specification |
|---|---|
| Acting type | Double acting |
| Fluid | Air (filtered by 40μm filter element) |
| Operating pressure | 30~100psi (0.2~0.7MPa) |
| Proof pressure | 175psi (1.2MPa) |
| Temperature range | -20~70°C |
| Speed range | 50~500 mm/s |
| Cushion type | Fixed cushion or Shock absorber (Available) |
Ordering Information
Example: RMTL 20×100 S □ T
- RMTL: Series name
- 20: Bore size
- 100: Stroke length
- S: With magnet
- □: Cushion type (Blank for adjustable nuts, A for shock absorbers)
- T: NPT thread type
Installation and Application Guidelines
- Ensure the maximum load is less than the theoretical holding force (refer to provided graphs).
- Consider the relationship between loading and stroke length when selecting a model.
- Use the Load-Velocity charts for proper bore size selection in horizontal and vertical movements.
- Replace shock absorbers when a decrease in energy absorption capacity is noticed.
- Follow proper procedures for shock absorber replacement and tightening.
- Sensor switches can only be used with cylinders that have magnets.
Maintenance
- Regularly inspect and replace shock absorbers as needed.
- Never loosen the bottom screw of the shock absorber to prevent oil leakage.
- Use appropriate tightening torques for shock absorber setting nuts (refer to the provided table).
- Properly install and adjust sensor switches according to provided instructions.
Applications
The RMTL Series is suitable for various applications, including:
- Precision positioning systems
- Automated assembly lines
- Material handling equipment
- Packaging machinery
- Pick and place operations
- Applications requiring smooth, guided linear motion with high load capacity
For detailed specifications, dimensions, and customization options, please consult our product catalog or contact our technical support team. Our experts can assist you in selecting the most suitable RMTL Series Guided Rodless Cylinder configuration for your specific application needs.
