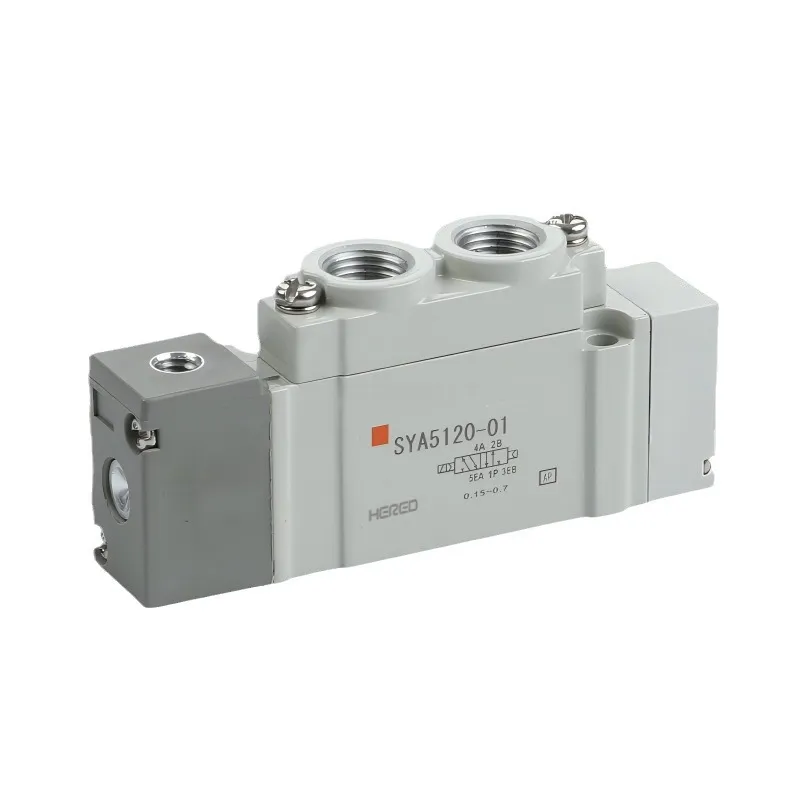

Hered SYA Series 5-Port Air-Operated Valve
Hered Pneumatic Co., LTD.’s SYA Series 5-Port Air-Operated Valve is a versatile and high-performance solution for pneumatic control systems. Available in both body ported and base mounted configurations, this series offers exceptional flexibility and compatibility with our SY series manifolds, making it an ideal choice for various industrial applications.
Key Features
- 5-port design for efficient air flow control
- Available in body ported and base mounted styles
- Compatible with SY series manifolds (non plug-in style)
- One-touch fittings for easy connection (body ported types)
- Multiple thread options: Rc, G, NPT, and NPTF
- Wide operating pressure range to suit various applications
- Durable construction for long-term reliability
- No-leak PUSH TYPE manual override
Model Selection
To order your Hered SYA Series Valve, use the following code structure:
SYA 5 1 20 - C6
- Series: SYA3000, SYA5000, SYA7000
- Function: 1 (2 Single Air Control), 2 (2 Double Air Control), 3 (3 in the sealing), 4 (3 in the vent-type), 5 (3 medium-pressure type)
- Port size: M5 (M5×8), 01 (1/8), 02 (1/4)
- A, B Higuchi over diameter: C6 (ø6), etc.
Effective Section
| Model | Effective cross-sectional area mm² (CV value) |
|---|---|
| SYA3120-M5 | 3.6(0.2) |
| SYA3220-M5 | 3.6(0.2) |
| SYA3320-M5 | 3.6(0.2) |
| SYA3420-M5 | 3.6(0.2) |
| SYA3520-M5 | 3.96(0.22) |
| SYA5120-01 | 9.18(0.51) |
| SYA5220-01 | 9.18(0.51) |
| SYA5320-01 | 7.38(0.41) |
| SYA5420-01 | 7.56(0.42) |
| SYA5520-01 | 10.62(0.59) |
| SYA7120-02 | 16.2(0.9) |
| SYA7220-02 | 16.2(0.9) |
| SYA7320-02 | 12.06(0.67) |
| SYA7420-02 | 11.88(0.66) |
| SYA7520-02 | 17.1(0.95) |
Common Specifications
| Series | Parameters |
|---|---|
| Operating pressure range Mpa | 2 Single Air Control: 0.15 – 0.7 |
| 2 Double Air Control: 0.1 – 0.7 | |
| 3: 0.2 – 0.7 | |
| Pilot pressure range Mpa | 2 Single Air Control: 0(+0.7P) – 0.7 |
| 2 Double Air Control: 0.1 – 0.7 | |
| 3: 0.2 – 0.7 | |
| Ambient temperature and medium temperature °C | ≤60 |
| Manual | No lock-PUSH TYPE |
| To oil | Not required |
| Installation position | Freedom |
| Shock / vibration resistance m/s² | 150/30 |
Dimension
Applications
- Automated production lines
- Robotic systems
- Packaging machinery
- Material handling equipment
- Automotive assembly
- Food and beverage processing
- Pharmaceutical manufacturing
Benefits
- Versatile configuration options to meet various application requirements
- Easy integration with existing pneumatic systems
- High flow capacity for efficient operation
- Durable construction ensuring long-term reliability in industrial environments
- No lubrication required, reducing maintenance needs
- Flexible installation options with freedom of positioning
- Resistant to shock and vibration for stable performance
Hered Pneumatic Co., LTD.’s SYA Series 5-Port Air-Operated Valve offers a comprehensive solution for precise pneumatic control in various industrial applications. With its versatile design, compatibility with SY series manifolds, and robust performance characteristics, this valve series ensures optimal efficiency and reliability in your pneumatic systems. Choose Hered’s SYA Series for a flexible, high-performance solution tailored to meet your specific pneumatic control needs.
For more information, customization options, or to place an order, please contact our sales team. We’re committed to helping you find the perfect Hered SYA Series Valve configured to your exact specifications.
