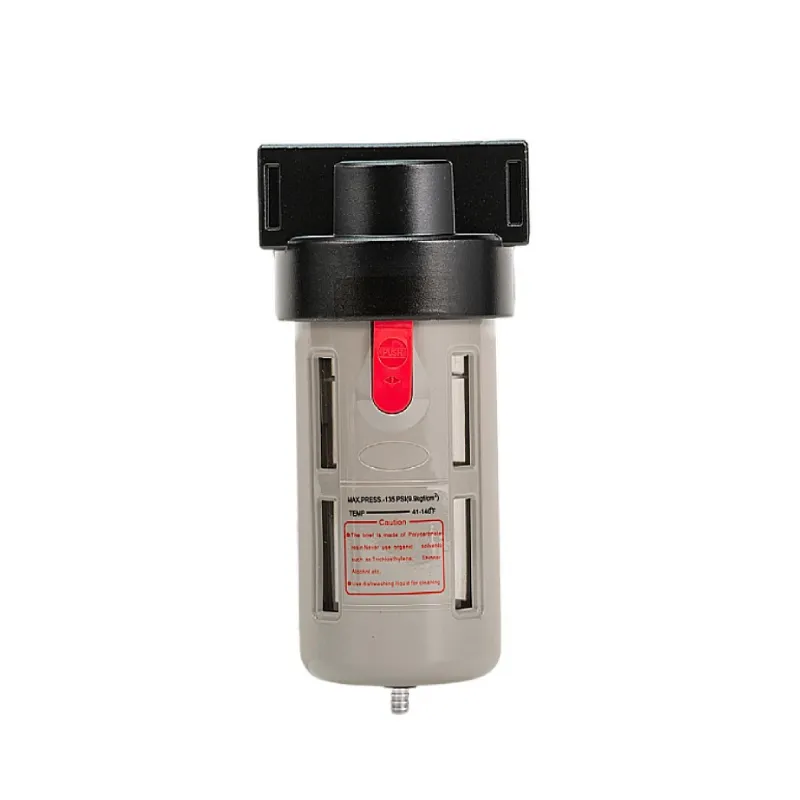

Hered AF,BF Series Air Filters
The Hered AF and BF Series Air Filters are designed to provide clean, high-quality compressed air for pneumatic systems. These filters effectively remove fluid oil, condensation, and dirt particles, ensuring optimal performance and longevity of your air-powered equipment.
Key Features
- Efficient water separator for thorough cleaning of compressed air
- Available in small (AF) and middle (BF) sizes to suit various applications
- Multiple port size options for flexible installation
- Manual or automatic drain options
- Compatible with various thread types (PT, NPT, etc.) per customer requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Medium | Compressed Air |
| Grade of Filtration | 40μm |
| Working Pressure Range | 0~1.0 MPa |
| Proof Pressure | 1.5MPa |
| Temperature Range | 5°C~60°C |
| Container Material | Polycarbonate |
Available Models
- AF Series (Small size): AF1500 (G1/8), AF2000 (G1/4)
- BF Series (Middle size): BF2000 (G1/4), BF3000 (G3/8), BF4000 (G1/2)
Key Differences
- AF Series: Compact design with 15ml filter cup capacity
- BF Series: Larger capacity with 60ml filter cup and available protective cover
Dimensions
Our AF and BF Series filters are designed for easy integration into your pneumatic systems. Please refer to the detailed dimension sheets for specific measurements of each model.
Applications
Ideal for various industrial pneumatic systems where clean air is crucial for optimal performance of air-powered tools and equipment. Suitable for manufacturing, automation, and process control industries.
For more detailed specifications, installation guidelines, and customization options, please consult our product catalog or contact our technical support team.
