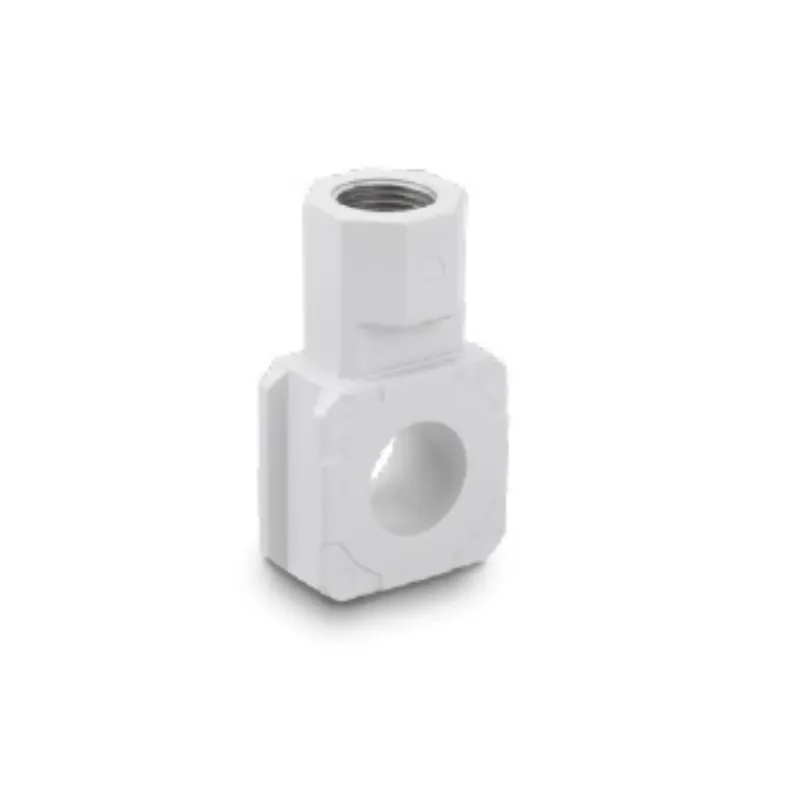

AC Series Air Combination T-Spacer
Using a T-spacer facilitates the branching of air flow.
Dimensions
Technical Specifications
| Note) Model | Port Size | A | B | C | D | E | Applicable model |
|---|---|---|---|---|---|---|---|
| Y110-M5 | M5×0.8 | 11 | 19 | 12 | 14 | 8 | AC10 · AC10B |
| Y210-□01 | 1/8 | 15 | 42 | 32 | 28 | 19 | AC20 · AC20B · AR20C |
| Y210-□02 | 1/4 | ||||||
| Y310-□01 | 1/8 | 15 | 53 | 39 | 30 | 19 | AC25 · AC25B · AC25C · AC30 · AC30B · AC30C |
| Y310-□02 | 1/4 | ||||||
| Y410-□02 | 1/4 | 19 | 62 | 44 | 36 | 24 | AC40 · AC40B · AR40C |
| Y410-□03 | 3/8 | ||||||
| Y510-□02 | 1/4 | 19 | 66 | 46 | 44 | 24 | AC40-06-AC40B-06 AC40C-06 |
| Y510-□03 | 3/8 | ||||||
| Y610-□03 | 3/8 | 22 | 81 | 57 | 53 | 30 | AC50 · AC55 · AC60 · AC50B · AC55B · AC60B |
| Y610-□04 | 1/2 |
Note) in the □ within the model that the type of connecting thread, Rc credited to “no sign” NPT credited to “N” G credited to “F”
For more information, customization options, or to place an order, please contact our sales team. We’re committed to helping you find the perfect Hered IR Series Precision Regulator tailored to your specific pneumatic system requirements.
