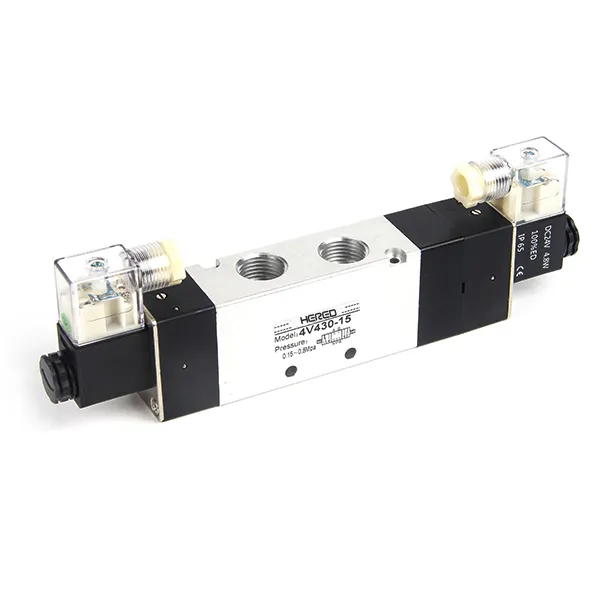

Hered 4V400 Series 5/2 and 5/3 Way Solenoid Valves
The Hered 4V400 Series offers high-performance 5/2 and 5/3 way solenoid valves designed for precise pneumatic control in heavy-duty industrial applications. These valves combine robust construction with advanced functionality.
Key Features

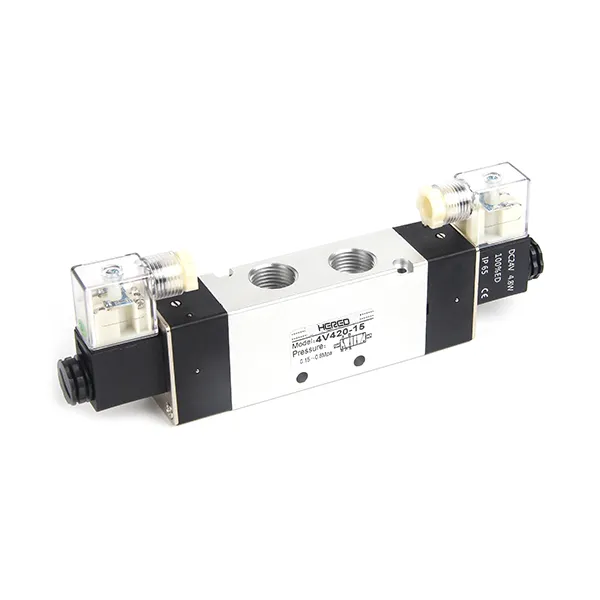

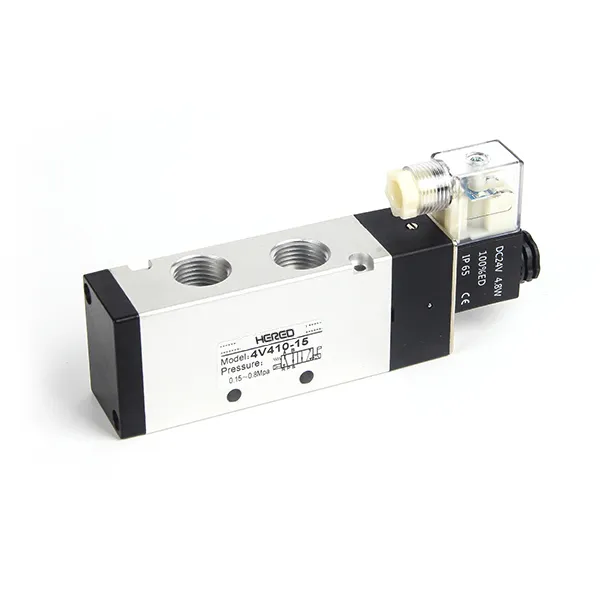

- Available in single head (4V410-15) and double head (4V420-15) configurations
- Inner guide type design for smooth operation
- Aluminum alloy body for durability
- NBR or VITON sealing material options
- Fast response with 5 cycles/second action frequency
- Short excitation time of 0.05 seconds
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Medium | 40μ Filtered Air |
| Working Pressure | 0.15~0.8 MPa |
| Proof Pressure | 1.2MPa |
| Temperature Range | -5°C~50°C |
| Port Size | G1/2 |
| Effective Section Area | 50 mm² |
| Cv Value | 2.79 |
Electrical Specifications
- Available Voltages: DC5V, DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V
- Power Consumption: Varies by model and voltage
- Voltage Range: ±10%
Additional Features
- Internal or external pilot operation options
- Sliding column structure for improved sealing and responsiveness
- Low-friction internal design for reduced starting pressure and extended lifespan
- Suitable for integration into valve manifolds
- IP65 protection grade
- Various thread types available (e.g., PT, NPT) to meet customer requirements
Applications
Ideal for high-flow, heavy-duty pneumatic systems in manufacturing, automation, and process control industries where precise and reliable air flow management is critical. The 4V400 series is designed for applications requiring larger flow capacities and robust performance.
For detailed specifications, installation guidelines, and customization options, please consult our product catalog or contact our technical support team.
