GFR300 Airtac type Air Filter Regulator FRL units GFR Series

Hered GFR300 Air Filter Regulator: High-performance pneumatic component combining filtration and pressure regulation. Part of the GFR series (200, 300, 400) with port sizes G1/4, G3/8, and G1/2 respectively. Operates at 0.050.85MPa pressure range with 1.5MPa max proof pressure. Features 40μm (standard) or 5μm (custom) filter precision. Aluminum alloy body with PC cup construction. 40ml water cup capacity. Suitable for temperatures -2070℃. Offers manual, semi-automatic, and automatic drain options. Includes balanced pressure adjustment design and embedded pressure gauge. Optional mounting bracket available. Ideal for manufacturing, food processing, construction, automotive, and packaging industries. Enhances pneumatic system efficiency and reliability with consistent air quality and pressure control in a compact, versatile unit….

Send your requirements, we will quote for you within 12 hours

Tel:+8618066396588

Product Overview

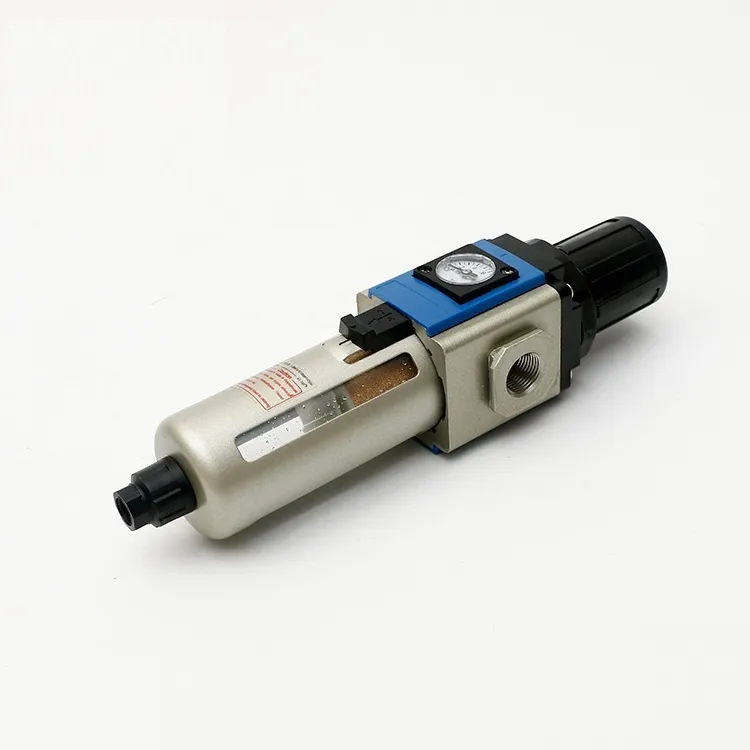

The Hered GFR300 Air Filter Regulator is a high-performance component of FRL (Filter, Regulator, Lubricator) units, designed for efficient air treatment in pneumatic systems. It combines filtration and pressure regulation in a single, compact unit, suitable for various industrial applications.

Order Code

Technical Specification

Model GFR-200 GFR-300 GFR-400
Working Media Compressed Air
Port Size G1/4 G3/8 G1/2
Pressure Range 0.05~0.85MPa
Max. Proof Pressure 1.5MPa
Water Cup Capacity 10ml 40ml 80ml
Filter Precision 40 μ m(Normal)or 5 μ m(Customized)
Ambient Temperature -20~70℃

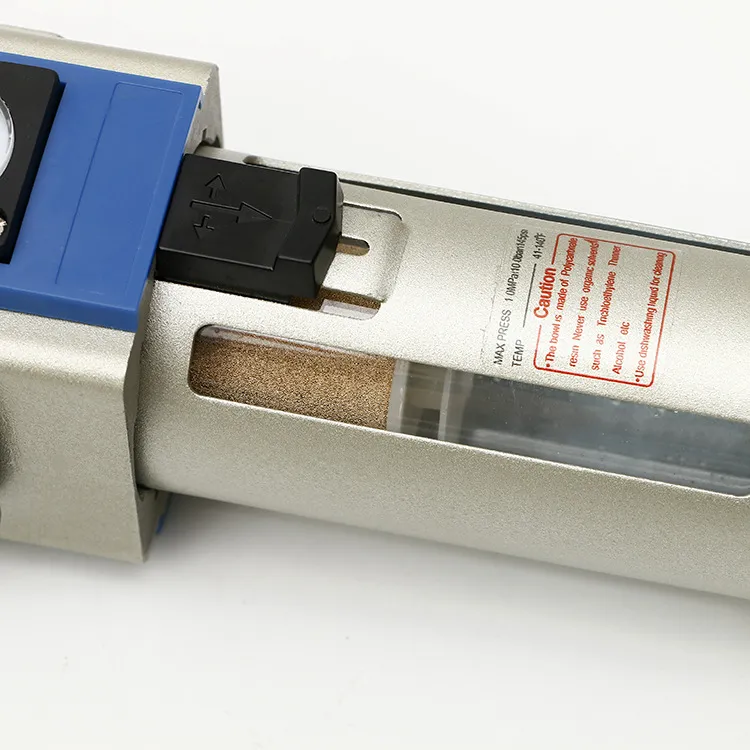

Material Body : Aluminum Alloy; Cup : PC

Dimension

Model A AB AC B BA BC C D K KA KB KC P PA Q
GFR-200 55 34 28 62 30 32 161 M30×1.5 5.5 27 8.4 48 G1/4 93 G1/8
GFR-300 80 72 52 90 50 40 270.5 M55×2.0 6.5 52 11 53 G3/8 165.5 G1/4
GFR-400 80 72 52 90 50 40 270.5 M55×2.0 6.5 52 11 53 G1/2 165.5 G1/4

Key Features

  • Versatile Drainage Options: Offers manual, semi-automatic, and automatic drain types to suit various operational needs.
  • Advanced Pressure Adjustment: Features a balanced design for precise pressure adjustment and a self-locking mechanism to maintain settings.

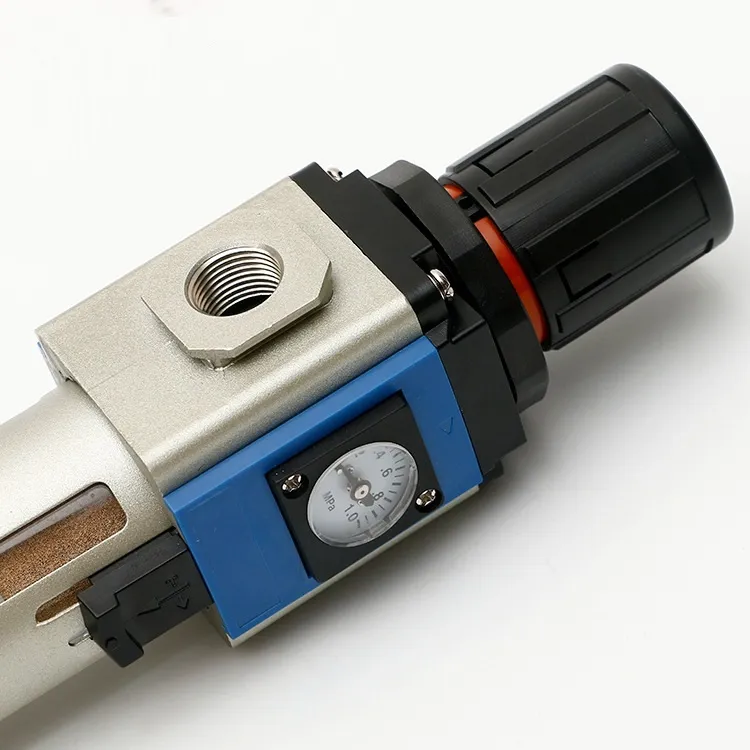

  • Space-Saving Design: Includes an embedded square pressure gauge, with an option for an external circular gauge.
  • Efficient Filtration: Unique airflow design effectively separates liquid from air and filters solid particles.
  • Flexible Installation: Optional bracket available for versatile mounting solutions.

Applications

The Hered GFR300 Air Filter Regulator is widely used across various industries, including:

  • Manufacturing
  • Food and Beverage Processing
  • Construction
  • Automotive
  • Packaging
  • Any industry requiring reliable compressed air treatment

Benefits

  • Combines filtration and pressure regulation in one compact unit
  • Enhances pneumatic system efficiency and reliability
  • Provides consistent air quality and pressure for downstream equipment
  • Reduces maintenance requirements with multiple drainage options
  • Adaptable to various industrial environments and applications

The Hered GFR300 Air Filter Regulator offers a robust and efficient solution for air treatment in pneumatic systems. Its versatile features, reliable performance, and durable construction make it an ideal choice for businesses seeking to optimize their compressed air systems and improve overall operational efficiency.
